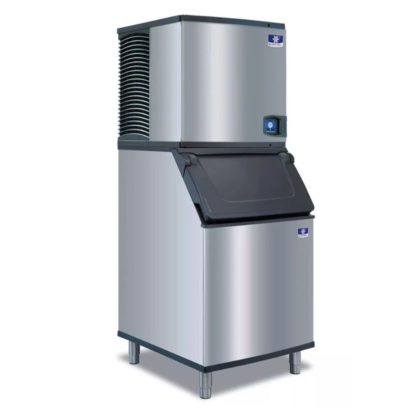

Manitowoc Ice IYT0750A/D570 715 lb Indigo NXT Half Cube Ice Maker w/ Bin – 532 lb Storage, Air Cooled, 208-230v/1ph

The Manitowoc Ice IYT0750A/D570 Indigo NXT half-cube ice maker produces as much as 715 pounds of ice per day with R410A refrigerant. Using an acoustical ice sensing probe, it monitors production conditions to ensure proper cube thickness. This machine is programmable by ice production volume and time, turning off when needed to conserve energy. On the front of the ice machine head, an icon-based touchscreen display enables users to adjust various settings.

Equipped with 24-hour diagnostics, the Manitowoc Ice IYT0750A/D570 ice machine provides preventive maintenance and important messages for constant operation. The DuraTech exterior resists fingerprints and dirt, keeping the unit clean. Maintenance is streamlined with a removable water trough, distribution tube, sensing probes, and curtain located behind a hinged front door. This insulated bin includes a built-in scoop holder, and the scoop’s molded lip ensures maximum scooping capability. For convenience when accessing ice, the bin’s door can be propped open.

Ice Maker Details

• Part of the Indigo NXT series
• 715-lb. maximum daily ice production
• 575-lb. AHRI-certified daily ice production
• Produces half-dice ice measuring ³/₈ in. x 1¹/₈ in. x ⁷/₈ in.
• Air-cooled, self-contained condensing unit
• Diagnoses and performs maintenance 24 hrs. per day
• Includes removable water trough, curtain, distribution tube, and sensing probes
• Swinging hinged front door for access to interior
• Touchscreen display
• Ice volume and time programmable
• Acoustical ice sensing probe regulates cube thickness
• Active Sense ensures consistent production in all conditions
• Exterior resists smudges and fingerprints
• Ambient temperature range: 40-119 degrees F
• Water temperature range: 40-90 degrees F
• Incoming water pressure: 20-80 PSI
• Average: 12,800 BTU
• Peak: 13,700 BTU
• Uses R410A refrigerant

Ice Bin Details

• 532-lb. application capacity
• Sanitary scoop with built-in knuckle and thumb guard
• Scoop includes molded retaining lip for maximum capacity
• Insulated door reduces condensation
• Door stays open for ease of scooping
• Easy-grip bin angled at 53 degrees
• DuraTech construction resists smudges

Dimensions & Utilities

• Ice Maker
  • 30 in. W x 24 in. D x 21.5 in. H
  • 11.1 A
  • 208-230 V/60 Hz/1 ph
• Ice Bin
  • 30 in. W x 34 in. D x 50 in. H

From The Manufacturer

Indigo NXT Series Ice Maker with Ice Bin, cube-style, air-cooled, self-contained condenser, 30″W x 24″D x 21-1/2″H, production capacity up to 715 lb/24 hours at 70°/50° (575 lb AHRI certified at 90°/70°), DuraTech exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR; Ice Bin: 30″W x 34″D x 50″H, with side-hinged front-opening door, side grips, AHRI certified 532 lb ice storage capacity (17.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF
