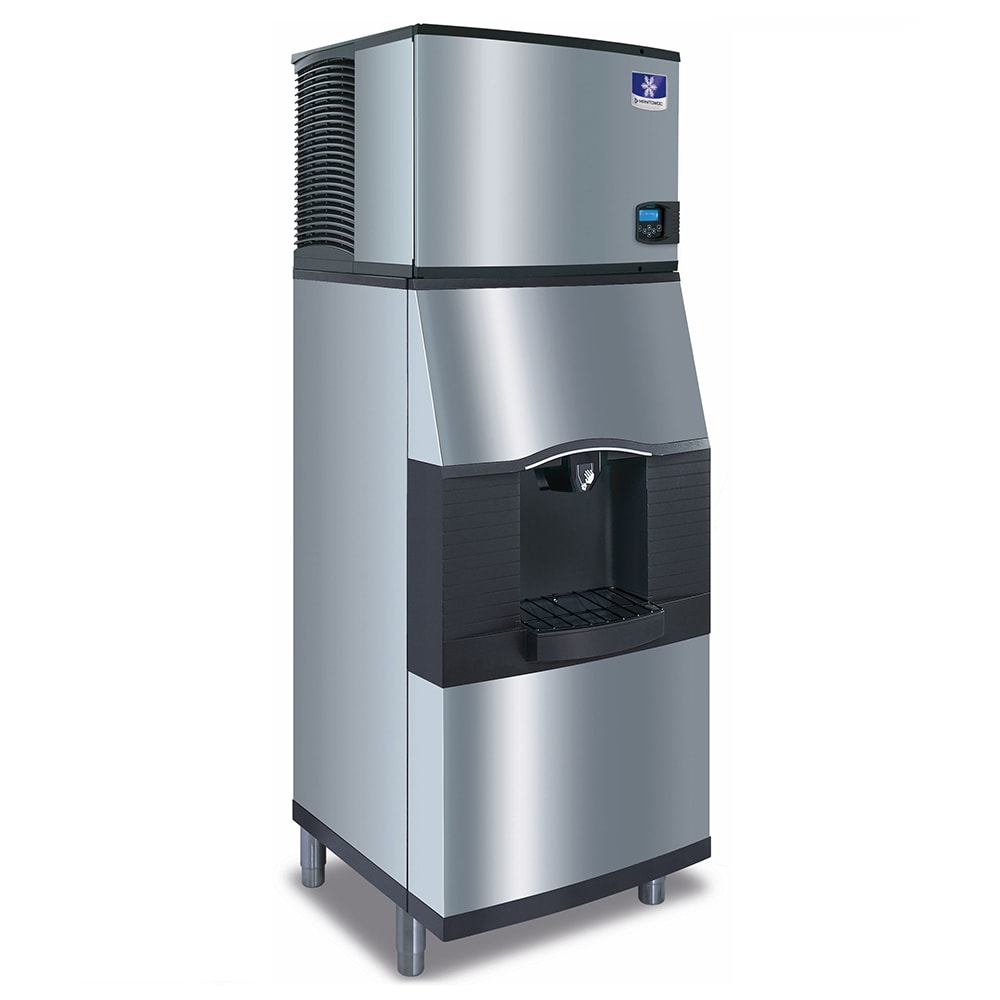

Manitowoc Ice IYT0620W/SFA192 560 lb Half Cube Ice Maker w/ Ice & Water Dispenser – 120 lb Storage, Bucket Fill, 115v

The Manitowoc IYT0620W-161/SFA192 Indigo NXT ice machine with dispenser has a storage capacity of 120 pounds, and it includes a water valve so guests can get ice and water. A drain pan collects excess ice, while a chute dispense mechanism prevents overflow. To break up ice, this unit has a built-in agitator. The head can make 560 pounds of ice every 24 hours, and its production can be determined by the time of day or volume.

This unit has a DuraTech coating over its stainless steel exterior, giving it a clean look by hiding stains. A hinged door on the head removes for access to internal components that are removable for cleaning. Major components that contact water have AlphaSan built in to slow scale growth between cleanings. Diagnostics run 24 hours to monitor the machine and alert the operator when issues arise. Manitowoc IYT0620W-161/SFA192 ice maker and dispenser has an easyTouch control panel.

Ice Machine Head

• 560-lb. ice production capacity
• 485-lb. AHRI-certified production capacity
• Control panel uses touch icons
• Ice production can be set by time of day or dispenser volume
• Hinged front door
• Removable components
• Resists bacteria growth between cleanings with AlphaSan antimicrobial
• 24-hr. diagnostics run to keep track of operating status
• Ice thickness is measured by a probe before it is released
• Clear coat called DuraTech is put on stainless steel to prevent it from looking dirty
• Produces half dice ice
• Air-cooled motor
• Uses R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• Average BTU per hour: 5,400
• Peak BTU per hour: 6,300
• 11.6 A, 3.87 kW
• 115 V/60 Hz/1 ph
• Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 22 in. W x 31.19 in. D x 75.5 in. H

Ice Dispenser

• Built-in water valve
• 120-lb. ice storage capacity
• Chute dispense mechanism prevents ice from spilling
• Built-in agitator
• Overflow ice is caught by the drain pan
• Hide smudges and fingerprints with a DuraTech coating
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

IYT-0620W: Indigo NXT Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 560 lb/24 hours at 70°/50° (485 lb AHRI certified at 90°/70°), DuraTech exterior, half dice size cubes, R410 refrigerant, NSF, cULus, CE

SFA-192: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 22″W x 31-3/16″D x 54″H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, fills containers up to 10-1/2″ high, stainless steel exterior with vinyl trim, accepts 22″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
