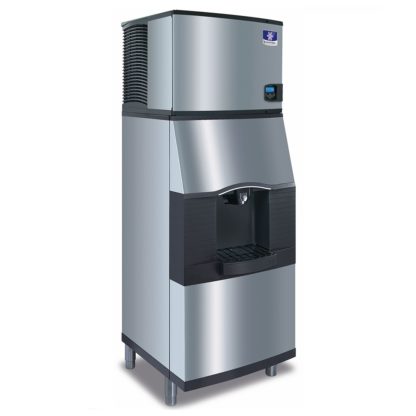

Manitowoc Ice IYT0500W/SPA312 535 lb Half Cube Ice Maker w/ Ice Dispenser – 180 lb Storage, Bucket Fill, 115v

The Manitowoc IYT0500W-161/SPA312 Indigo NXT ice machine with dispenser can make 535 pounds of half dice ice every 24 hours. An acoustical probe ensures the correct cube thickness before ice is released from the plate. Production can be set by the time of day or volume in the dispenser. Major components have AlphaSan, an antimicrobial agent built in to slow bacteria growth, while the easyTouch control panel simplifies use.

The dispenser can store 180 pounds of ice at a time. Its chute dispense mechanism prevents overflow, while excess ice is caught by the drain pan, and a built-in agitator breaks up clumps of ice. The Manitowoc IYT0500W-161/SPA312 ice machine with dispenser has a DuraTech clear coat over its stainless steel exterior to hide fingerprints and smudges.

Ice Machine Head

• 535-lb. ice production capacity
• 460-lb. AHRI-certified production capacity
• Control the unit with easyTouch control panel
• Ice production can be set to the time of day or volume in the bin
• Hinged front door
• Removable parts simplify cleanup
• AlphaSan antimicrobial technology slows bacteria growth
• 24-hr. diagnostics run constantly to monitor the unit’s status
• Acoustical probe measures ice thickness
• Clear coat over stainless steel maintains a clean look
• Produces half dice ice
• Water-cooled motor
• R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• Average BTU per hour: 3,800
• Peak BTU per hour: 6,000
• 10.8 A, 3.9 kW
• 115 V/60 Hz/1 ph
• Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 30 in. W x 32 in. D x 82 in. H

Ice Dispenser

• 180-lb. ice storage capacity
• Chute dispense mechanism reduces ice spilling
• Built-in agitator
• Drain pan catches ice overflow
• Fingerprints and smudges are hidden by the DuraTech clear coat
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

IYT-0500W: Indigo NXT Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30″W x 24″D x 21-1/2″H, production capacity up to 535 lb/24 hours at 70°/50° (460 lb AHRI certified at 90°/70°), DuraTech exterior, half dice size cubes, R410 refrigerant, NSF, cULus, CE

SPA-312: Vending Ice Dispenser, touchless lever, floor model, 30″W x 32″D x 82″H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22″ or 30″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
