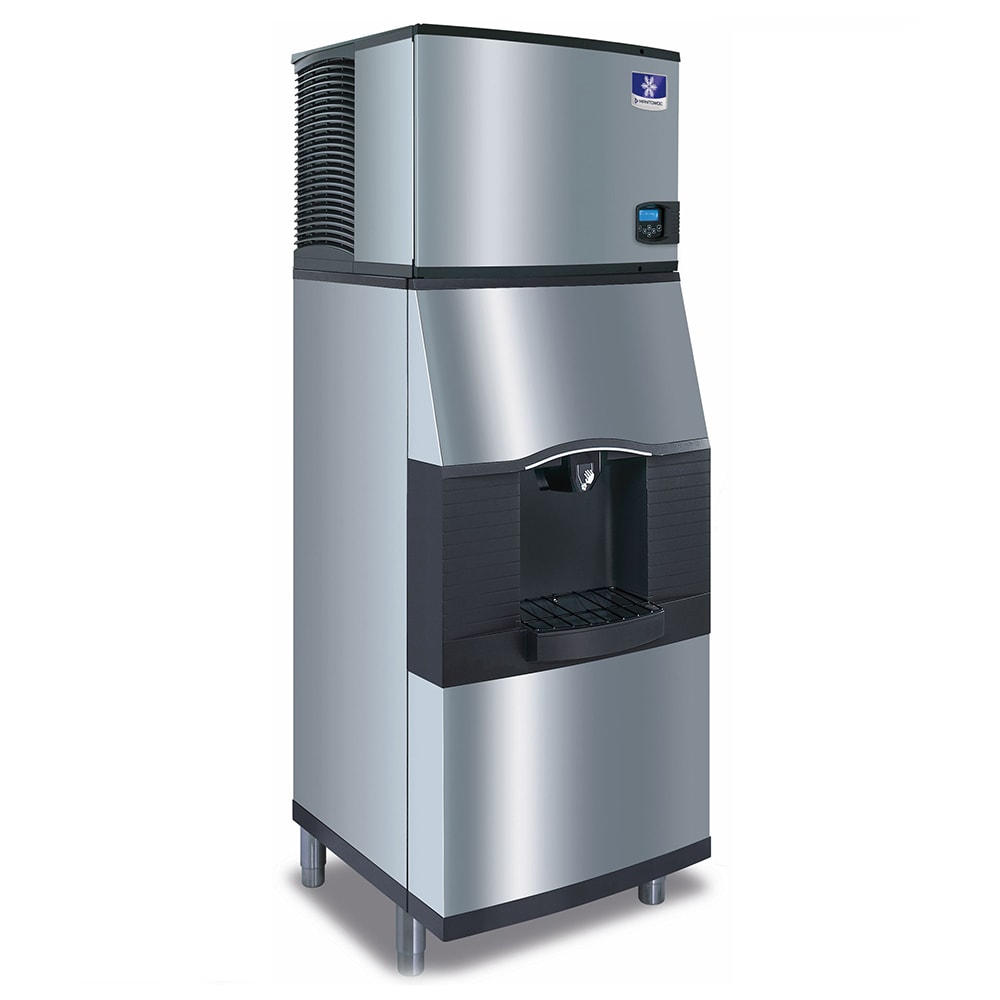

Manitowoc Ice IYT0500A/SPA312 550 lb Half Cube Ice Maker w/ Ice Dispenser – 180 lb Storage, Bucket Fill, 115v

The Manitowoc IYT0500A-161/SPA312 Indigo NXT ice machine with dispenser is constructed of heavy-duty stainless steel. A clear coat called DuraTech is put over the stainless steel to maintain a clean appearance. This unit is designed for dispensing ice in hotels and resorts. Ice overflow is prevented with a chute dispense mechanism, and the drain pan collects excess ice. The dispenser has a built-in agitator.

When issues arise, the 24-hour diagnostics will alert the operator through the control panel, which has icons to simplify identification. To ease cleaning, the major components are removable, and some have AlphaSan built in to prevent bacteria growth. The Manitowoc IYT0500A-161/SPA312 ice machine with dispenser can make 550 pounds of ice within 24 hours and store 180 pounds of ice.

Ice Machine Head

• 550-lb. ice production capacity
• 440-lb. AHRI-certified production capacity
• Touchscreen with straightforward icons
• Ice production can be set by volume or time of day
• Hinged front door
• Removable parts ease cleaning
• AlphaSan antimicrobial agent is built in to some components to slow bacteria growth
• Diagnostics run every 24 hrs. to monitor status
• Acoustical probe measures ice thickness before it is released from an evaporator plate
• Stainless steel exterior has a DuraTech clear coating to hide fingerprints
• Produces half dice ice
• Air-cooled motor
• R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• 3,800-6,000 BTU
• 11.5 A, 4.58 kW
• 115 V/60 Hz/1 ph
• Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 30 in. W x 32 in. D x 82 in. H

Ice Dispenser

• 180-lb. ice storage capacity
• Chute dispense mechanism minimizes spills
• Built-in agitator
• Drain pan collects overflow ice
• DuraTech clear coat hides smudges and fingerprints
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

IYT-0500A: Indigo NXT Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30″W x 24″D x 21-1/2″H, production capacity up to 550 lb/24 hours at 70°/50° (440 lb AHRI certified at 90°/70°), DuraTech exterior, half dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR

SPA-312: Vending Ice Dispenser, touchless lever, floor model, 30″W x 32″D x 82″H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22″ or 30″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
