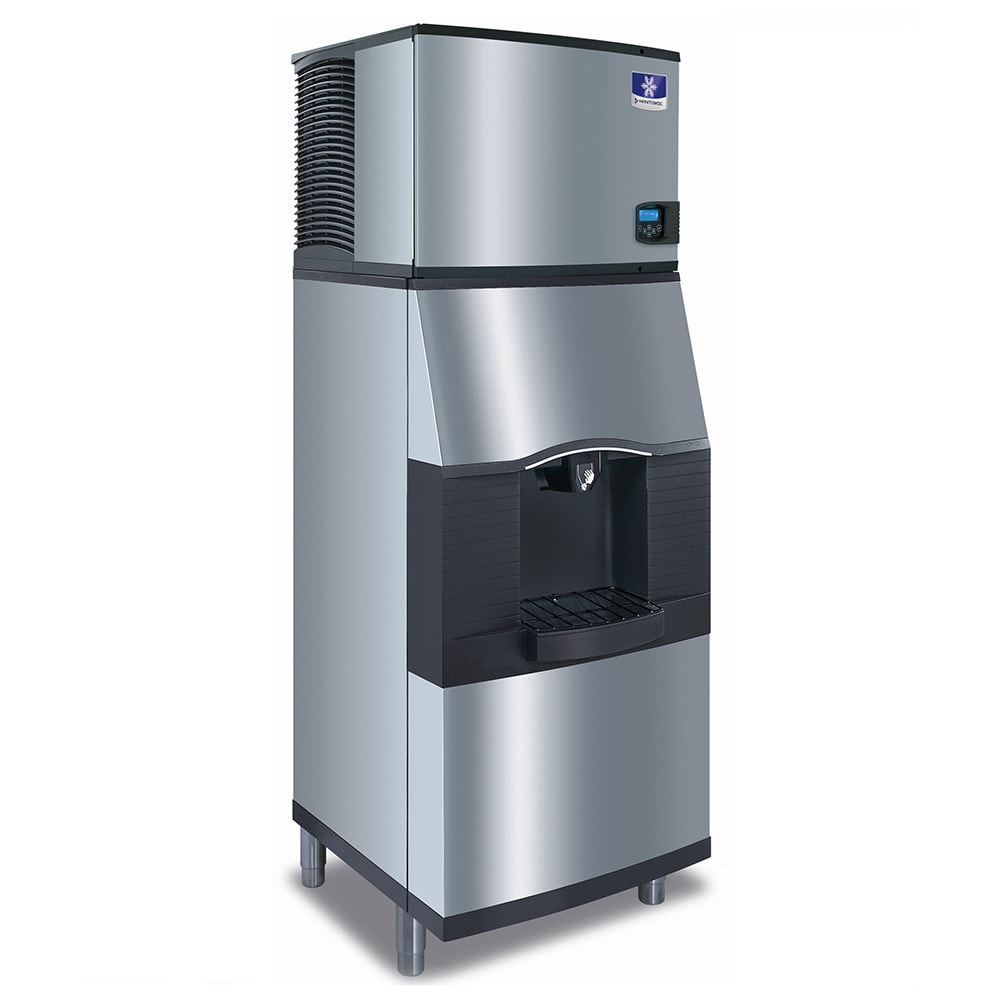

Manitowoc Ice IYT0500A/SFA292 550 lb Half Cube Ice Maker w/ Ice & Water Dispenser – 180 lb Storage, Bucket Fill, 115v

The Manitowoc IYT0500A-161/SFA292 Indigo NXT ice machine with dispenser is ideal for filling bags of ice in grocery stores and large resorts. It can produce 550 pounds of half dice ice and store 180 pounds. An acoustical probe checks ice thickness before releasing it, and ice production can be set by volume or time of day. A chute dispense mechanism prevents ice overflow, and a drain pan collects ice to prevent messes in the floor.

This unit is made of strong, durable stainless steel, and has a clear coat called DuraTech is over the stainless steel exterior to protect against smudges. A hinged front door on the head is removable for access to internal components for cleaning. A touch panel and icons simplify control. To keep up with operating status of the Manitowoc IYT0500A-161/SFA292 ice machine with dispenser, diagnostics run 24 hours.

Ice Machine Head

• 550-lb. ice production capacity
• 440-lb. AHRI-certified production capacity
• easyTouch control panel uses touchscreen and icons
• Volume or time of day ice production
• Hinged front door
• Some parts are removable for cleaning
• Components have built-in AlphaSan antimicrobial agent
• 24-hr. diagnostics run to keep up with operating status
• Ice thickness is monitored by an acoustical probe
• DuraTech coating hides fingerprints
• Produces half dice ice
• Air-cooled motor
• Uses R410A refrigerant
• Part of the Indigo NXT series
• Required ambient temperature range: 40-110 degrees F
• Required incoming water temperature range: 40-90 degrees F
• Required water pressure: 20-80 PSI
• 3,800-6,000 BTU
• 11.5 A, 4.58 kW
• 115 V/60 Hz/1 ph
• Ice cube dimensions: 0.375 in. x 1.125 in. x 0.875 in.
• Overall dimensions: 30 in. W x 32 in. D x 82 in. H

Ice Dispenser

• Built-in water valve
• 180-lb. ice storage capacity
• Chute dispense mechanism prevents ice spills
• Built-in agitator
• Ice overflow is collected in the drain pan
• DuraTech clear coat over the stainless steel exterior hides stains
• 1.6 A
• 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

IYT-0500A: Indigo NXT Series Ice Maker, cube-style, air-cooled, self-contained condenser, 30″W x 24″D x 21-1/2″H, production capacity up to 550 lb/24 hours at 70°/50° (440 lb AHRI certified at 90°/70°), DuraTech exterior, half dice size cubes, R410 refrigerant, NSF, cULus, CE, ENERGY STAR

SFA-292: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30″W x 32″D x 82″H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11″ high, stainless steel exterior with vinyl trim, accepts 22″ or 30″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
