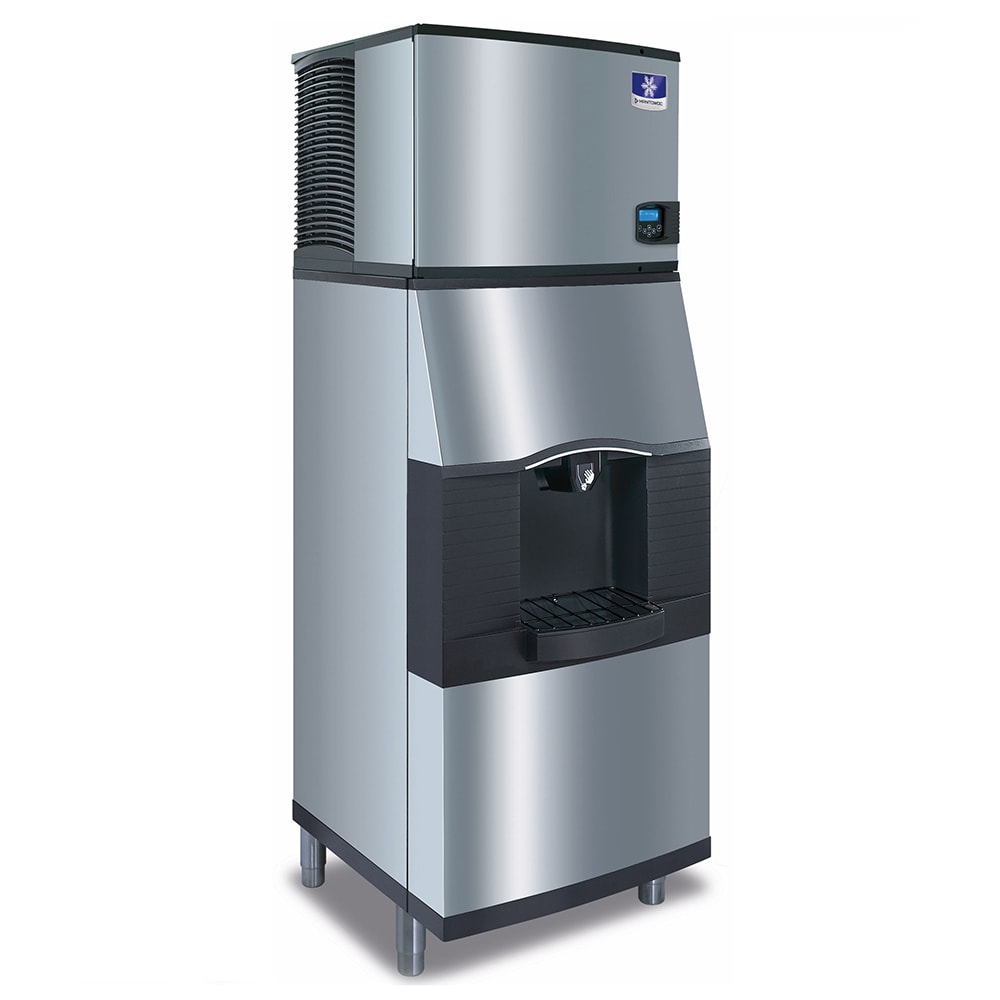

Manitowoc Ice IYT0420W/SPA162 490 lb Half Cube Ice Maker w/ Ice Dispenser – 120 lb Storage, Bucket Fill, 115v

The Manitowoc Ice IYT0420W-161/SPA162 ice maker and dispenser has a 490-pound daily production capacity and 120-pound storage capacity. Based on volume or time, the amount of ice it makes each day can be programmed. It uses an acoustic probe to measure ice thickness and check consistency between cycles. A touchscreen simplifies operation, and the unit runs preventive maintenance and diagnostics every 24 hours. For hotels and resorts, the dispenser accommodates buckets.

Ice Maker Details

• 490-lb. ice production capacity
• 425-lb. AHRI-certified ice production capacity
• Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Production amount is programmable based on volume or time
• Acoustical sensing probe ensures consistent ice thickness
• easyTouch touchscreen display
• 24-hr. preventive maintenance and diagnostic feedback
• Hinged, swing-out front food zone door
• Some parts are removable to facilitate cleaning
• AlphaSan antimicrobial technology on select components resists bacteria
• Corrosion-resistant DuraTech exterior avoids fingerprints

Ice Dispenser Details

• 120-lb. storage capacity
• Made to be used with buckets in hotels
• Rocking chute dispense mechanism prevents ice from spilling
• Oversized drain pan collects overflow ice
• Built-in agitator
• DuraTech exterior

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 10.6 A, 4.24 kW
  • 208-230 V/60 Hz/1 ph
• Dispenser
  • 22 in. W x 31 in. D x 54 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

IYT-0420W: Indigo NXT Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 490 lb/24 hours at 70°/50° (425 lb AHRI certified at 90°/70°), DuraTech exterior, half-dice size cubes, R410A, NSF, cULus, CE

SPA-162: Vending Ice Dispenser, touchless lever, floor model, 22″W x 31-3/16″D x 54″H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
