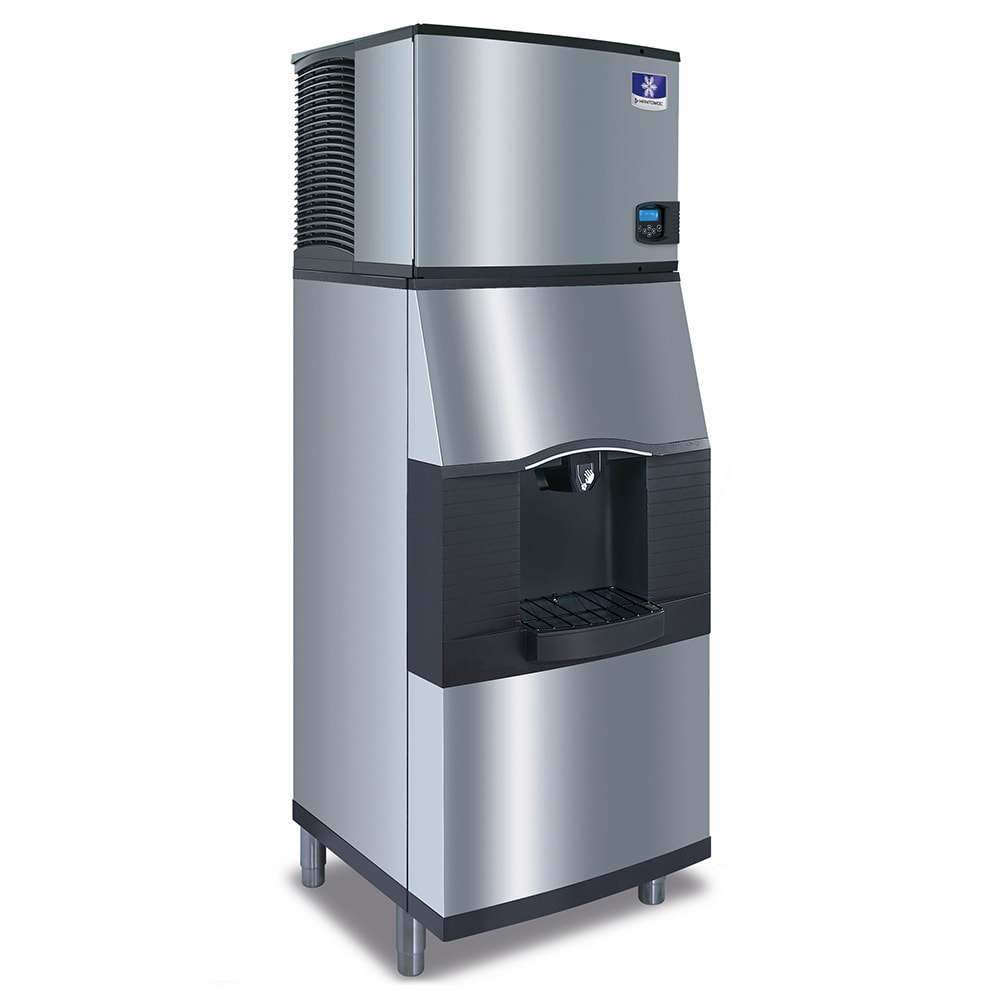

Manitowoc Ice IYT0420W/SFA192 490 lb Half Cube Ice Maker w/ Ice & Water Dispenser – 120 lb Storage, Bucket Fill, 115v

The Manitowoc Ice IYT0420W-161/SFA192 ice maker with dispenser produces as much as 490 pounds of ice in 24 hours, though operators can program this amount to best fit their application. It makes half-dice ice, measuring each batch to ensure a consistent thickness. A touchscreen display simplifies operation, while preventive maintenance and diagnostic feedback run 24 hours to keep operators informed about the unit. Made for use with large containers, the dispenser accommodates vessels as tall as 10.5 inches.

Ice Maker Details

• 490-lb. ice production capacity
• 425-lb. AHRI-certified ice production capacity
• Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Programmable ice production
• Acoustical sensing probe checks ice thickness
• easyTouch touchscreen display
• 24-hr. preventive maintenance and diagnostic feedback
• Hinged front door for access to the food zone
• Some parts are removable for cleaning
• AlphaSan antimicrobial agent slows bacteria growth
• DuraTech exterior resists corrosion and hides smudges

Ice Dispenser Details

• 120-lb. storage capacity
• Compatible with containers as tall as 10.5 in.
• Rocking chute dispenser contains ice to prevent spills
• Oversized drain pan catches overflowing ice
• Built-in agitator
• DuraTech clear coat reduces fingerprint visibility

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 10.6 A, 4.24 kW
  • 208-230 V/60 Hz/1 ph
• Dispenser
  • 22 in. W x 31 in. D x 54 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

IYT-0420W: Indigo NXT Series Ice Maker, cube-style, water-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 490 lb/24 hours at 70°/50° (425 lb AHRI certified at 90°/70°), DuraTech exterior, half-dice size cubes, R410A, NSF, cULus, CE

SFA-192: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 22″W x 31-3/16″D x 54″H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, fills containers up to 10-1/2″ high, stainless steel exterior with vinyl trim, accepts 22″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
