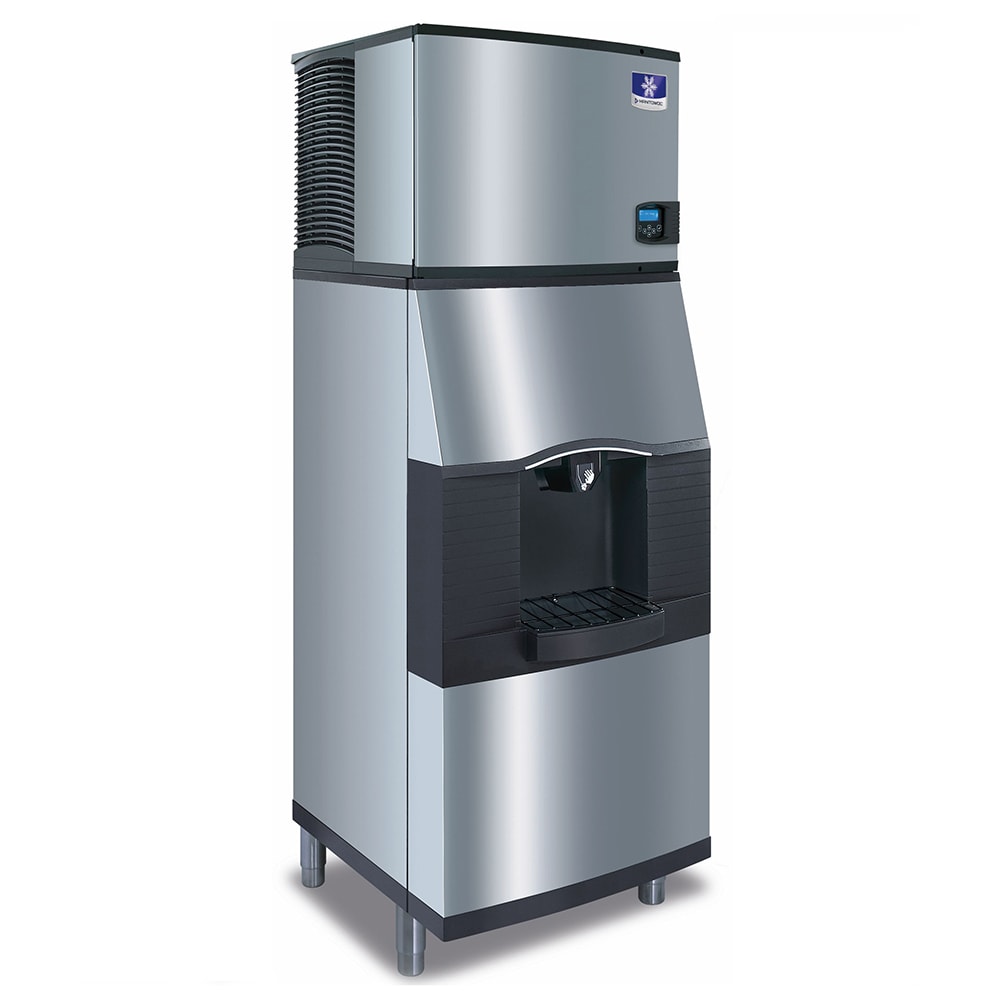

Manitowoc Ice IYT0420A/SPA162 460 lb Half Cube Ice Maker w/ Ice Dispenser – 120 lb Storage, Bucket Fill, 115v

The Manitowoc Ice IYT0420A-161/SPA162 ice maker and dispenser can produce 460 pounds of half-dice ice in 24 hours. This ice measures 0.375 in by 1.125 inches by 0.875 inch for use with soft drinks and mixed drinks. An acoustical probe measures ice before it drops into the dispenser, checking for consistent thickness.

The Manitowoc Ice IYT0420A-161/SPA162 ice maker and dispenser is made for hotels and resorts since it accommodates buckets under its chute. This chute prevents ice from spilling out, while the drain pan is oversized to catch more overflow than other pans. With a corrosion-resistant DuraTech exterior, the unit hides smudges.

Ice Maker Details

• 460-lb. ice production capacity
• 375-lb. AHRI-certified ice production capacity
• Half-dice ice size: 0.375 in. x 1.125 in. x 0.875 in.
• Programmable production based on ice volume or time of day
• Acoustical ice sensing probe measures thickness through multiple cycles for consistency
• easyTouch touchscreen display
• 24-hr. diagnostics and preventive maintenance
• Hinged front door swings out for access to food zone components
• Some parts are removable to simplify cleanup
• AlphaSan antimicrobial agent slows bacteria growth
• Corrosion-resistant DuraTech exterior

Ice Dispenser Details

• 120-lb. storage capacity
• For bucket dispensing in hotels and resorts
• Rocking chute dispense mechanism reduces spilled ice
• Oversized drain pan catches ice overflow
• Built-in agitator
• DuraTech exterior

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 208-230 V/60 Hz/1 ph, hardwired
• Dispenser
  • 22 in. W x 31 in. D x 54 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

IYT-0420A: Indigo NXT Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 460 lb/24 hours at 70°/50° (375 lb AHRI certified at 90°/70°), DuraTech exterior, half-dice size cubes, R410A, NSF, cULus, CE, ENERGY STAR

SPA-162: Vending Ice Dispenser, touchless lever, floor model, 22″W x 31-3/16″D x 54″H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
