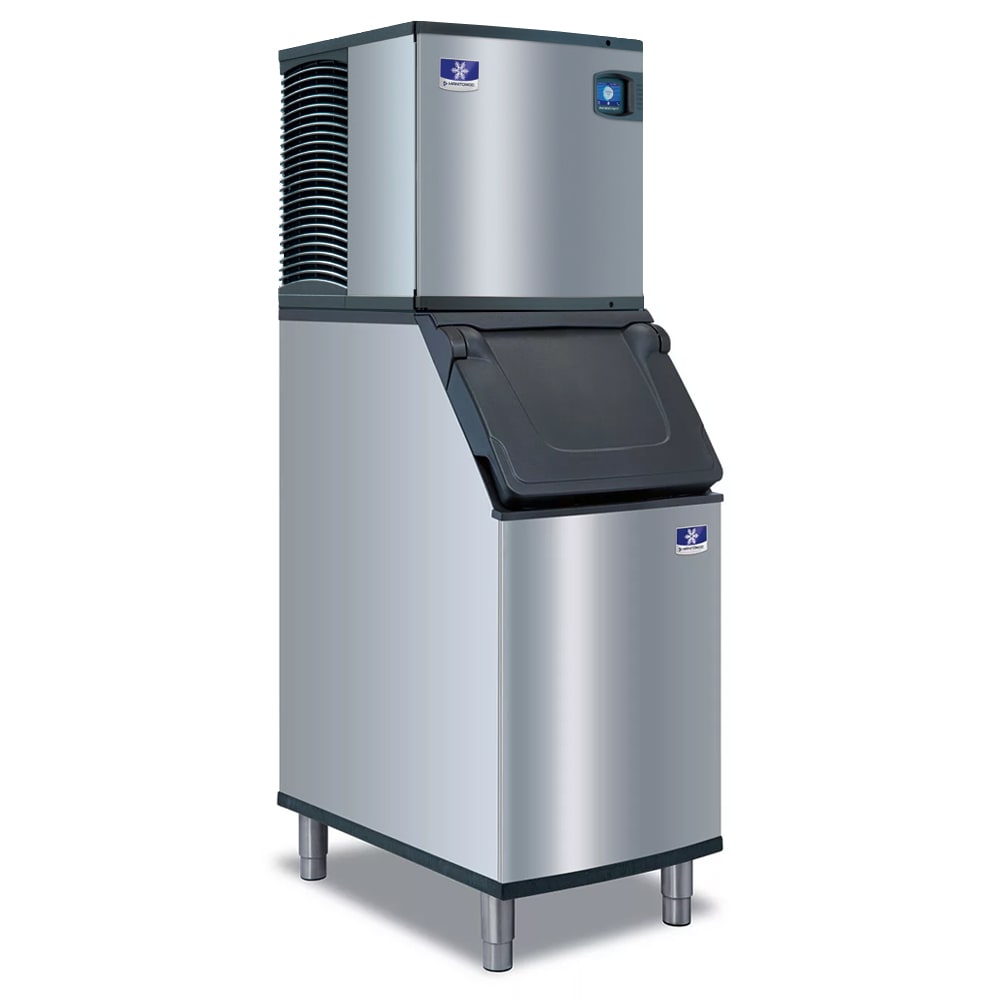

Manitowoc Ice IYT0420A/D420 460 lb Indigo NXT Half Cube Ice Maker w/ Bin – 383 lb Storage, Air Cooled, 115v

The Manitowoc Ice IYT-0420A-161/D-420 Indigo NXT ice maker with bin can provide a 460-pound maximum daily output. Ice thickness is measured by an acoustical sensing probe, ensuring each cycle is uniform. Through the control system, preventive maintenance provides users with diagnostic feedback. If there is an issue in the foodzone, the operator can easily access the area through the swing-out front door. This access design also simplifies cleanup, and some of the parts are removable and made with AlphaSan antimicrobial.

A 383-pound-capacity bin is included with the Manitowoc Ice IYT-0420A-161/D-420 ice maker. Scooping ice is simple since a 5.3-pound-capacity scoop comes with the unit; its retaining lip holds ice in the scoop. The knuckle and thumb guard does not allow hands to come in contact with the ice, preventing cross contamination. When the operator scoops ice, the self-latching door stays open. Users can easily reach the bottom of the bin since the door is set at a 53-degree angle. Insulated with foam, the door resists condensation buildup.

Ice Machine

• Part of the Indigo NXT series
• 460-lb. maximum daily ice production
• 375-lb. AHRI-certified ice production
• Makes half cube ice
• Ice size: 0.375 in. x 1.125 in. x 0.875 in.
• easyTouch display system
• Programmable ice production based on time or volume
• Acoustical sensing probe measures ice thickness and consistency
• 24-hr. preventive maintenance and diagnostic feedback
• Hinged, swing-out foodzone door
• Removable distribution tube, curtain, water probe, water pump, and water trough
• AlphaSan antimicrobial agent on the key components slows bacteria growth
• DuraTech exterior resists corrosion and smudges
• Uses R410A refrigerant
• Ambient air should be between 40-110 degrees F
• Incoming water should be between 40-90 degrees F
• 3,800-6,000 BTU

Ice Storage Bin

• 383-lb. application capacity
• 310-lb. AHRI-certified capacity
• 5.3-lb. ice scoop has an ergonomic design
• Integrated scoop guard keeps hands separate from ice
• Molded-in scoop retaining lip
• Side grips on the door open it from any angle
• Self-latching door stays open when operators scoop ice
• 53-degree door angle provides access to the bin bottom
• Foam-insulated door prevents condensation buildup
• Arctic blue, polyurethane interior liner

Dimensions & Utilities

• Ice machine: 22 in. W x 34 in. D x 71.5 in. H
• Storage bin: 22 in. W x 34 in. D x 50 in. H
• 11.3 A, 5.4 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

IYT-0420A Ice Maker: Indigo NXT Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 460 lb/24 hours at 70°/50° (375 lb AHRI certified at 90°/70°), DuraTech exterior, half-dice size cubes, R410A, NSF, cULus, CE, ENERGY STAR, 115v/60/1ph; D-420 Ice Bin: Ice Bin, 22″W, 34″D x 50″H, with side-hinged front-opening door, side grips, AHRI certified 383 lb ice storage capacity (12.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF

*Image may not depict product color, inclusions or accessories.

Documents:

• Spec Sheet
