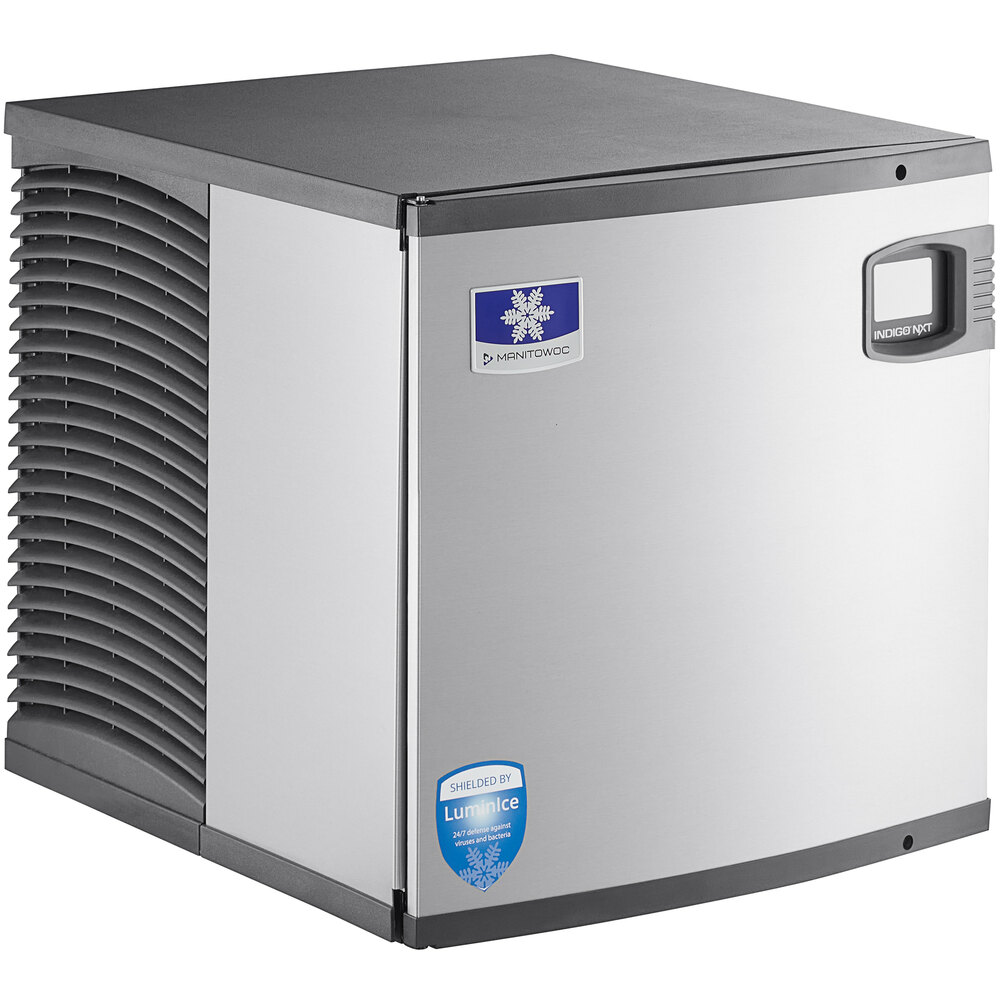

Manitowoc Ice IYT0420A 22″ Indigo NXT Half Cube Ice Machine Head – 460 lb/24 hr, Air Cooled, 115v

The air-cooled Manitowoc IYT-0420A Indigo NXT ice machine head is self-contained, so it is easy to install and maintain. When the operating air temperature is at 70 degrees Fahrenheit, the unit can produce up to 470 pounds of half-dice ice in 24 hours. Navigating the controls is simple since the easyTouch display uses easy-to-see icons and touch screen operation. To suit different applications, the ice machine head’s operating times and daily production levels can be programmed with custom settings.

Diagnostics provide preventive maintenance and feedback for daily use. The hinged door’s swing-out design allows operators to access the Manitowoc IYT-0420A Indigo NXT ice machine head’s food zone. Some of the integral components can be removed for cleaning, and select components are made with AlphaSan antimicrobial agent to slow the growth of bacteria between cleanings.

Product Details

• Can produce 470 lbs. of ice at 70 degrees F air temperature and 50 degrees F water temperature
• Can produce 375 lbs. of ice at 90 degrees F air temperature and 70 degrees F water temperature
• Half-dice ice size: ³/₈ in. x 1¹/₈ in. x ⁷/₈ in.
• Condensing unit is air-cooled and self-contained
• R-410A refrigerant maintains the cold temperatures
• Hinged swing-out door provides convenient access to the food zone
• Water probe, water pump, water trough, distribution tube, and curtain can be removed for cleaning
• AlphaSan antimicrobial slows the growth of bacteria on key components
• DuraTech metal exterior resists corrosion and hides fingerprint marks
• Ice storage bin is sold separately
• 3,800 BTU

Intelligent Operation

• Touch screen operation and icons on the easyTouch display offer simple navigation
• Daily volume and operating times can be programmed to fit different applications
• Ice sensing probe ensures operation is reliable in any environment
• Diagnostics offer preventive maintenance and feedback

Dimensions & Utilities

• 22 in. W x 24¹/₂ in. D x 21¹/₂ in. H
• 11.3A, 5.4 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Indigo NXT Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 460 lb/24 hours at 70°/50° (375 lb AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech exterior, half-dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR

*Image may not depict product color, inclusions or accessories.

Documents:

• Spec Sheet
