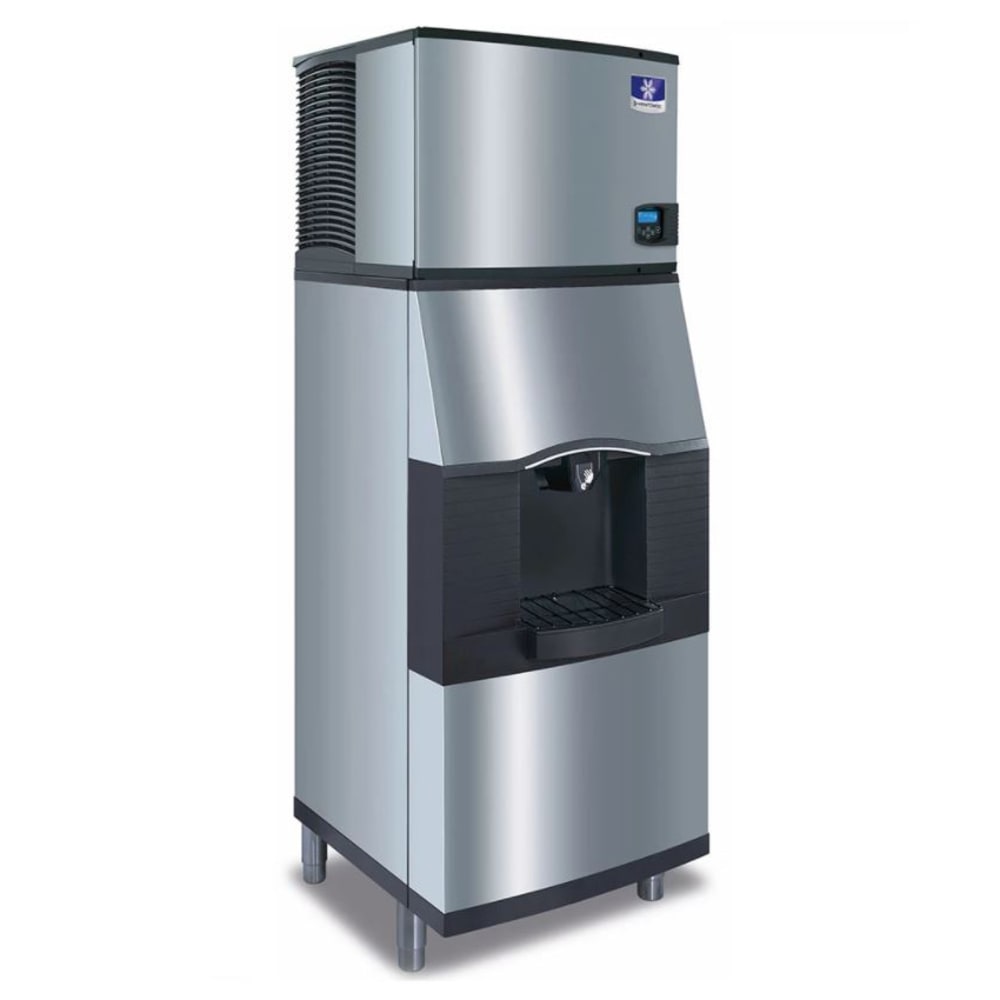

Manitowoc Ice IYT0300W/SFA292 310 lb Half Cube Ice Maker w/ Ice Dispenser – 180 lb Storage, Bucket Fill, 115v

Producing half-dice cube ice, the Manitowoc Ice IYT0300W-161/SFA292-161 ice maker with dispenser is a good option for restaurants and hotels that need to provide ice to consumers using a sanitary, self-serviceable method. As much as 180 pounds of ice can be stored and dispensed directly from the bin using the built-in ice dispenser with water valve and push-button control. To access its components, the dispenser has a removable door.

The Manitowoc Ice IYT0300W-161/SFA292-161 ice machine head with dispensing bin operates with a self-contained condenser and is water cooled for efficiency. Users can fit containers as tall as 11 inches under the ice dispenser, which vends using a permanently lubricated motor. The ice machine head implements 24-hour intelligent diagnostics so users can keep up with routine maintenance and identify potential issues before the machine incurs damage.

Ice Machine Head Details

• Indigo NXT series
• Water cooled
• Produces half-dice cube ice
• Ice cube size: ³/₈ in. W x 1¹/₈ in. D x ⁷/₈ in. H
• 310-lb. maximum daily ice production
• 260-lb. AHRI-certified daily ice production
• Self-contained condenser
• DuraTech exterior maintains a shiny finish
• Sealed with a clear coat to resist fingerprints and smudges
• Space-saving footprint is 30 in. wide
• 24-hour feedback provided by intelligent diagnostics
• Acoustic ice sensing probe
• easyTouch display with icon-based interface
• Ice production can be programmed to meet demand
• Front access foodzone door is hinged
• Removable sensing probes, curtain, water trough, and distribution tube
• Some interior components are enhanced with AlphaSan antimicrobial
• Operates with R404A refrigerant
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 4,600-BTU heat displacement

Ice Dispenser Details

• Floor model
• Built-in ice vending dispenser with water valve and push button
• Vends ice into containers as tall as 11 in.
• Permanently lubricated dispenser motor
• Removable dispenser door enables access to components
• 180-lb. storage capacity
• 17.9 cu.-ft. AHRI certified capacity
• Compatible with top-mounted ice makers
• Durable stainless steel exterior with vinyl trim

Dimensions & Utilities

• Ice Machine Head
  • 30 in. W x 24¹/₂ in. D x 16¹/₂ in. H
  • 7.9 A, 4.74 kW
  • 115 V/60 Hz/1 ph
• Ice Dispenser
  • 30 in. W x 32 in. D x 60¹/₂ in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA-15P plug

From The Manufacturer

Indigo NXT Series Ice Maker w/ Vending Ice Dispenser, cube-style, water-cooled, self-contained condenser, 30″W x 24-1/2″D x 16-1/2″H, production capacity up to 310 lb/24 hours at 70°/50° (260 lb AHRI certified at 90°/70°), DuraTech exterior, half-dice size cubes, R404a refrigerant, NSF, cULus, CE; Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30″W x 32″D x 82″H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11″ high, stainless steel exterior with vinyl trim, accepts 22″ or 30″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
