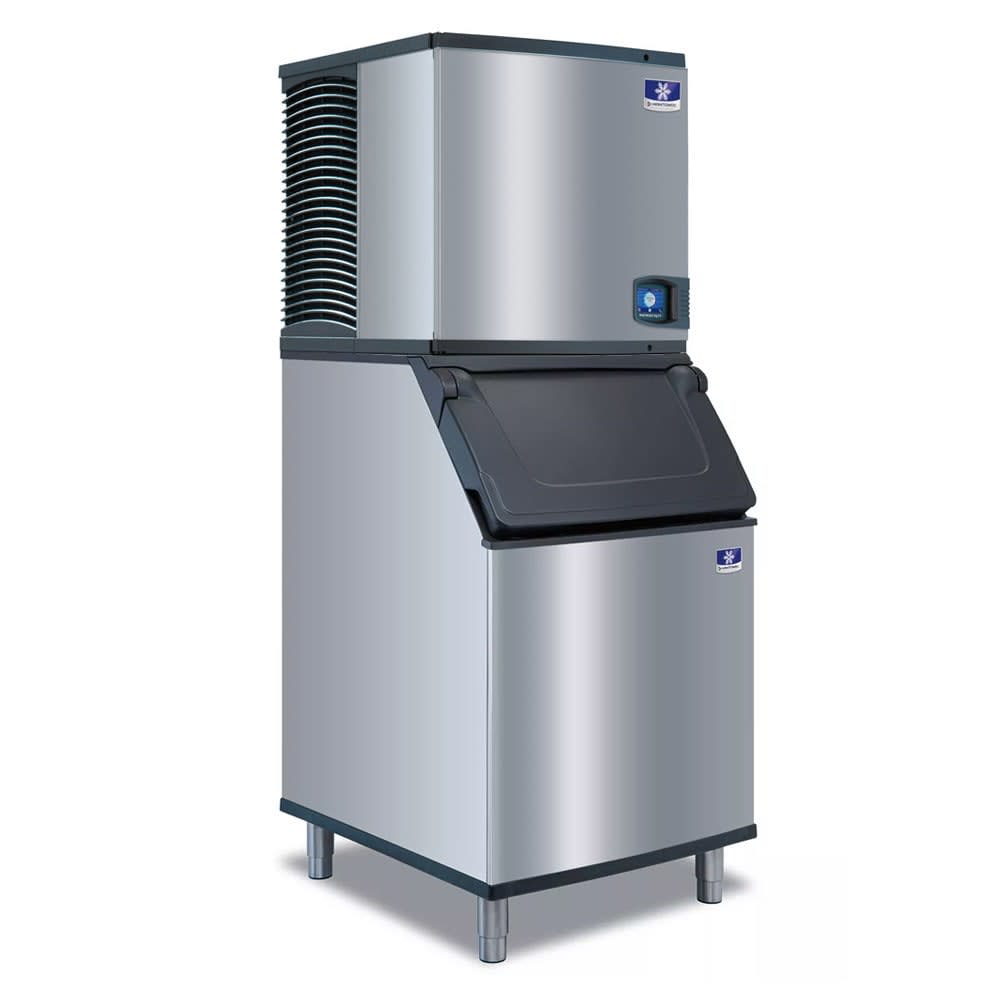

Manitowoc Ice IDT1200A/D570 1196 lb Indigo NXT Full Cube Ice Maker w/ Bin – 532 lb Storage, Air Cooled, 208-230v/1ph

In 24 hours, the Manitowoc Ice IDT-1200A/D-570 Indigo NXT ice maker with bin can produce 1,196 pounds of full-cube ice. Each cube measures 0.875 inch by 0.875 inch by 0.875 inch and melts slowly, but since it is so large, it will not cool liquids as quickly as smaller ice types. An acoustical probe measures ice thickness, monitoring consistency between cycles. Some interior components are removable to facilitate cleaning, and integral parts are made with an antimicrobial agent that slows bacteria growth.

The Manitowoc Ice IDT-1200A/D-570 ice machine with bin has a 532-pound storage capacity. Its bin liner is made of polyurethane, while its exterior is constructed of stainless steel with a clear coating that resists corrosion. Foam insulation in the bin door prevents ice from melting quickly. Grips in the door’s center, right side, and left side enable opening from any angle. An ice scoop with a 5.3-pound capacity and guards that eliminate contact between hands and ice is included.

Ice Maker Details

• Part of the Indigo NXT series
• 1,196-lb. daily ice production capacity
• 950-lb. AHRI-certified daily ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Acoustical ice sensing probe measures ice thickness to verify consistency
• Programmable ice production can be based on volume or time of day
• easyTouch display has information on service, energy, and menu selections
• 24-hr. preventive maintenance with diagnostic feedback
• Hinged, swing-out food zone door provides convenient access to the components
• Removable parts aid in cleanup
• AlphaSan antimicrobial protection minimizes bacteria growth
• DuraTech clear coating over the stainless steel exterior is rust proof
• Air-cooled motor
• Uses R410A refrigerant
• 16,200 average BTU; 19,100 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Bin Details

• 532-lb. application capacity
• 17.9-cu.-ft. AHRI-certified capacity
• Foam-insulated door retains cold air to slow melting ice
• Side door grips enable opening from various angles
• Self-latching door design stays open when scooping
• 5.3-lb. ice scoop capacity
• Built-in thumb and knuckle guard in the scoop shields ice from hands
• Blue polyurethane bin liner
• DuraTech exterior

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24.5 in. D x 29.5 in. H
  • 14.2 A, 4.8 kW
  • 115 V/60 Hz/1 ph
• Bin
  • 30 in. W x 34 in. D x 50 in. H

From The Manufacturer

Indigo NXT Series Ice Maker with Ice Bin, cube-style, air-cooled, self-contained condenser, 30″W x 24-1/2″D x 29-1/2″H, production capacity up to 1196 lb/24 hours 70°/50° (950 lb AHRI certified at 90°/70°), DuraTech exterior, regular dice size cubes, NSF, cULus, CE; Ice Bin: 30″W x 34″D x 50″H, with side-hinged front-opening door, side grips, AHRI certified 532 lb ice storage capacity (17.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF

*Image may not depict product color, inclusions or accessories.
