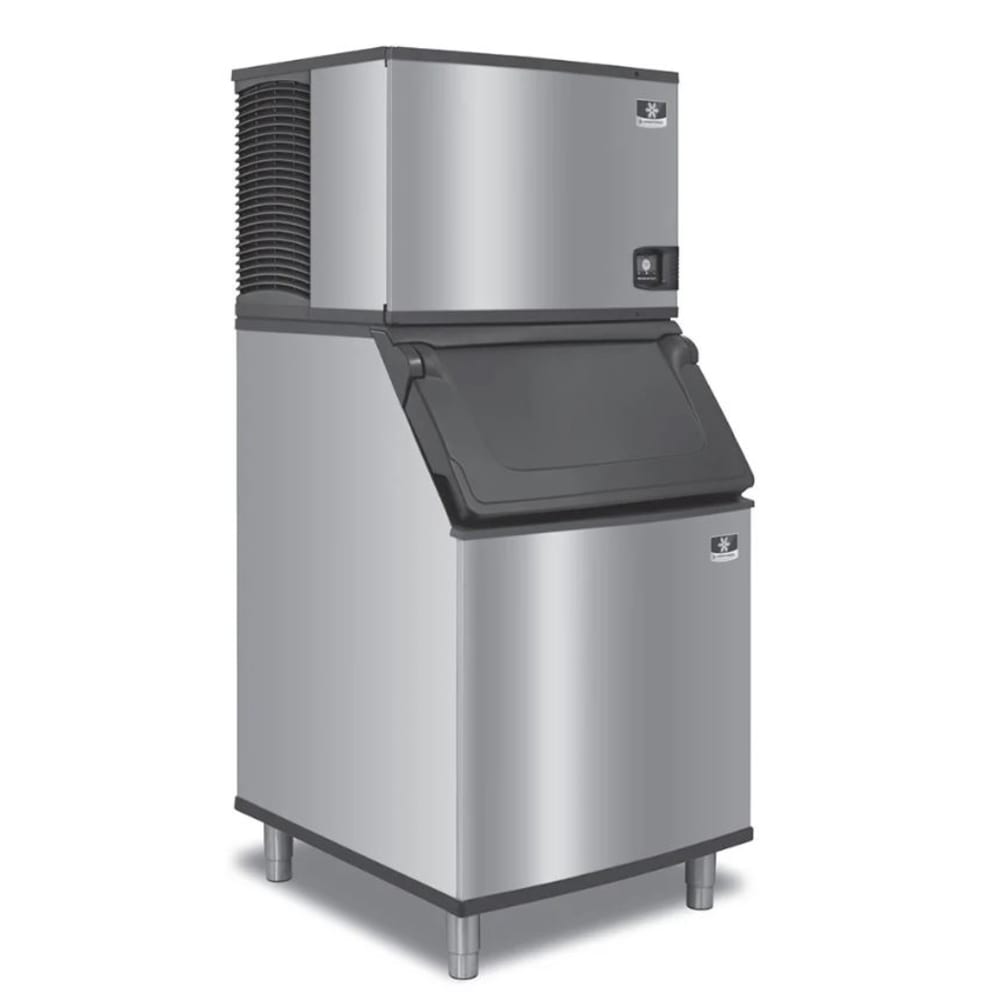

Manitowoc Ice IDT0750W-261/D570 Description
In a day, the Manitowoc Ice IDT0750/D570 ice maker and bin can produce 703 pounds of full-cube dice ice. So operators can choose when and how much it makes that day, it is programmable. The machine is controlled by a touchscreen on the front, and users can click on icons to view the various settings. When the self-diagnostics find a potential problem, alerts will show up on the display with maintenance recommendations.
The Manitowoc Ice D570 ice bin can hold 532 pounds of ice, storing it for peak business hours. So users can comfortable reach down into the bin, the lid is angled 53 degrees, and a self-latching mechanism holds the bin door open while users are scooping. To keep ice pure, the ice scoop has a built-in guard around the knuckle and thumb, and so the scoop’s handle stays out of the ice, a scoop holder is integrated into the bin.
When cleaning the Manitowoc Ice IDT0750 ice machine, operators can access the foodzone through the front, and once the front panel is swung open, they can then remove foodzone components for thorough cleaning. Several of these parts are built with AlphaSan, an antimicrobial agent that slows mold growth. The exterior of both the ice maker and ice bin are covered in a clear coat of DuraTech, and this material is fingerprint resistant.
Ice Machine Details
- Part of the Indigo NXT series
- 703-lb. maximum daily ice production
- 600-lb. AHRI-certified daily ice production
- Programmable production levels based on daily volume or time of day
- Dice ice size: 7/8 in. x 7/8 in. x 7/8 in.
- easyTouch display with intuitive, icon-based navigation
- Foodzone is accessible through a hinged door on the front
- Removable curtain, water trough, distribution tube, and sensing probe
- AlphaSan antimicrobial protection in key components
- System continuously monitors itself for problems and provides diagnostic feedback
- Sensing probe improves ice consistency
- DuraTech exterior resists corrosion
- Quiet, water-cooled condenser uses R410 refrigerant
- 12,800 average BTU; 13,700 peak BTU
Bin Details
- 532-lb. application capacity
- AHRI-certified 17.9-cu.-ft. interior
- DuraTech exterior
- Door stays open for convenient scooping
- Artic Blue polyurethane liner
- Ice scoop has a guard over the thumb and knuckle
- Scoop’s retaining lip can hold approximately 5.3 lbs. at once
- Holder stores the scoop above the ice
Ideal Operating Conditions
- Ambient temperature: 40-119 degrees F
- Incoming water temperature: 40-90 degrees F
- Water pressure: 20-80 PSI
- Clearances: 8 in. on top, 8 in. on sides, 5 in. on back
Dimensions & Utilities
- Ice machine: 30.0 in. W x 24.0 in. D x 21.5 in. H
- Ice bin: 30 in. W x 34 in. D x 50 in. H
- 7.9 A, 4.07 kW
- 208-230 V/60 Hz/1 ph
From The Manufacturer
Indigo NXT Series Ice Maker w/ Bin, cube-style, water-cooled, self-contained condenser, 30″W x 24″D x 21-1/2″H, production capacity up to 703 lb/24 hours at 70°/50° (600 lb AHRI certified at 90°/70°), DuraTech exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE; Ice Bin: 30″W x 34″D x 50″H, with side-hinged front-opening door, side grips, AHRI certified 532 lb ice storage capacity (17.9 cu. ft.), for top-mounted ice maker, Duratech exterior, NSF
*Image may not depict product color, inclusions or accessories.
