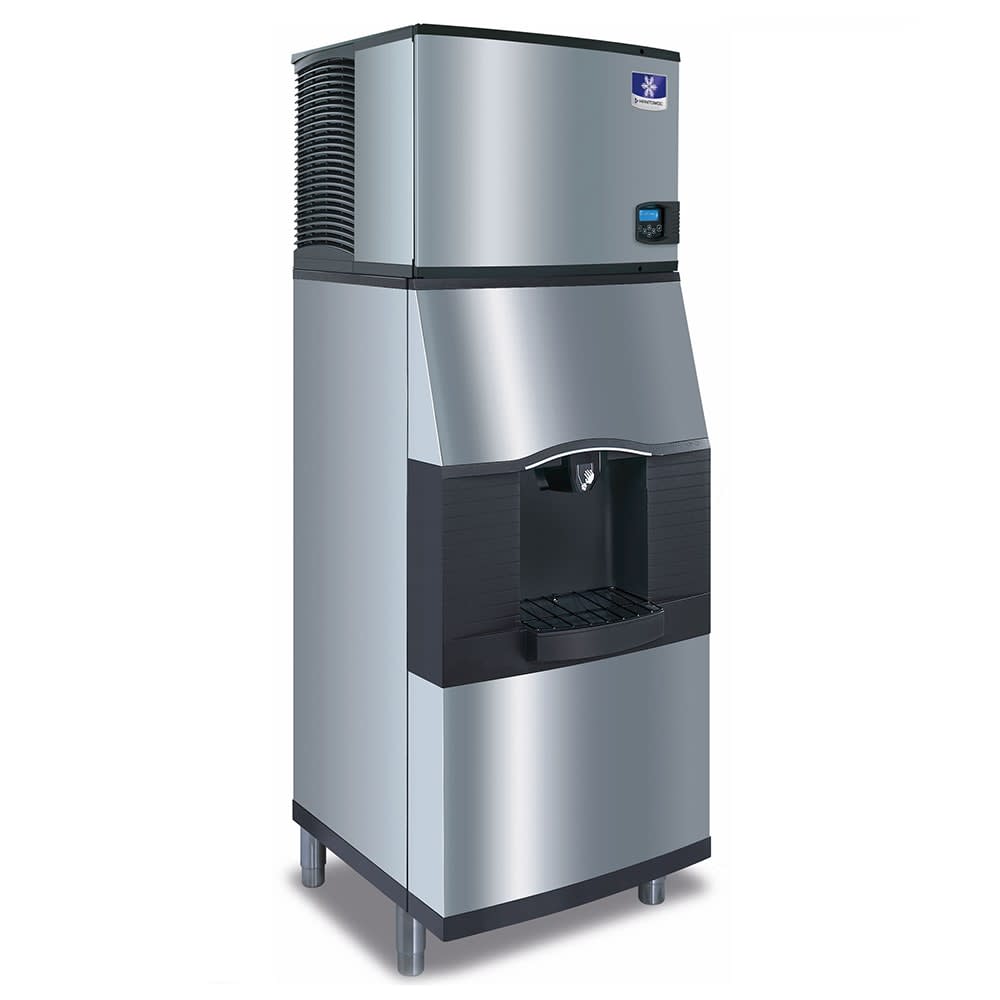

Manitowoc Ice IDT0620A/SPA162 560 lb Full Cube Ice Maker w/ Ice Dispenser – 120 lb Storage, Bucket Fill, 115v

Depending on incoming water and air temperature, the Manitowoc Ice IDT0620A-161/SPA162 Indigo NXT ice maker with dispenser can make 560 pounds in 24 hours. It produces full-cube ice that measures 0.875 inch by 0.875 inch by 0.875 inch, an ideal size for regular drinks (it does not break down well for products like smoothies). An acoustical probe checks ice for consistent thickness between multiple cycles. Operators can check service or energy information on the touchscreen display and access internal components through the swing-out food zone door.

Perfect for hotels, motels, and resorts, the Manitowoc Ice IDT0620A-161/SPA162 ice machine with dispenser is compatible with tall buckets. With a rocking chute mechanism and a large drain pan, the dispenser protects staff from dangerous puddles on the floor. As much as 120 pounds can fit in the dispenser, and the clear-coated exterior is durable and corrosion resistant.

Ice Maker Details

• Part of the Indigo NXT series
• Produces full-cube ice for drinks
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• 560-lb. daily ice production capacity
• 450-lb. AHRI-certified daily ice production capacity
• Acoustical sensing probe measures ice thickness, ensuring each cycle is consistent
• Ice production is programmable based on volume or when the unit is operating
• easyTouch display with energy, service, and menu setup information
• 24-hr. preventive maintenance and diagnostics
• Swing-out hinged door to the food zone ensures components are accessible
• Removable water trough, distribution tube, sensing probes, and curtain
• AlphaSan antimicrobial agent on select components resists bacteria
• Stainless steel exterior is heavy duty
• Exterior is finished with a fingerprint-hiding DuraTech clear coat that resists rust
• Air-cooled motor
• Uses R410A refrigerant
• 5,400 average BTU; 6,300 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Ice Dispenser Details

• 120-lb. capacity
• Compatible with buckets in hotels and resorts
• Rocking chute mechanism helps prevent spilling during dispensing
• Drain pan is oversized, catching most overflow
• Built-in agitator prevents ice buildup
• DuraTech exterior

Dimensions and Utilities

• Ice Maker
  • 22 in. W x 24.5 in. D x 21.5 in. H
  • 12.2 A, 5.18 kW
  • 115 V/60 Hz/1 ph
• Ice Dispenser
  • 22 in. W x 31.19 in. D x 54 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug

From The Manufacturer

IDT-0620A: Indigo NXT Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 560 lb/24 hours at 70°/50° (450 lb AHRI certified at 90°/70°), DuraTech exterior, regular dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR

SPA-162: Vending Ice Dispenser, touchless lever, floor model, 22″W x 31-3/16″D x 54″H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
