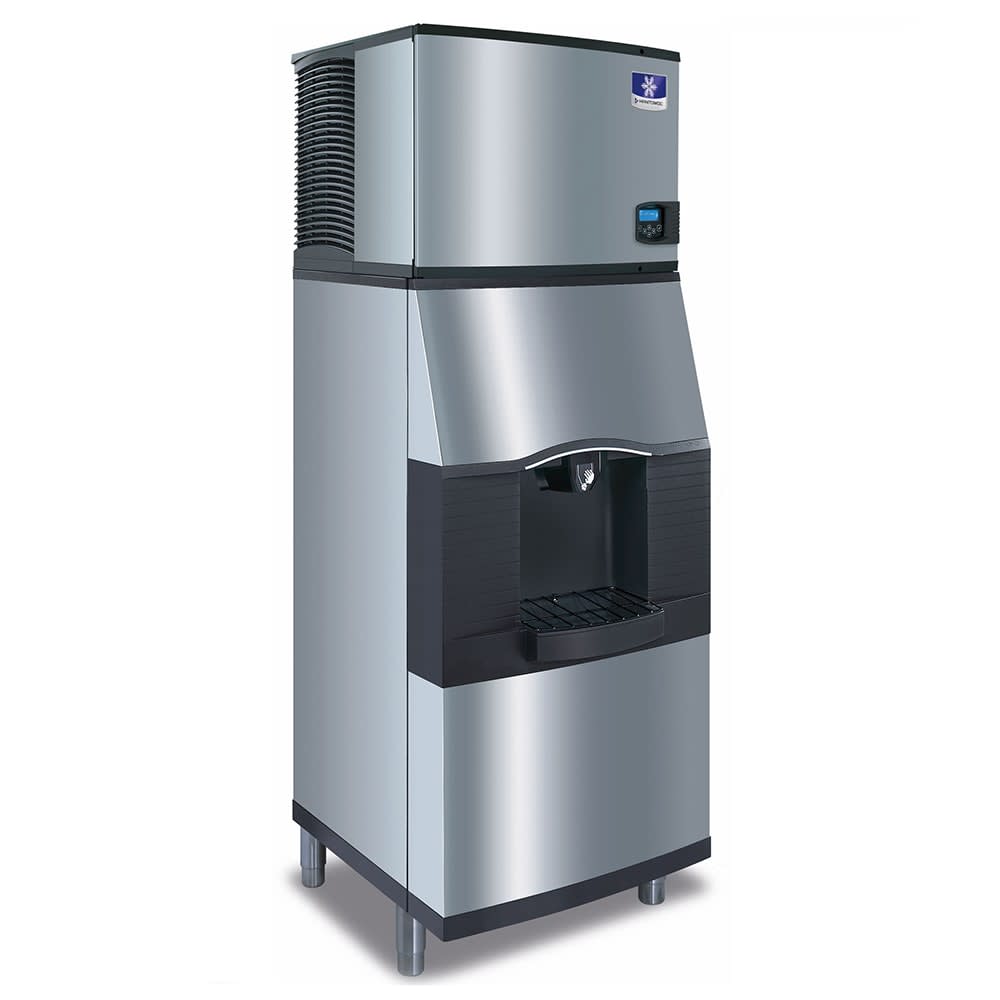

Manitowoc Ice IDT0500W/SFA292 500 lb Full Cube Ice Maker w/ Ice & Water Dispenser – 180 lb Storage, Bucket Fill, 115v

Making full-cube ice, the Manitowoc Ice IDT0500W-161/SFA292 Indigo NXT ice machine with dispenser can produce 500 pounds daily. These cubes measure 0.875 inch by 0.875 inch by 0.875 inch, which is a perfect size for drinks. Since the dispenser has a tall chute area, it accommodates large containers and buckets. A built-in valve dispenses water, and the storage area holds 180 pounds.

Daily ice production can be programmed based on time of day or the amount in the dispenser. An acoustical sensing probe measures ice thickness to ensure each cycle is consistent. Operators can check unit information on the touchscreen panel and access components through a swing-out food zone door.

Ice Maker Details

• Part of the Indigo NXT series
• 500-lb. daily ice production capacity
• 400-lb. AHRI-certified daily ice production capacity
• Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
• Acoustical sensing probe measures the thickness of ice for consistency
• Ice production can be set based on ice volume or operation time
• easyTouch display for energy, service, and menu settings
• 24-hr. diagnostics and preventive maintenance
• Hinged food zone door swings out, ensuring that components are accessible
• Removable sensing probes, distribution tube, water trough, and curtain
• AlphaSan antimicrobial technology slows microbe growth between each cleaning
• DuraTech clear coat over the stainless steel exterior provides corrosion and smudge resistance
• Water-cooled motor
• R410A refrigerant
• 3,800 average BTU; 6,000 peak BTU
• Required ambient air temperature: 40-110 degrees F
• Required incoming water temperature: 40-90 degrees F
• Required incoming water pressure: 20-80 PSI

Dispenser Details

• 180-lb. capacity
• Built-in water valve
• For large buckets and containers
• Rocking chute dispenser mechanism reduces spilled ice
• Oversized drain pan catches ice if it overflows
• Built-in agitator prevents ice from clumping in the dispenser
• DuraTech exterior

Dimensions and Utilities

• Ice Maker
  • 30 in. W x 24 in. D x 21.5 in. H
  • 10.8 A, 4.41 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 30 in. W x 32 in. D x 60.5 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with NEMA 5-15P plug

From The Manufacturer

IDT-0500W: Indigo NXT Series Ice Maker, cube-style, water-cooled, self-contained condenser, 30″W x 24″D x 21-1/2″H, production capacity up to 500 lb/24 hours at 70°/50° (400 lb AHRI certified at 90°/70°), DuraTech exterior, regular dice size cubes, R410A refrigerant, NSF, cULus, CE

SFA-292: Vending Ice Dispenser with Built-In Water Valve, touchless lever, floor model, 30″W x 32″D x 82″H, AHRI certified 180-lb capacity, designed for dice or half-dice ice type, fills containers up to 11″ high, stainless steel exterior with vinyl trim, accepts 22″ or 30″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
