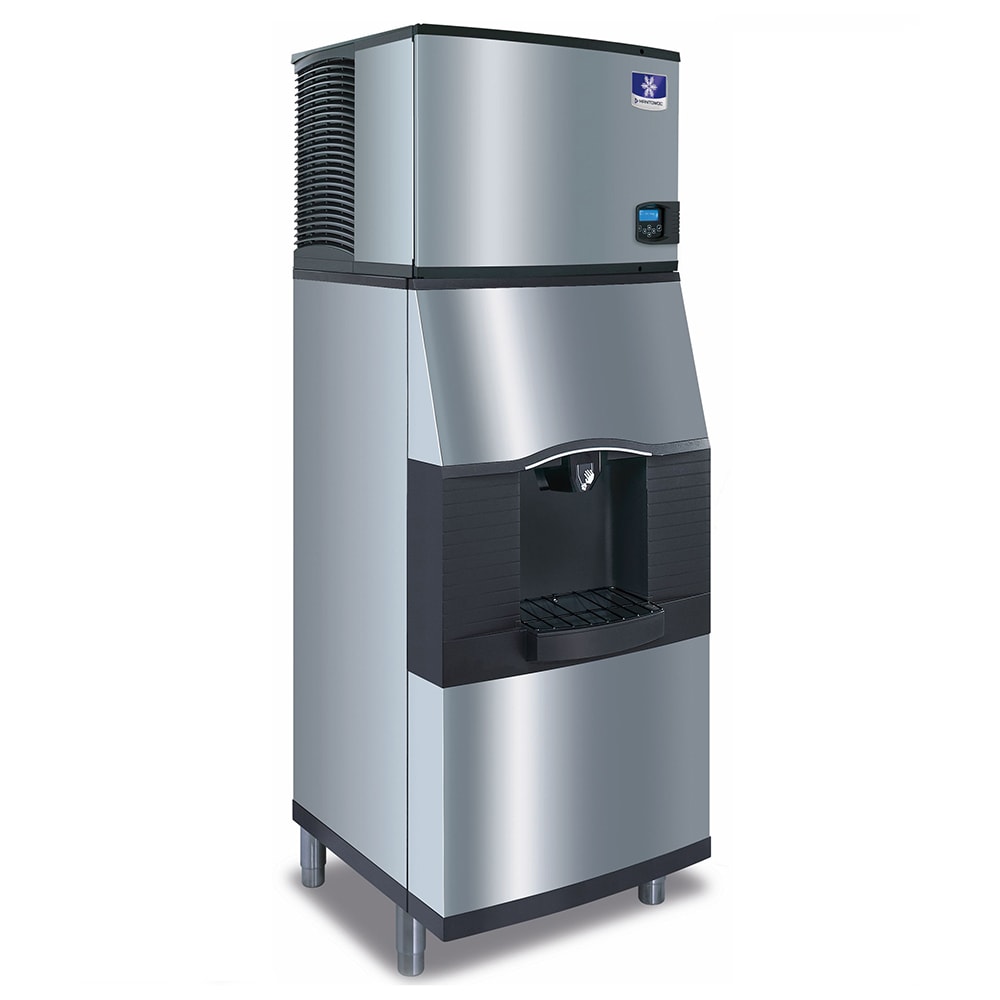

Manitowoc Ice IDT0420A/SPA162 470 lb Full Cube Ice Maker w/ Ice Dispenser – 120 lb Storage, Bucket Fill, 115v

With its programmable volume and hours of operation, the Manitowoc Ice IDT0420A-161/SPA162 Indigo NXT commercial ice machine and dispenser is customizable to fit the needs of its operator. The ice maker head produces dice ice, a common all-around staple for hotels and motels because of its relatively large size and slow melting rate. An acoustical probe inside the head monitors cube thickness to ensure ice is produced consistently at the same size, while diagnostics help the user quickly and efficiently deal with machine problems.

The Manitowoc Ice IDT0420A-161/SPA162 ice maker and dispenser has a built-in agitator in the dispenser, which churns ice to prevent large chunks and maximize the amount available to customers. By regulating the flow as it comes out of the dispenser, a rocking chute mechanism limits ice waste, and in case of spills, the drain pan is oversized and can catch the loose ice. This dispenser’s DuraTech exterior provides defense against dirt stains and other smudges.

Ice Maker

• Part of the Indigo NXT series
• 470-lb. maximum daily ice production
• 375-lb. AHRI-certified daily ice production
• Air-cooled system produces dice ice
• Dice cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• easyTouch display helps user operate the machine
• Acoustical ice sensing probe checks cube thickness to ensure consistency
• Programmable volume and operation hours
• DuraTech exterior is resistant to smudges and fingerprints
• Intelligent troubleshooting diagnostics
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• Ideal clearances: 12 in. at top and sides, 5 in. at back
• R410A refrigerant
• 3,800 average BTU; 6,000 peak BTU

Dispenser

• 120-lb. AHRI-certified bin capacity
• Large drain pan collects spillage
• Dispenses full- or half-cube ice
• Accepts containers shorter than 10¹/₂ in.
• DuraTech exterior
• Built-in agitator increases available ice by preventing cubes from melting together
• Rocking chute mechanism decreases ice waste and spillage

Dimensions & Utilities

• Ice Maker
  • 22 in. W x 24¹/₂ in. D x 21¹/₂ in. H
  • 11.3 A, 5.6 kW
  • 115 V/60 Hz/1 ph
• Dispenser
  • 22 in. W x 31³/₁₆ in. D x 54 in. H
  • 1.6 A
  • 115 V/60 Hz/1 ph, 6-ft. cord with a NEMA 5-15P plug

From The Manufacturer

Ice Machine IDT0420A: Indigo NXT Series Ice Maker, cube-style, air-cooled, self-contained condenser, 22″W x 24-1/2″D x 21-1/2″H, production capacity up to 470 lb./24 hours at 70°/50° (375 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech exterior, dice size cubes, R410A refrigerant, NSF, cULus, CE, ENERGY STAR

Ice Dispenser SPA162: Vending Ice Dispenser, touchless lever, floor model, 22″W x 31-3/16″D x 54″H, AHRI certified 120-lb capacity, designed for dice or half-dice ice type, bucket filling, stainless steel exterior with vinyl trim, accepts 22″ dice or half-dice machines, cULus, CE, ADA compliant

*Image may not depict product color, inclusions or accessories.
