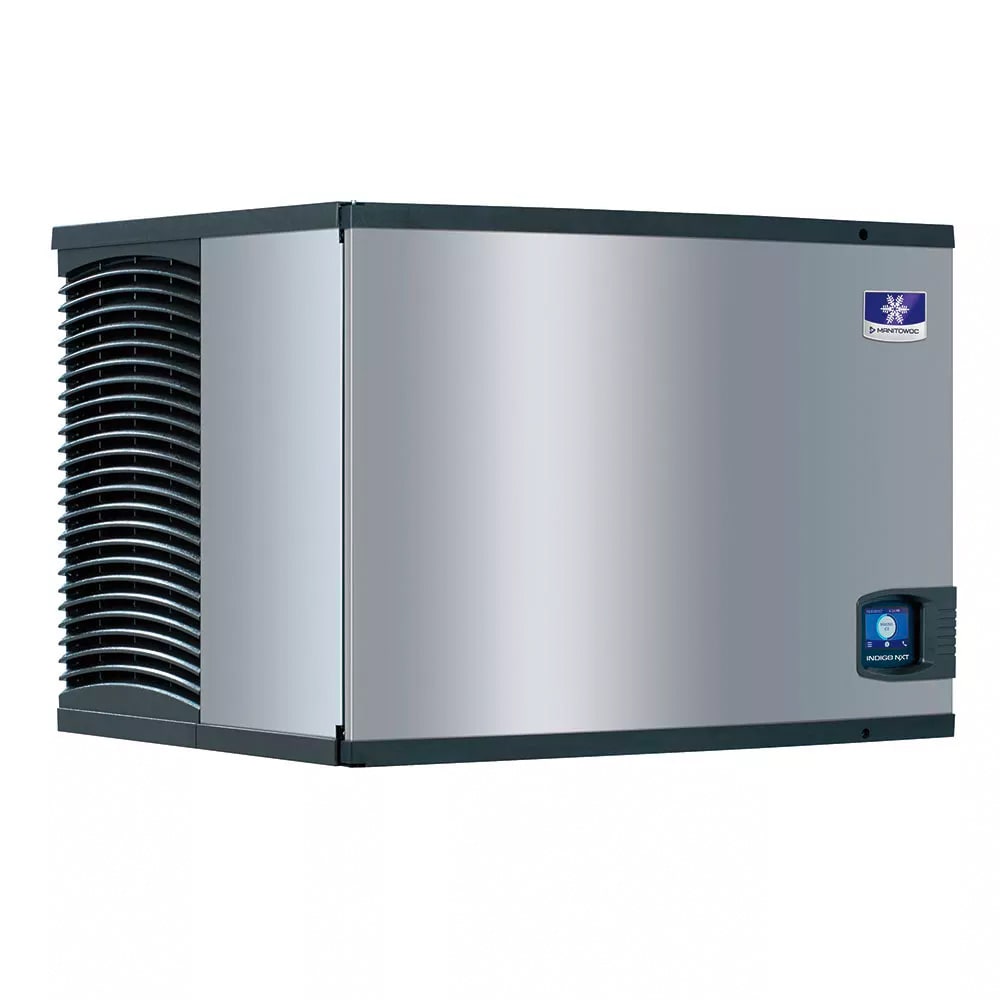

Manitowoc Ice IDF0500N 30″ Indigo NXT Full Cube Ice Machine Head – 510 lb/24 hr, Remote Cooled, 115v

Enhanced with a DuraTech clear coat, the Manitowoc Ice IDF0500N Indigo NXT ice machine head’s exterior is durable and resistant to corrosion, scratches, and fingerprint smudges. This ice machine head produces as much as 510 pounds of full-cube ice per day in ideal conditions. Because it melts slowly, this type of ice makes a good choice for locations that sell chilled beverages, such as soft drinks, mixed drinks, and sweet tea.

The Manitowoc Ice IDF0500N Indigo NXT ice machine head is designed for use with a remote condensing set up, a style of ice machine that produces less noise and hot air in the dining area than a built-in condenser would. For accuracy in measuring, the machine head is built with an acoustical sensing probe, and users can program the ice production level to peak during high-volume hours. To access and clean the foodzone, this ice machine has a lift-off door, and select components are removable for cleaning.

Note: This unit must be paired with an ice maker bin or ice dispenser.

Product Details

• Part of the Indigo NXT series
• Replaces ID-0592N
• Air cooled
• Produces full-cube ice
• 510-lb. maximum daily ice production
• 445-lb. AHRI-certified daily ice production
• Compatible with remote refrigeration
• DuraTech exterior adds corrosion resistance
• Clear coat doesn’t harbor fingerprints
• 24-hour intelligent diagnostics support preventative maintenance
• Acoustical ice sensing probe measures levels
• easyTouch display uses icon-based interface
• Programmable ice production fluctuates with high-volume periods
• Foodzone is accessible through lift-off door
• Removable water trough, curtain, distribution tube, and sensing probes facilitate cleaning
• Components enhanced with AlphaSan antimicrobial
• 3,800-BTU heat transfer capacity (6,000-BTU peak)
• Manitowoc will not honor the warranty on a remote unit paired with an existing condenser (must be purchased with condenser)

Dimensions & Utilities

• Ice cube: ⁷/₈ in. W x ⁷/₈ in. D x ⁷/₈ in. H
• Head: 30 in. W x 24 in. D x 21¹/₂ in. H
• Operates with R404A refrigerant
• Ideal ambient air temperature: 40-110 degrees F
• Ideal incoming water temperature: 40-90 degrees F
• Ideal incoming water pressure: 20-80 PSI
• 14.8 A, 5.96 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Indigo NXT Series Ice Maker, cube-style, air-cooled, designed for remote refrigeration (vertical condenser and lines sold separately), 30″W x 24″D x 21-1/2″H, production capacity up to 510 lb./24 hours at 70°/50° (445 lb. AHRI certified at 90°/70°), easyTouch display with 13 different language options, date/time stamp display, automatic reminder/alert icon, one touch asset information, automatic detection of accessories, continuous operating status, programmable production options (time, weight, day or night), one touch cleaning with displayed instructions, Alpha-San anti-microbial protection, acoustical ice sensing probe, self-diagnostic technology, DuraTech exterior, dice size cubes, R404a refrigerant, NSF, cULus, CE

*Image may not depict product color, inclusions or accessories.
