Description
Kolpak QS6-0610-FT Description

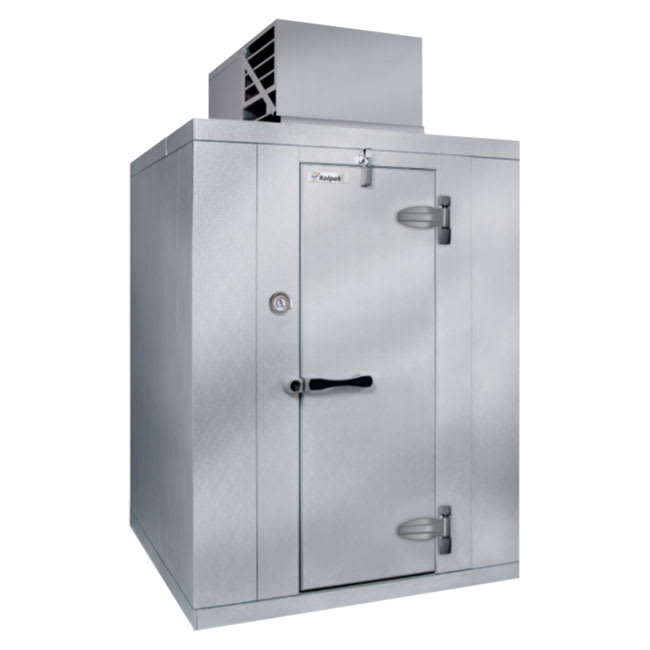

The Kolpak QS6-0610-FT-R Polar-Pak walk-in freezer has wall, ceiling, and floor panels that connect with fasteners, and many of these panels are interchangeable to facilitate installation. Foamed-in-place gaskets eliminate gaps where cold air can flow out between the panels. Aluminum flooring supports product in the interior and provides additional insulation. Interior lighting brightens the storage area, keeping items visible. To secure contents, the door has a keyed door lock.
The door self-closes to reduce cold air loss, while cracks around the door frame are filled with magnetic gaskets to prevent heat from creeping in. Internal temperatures are kept at a consistent -10 degrees Fahrenheit, and employees can check them on the temperature dial. Because this Kolpak QS6-0610-FT-R indoor walk-in freezer has a top-mounted refrigeration system, the ceiling height should be considered when installing this unit. Typically, these kinds of units require a 9-ft. ceiling. Placed on top, the refrigeration unit is unlikely to be tampered with, operating far away from dust and dirt on the floor and automatically defrosting itself.
Product Details
- 271-cu.-ft. interior space
- For use indoors
- Panels are simple to assemble
- Exterior and interior made of durable, embossed galvalume
- Aluminum floor panels insulate the bottom
- Coved corners on floor do not gather debris
- Magnetic gaskets create a seal around the door
- Self-closing door shuts in cold air
- Keyed door lock
- Internal door release prevents employees from being trapped
- Vapor-resistant interior lighting
- Part of the Polar-Pak series
Top-mount Refrigeration Unit
- Thermometer dial
- Operating temperature: -10 degrees F
- Automatically defrosts internal components
- Condensate vaporizer cleans out excess moisture
- Heated vents prevent pressure from getting too high
- Condensing unit is cooled by air
- High position reduces the chances of tampering
Dimensions & Utilities
- Freezer nominal: 6 ft. W x 10 ft. D x 6 ft. H
- Freezer actual: 5 ft. 10 in. W x 9 ft. 8 in. D x 6 ft. 6.25 in. H (does not include refrigeration system)
- 13.5 A, 11/2 HP
- 208-230 V/60 Hz/1 ph
Walk-In Freezer, Indoor Polar-Pak, 6′-6.25″ H, 5′-10″ W, 9′-8″ L, with Era floor, low temp (-10F) top mounted unit, 26 gauge embossed galvalume interior & exterior, .100 smooth aluminum Era floor, 2″ dial thermometer, NSF, cUL, UL
