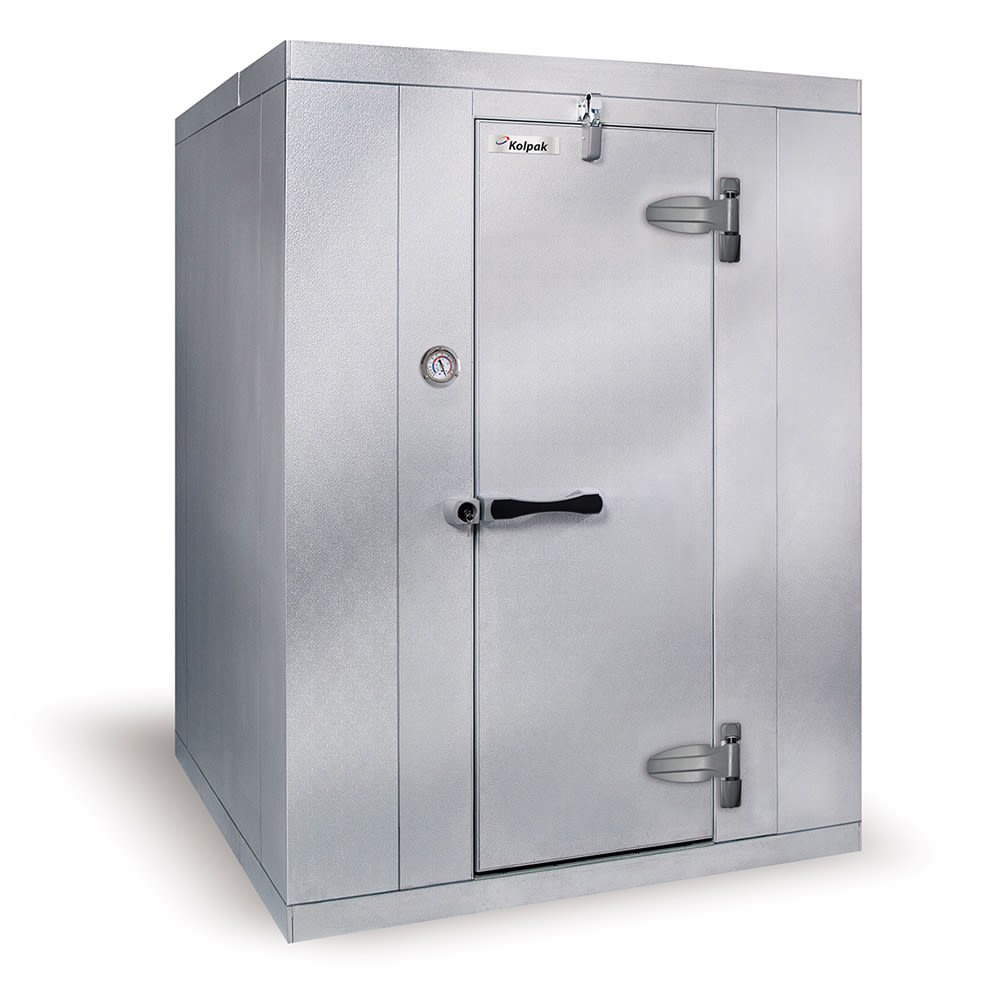

Kolpak KFX8-1410-CR Indoor Walk In Refrigerator w/ Remote Compressor, 9′ 8″L x 13′ 6″W x 8′ 6″H

The Kolpak KFX8-1410-CR-R Kold-Front walk-in refrigerator has 4-inch-thick wall panels, each with durable galvalume exteriors and a polyurethane insulation middle. These panels are assembled with cam locks, and their foamed-in-place gaskets prevent cold air from escaping. Likewise, gaskets in the door frame provide a strong door seal. Although this unit does not come with floor panels, it does come with a vinyl floor screed. When installing the unit, operators can lay this screed over a clean concrete floor and secure it to the walls.

This Kolpak KFX8-1410-CR-R walk-in refrigerator has a remote refrigeration system, which makes installation more challenging but eliminates clearance requirements. The walk-in can be placed beside other equipment and does not require a 10-foot ceiling. Its internal temperatures are programmed to stay around 35 degrees Fahrenheit, and if the temperature rises, the thermal expansion valve speeds up refrigerant flow and quickly restores the set temperature.

Product Details

• Part of the Kold-Front series
• 833-cu.-ft. interior space
• Cam locks securely connect the panels
• Galvalume construction resists dings and corrosion
• Embossed finish hides water spots
• Dense polyurethane insulation blocks out heat
• Vinyl screed bottom
• Right-hinged door opens from the left
• Door closes automatically to shut in cold air
• Keyed lock limits access to authorized individuals
• Diamond-tread kickplates protect the door from dents
• Magnetic gaskets prevent cold air from leaking out
• Safety door release prevents accidental entrapment
• LED interior lighting for visibility
• Timed defroster runs automatically
• Dial thermometer for checking temperature
• Operating temperature: 35 degrees F
• Expansion valve can quickly pull down the interior temperature
• Remote condensing unit reduces required ceiling height

Dimensions & Utilities

• Cooler nominal: 14 ft. W x 10 ft. D x 8 ft. H
• Cooler actual: 13 ft. 6 in. W x 9 ft. 8 in. D x 8 ft. 6¹/₄ in. H
• Evaporator: 0.8 A, 115 V/60 Hz/1 ph
• Condenser: 11.4 A, 208-230 V/60 Hz/1 ph

Walk-In Cooler, Indoor Kold-Front, 8′-6.25″ H, 13′-6″ W, 9′-8″ L, floorless, medium temp (+35F) with pre-charged indoor/outdoor remote unit, 26 gauge embossed galvalume interior & exterior, 4″ vinyl/foam screeds, 2″ dial thermometer, NSF, cUL, UL
