Description

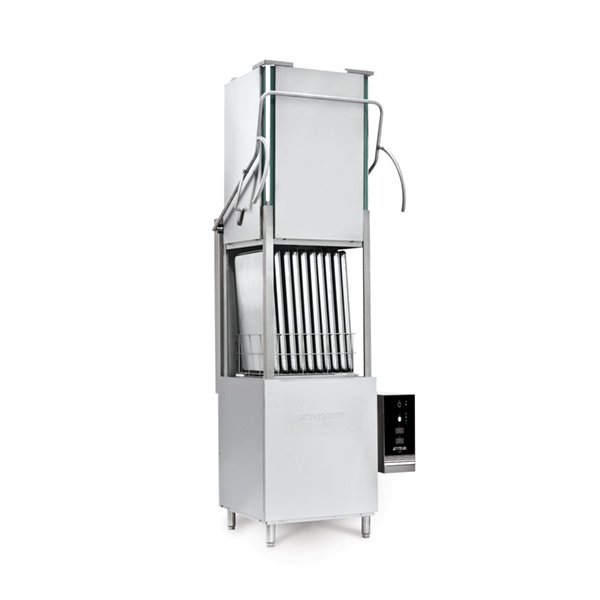

The 747HH is an ENERGY STAR certified high-temperature rack warewasher from Jet Tech with a built-in booster that will clean up to 40 racks per hour. The product contains a high hood which will allow for the washing of tall items. The body, external housing, wash tank, and all chassis components on this high-temperature rack warewasher are brushed stainless steel.
The double-wall insulated top and side panels keep this high-temperature rack warewasher running quietly. There are built-in rinse additive pumps and detergent pumps on this high-temperature rack warewasher that includes two 19.75″ x 19.75″ racks: one sheet pan and one peg.
The Jet Tech 747HH high-temperature rack warewasher is an electric unit that operates at 208 Volts/60 Hz with an option for single phase (requiring 50 amps), or three phase (requiring 29 amps). There are two washing pumps, each with a power level of 1 HP.
Product Specifications
| Ship Weight | 378 LB |
| Oversized Shipping | No |
| Hazardous Materials | No |
| Dimensions(HxWxD) | 98.5″ x 42.5 x 29″ |
| Racks/Hour | 40 |
| Booster Heater Included | Yes |
| Dishwasher Type | Undercounter |
| Door Location | Front |
| Wash Temperature | 150°F (65°C) |
| Rinse Temperature | 185-194°F (85-90°C) |
| Rack Included | Yes |
| Rack Capacity | 19.75″x19.75″ |
| Wash Tank Capacity | 11.5 gallons |
| Booster Capacity | 2.7 gallons |
| Water Used per Cycle | 1 gallon |
| Water Used per Hour | 49.75 gallons |
| Amps | 50 |
| Electrical | 208-240v/60Hz/1p |
| Recommended Pressure | 30 PSI |
| Operating Cycle | 105 second wash, 15 second rinse |
