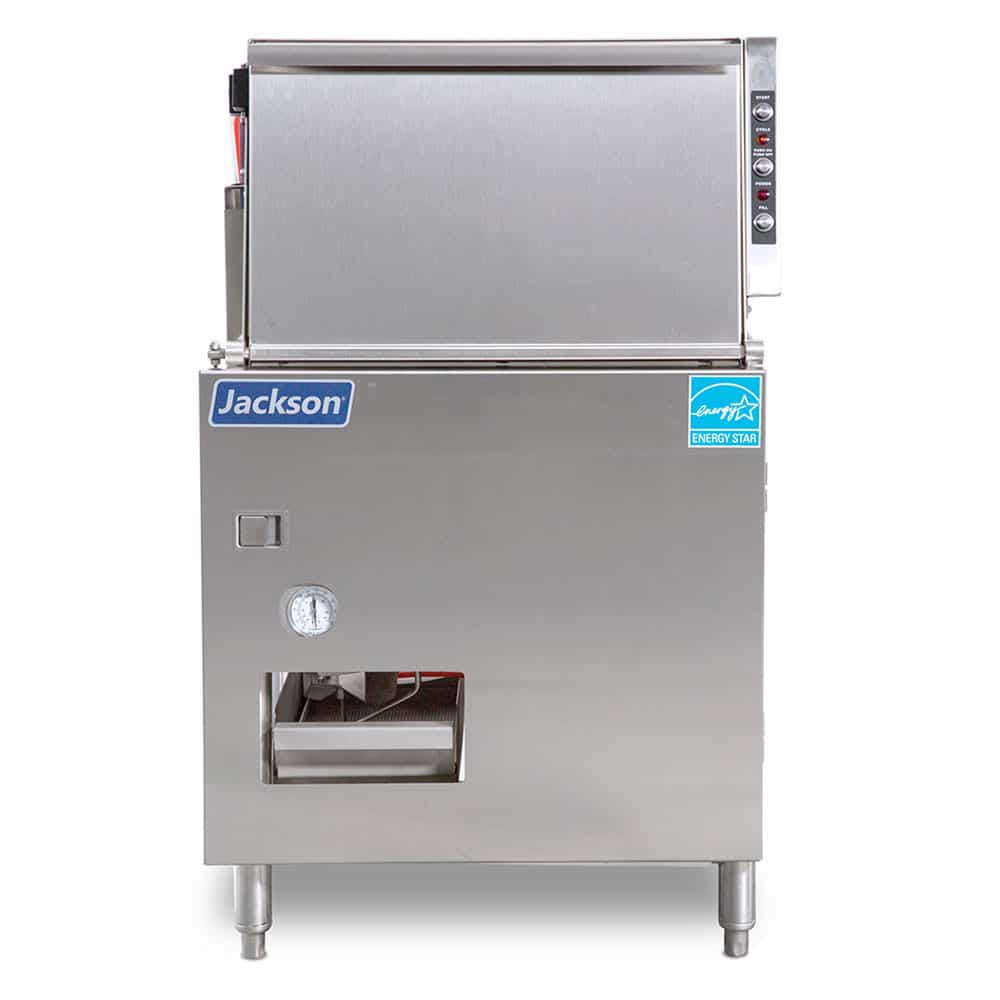

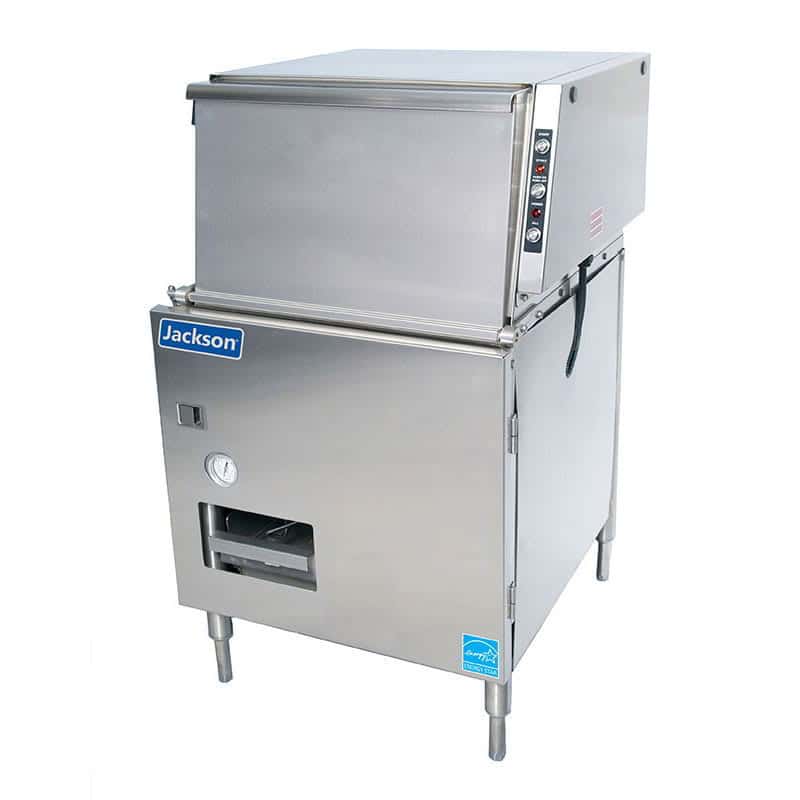

Jackson DELTA 5-E Low Temp Rack Undercounter Dishwasher – (40) Racks/hr, 115v

In an hour, the Jackson DELTA 5-E low-temp undercounter dishwasher can clean (40) 20-inch by 20-inch racks, with each cycle, including the wash, rinse, and dwell, taking 90 seconds. Every rack uses 1.16 gallons of water, and the powerful wash pump is made of durable stainless steel. Using chemicals instead of extremely hot water to sanitize dishes during the rinse cycle, the unit is a low-temperature model. The heating element ensures the water is between 120 and 140 degrees Fahrenheit.

Made for dishes or glassware, the Jackson DELTA 5-E underbar glass washer has an 11¹/₂-inch-tall dish clearance and accommodates 20-inch racks. Using an electromechanical controller, the unit is user friendly to control and has a swing-out design for accessibility. Operators can track the dishwasher’s temperature on the dial gauge.

Product Details

• 40 racks per hr.
• 90-sec. wash, rinse, and dwell cycle
• Uses 1.16 gal. of water per rack
• Powerful, 1-HP stainless steel wash pump
• Built-in chemical pumps and priming switches
• Low-temperature rinse uses chemicals for sanitization
• Sustaining heating element ensures a final rinse between 120-140 degrees F
• Air-gap water inlet
• 11¹/₂-in. wash chamber clearance for dishes and glassware
• Accommodates 20-in. x 20-in. racks
• Gravity drain
• Built-in waste accumulator can be accessed from the exterior
• Removable end plugs on lower wash arm simplify cleaning
• Accessible electromechanical controls
• Dial temperature gauge
• Door safety switch
• Durable stainless steel construction can be wiped clean
• Adjustable bullet feet

Dimensions & Utilities

• Interior clearance: 20¹/₄ in. W x 20¹/₂ in. D x 11¹/₂ in. H
• Overall: 25¹/₄ in. W x 24¹/₂ in. D x 39 in. H
• 16 A
• 115 V/60 Hz/1 ph

Product Features

Delta Underbar Dish/Glasswasher, door type, 24-1/2″W x 25-1/4″D x 39″H, low temperature chemical sanitizing, approximately (40) racks/hour, (90) second cycle, (3) built-in dispensing pumps, built-in waste accumulator, removable screen, push-button start, gravity drain, adjustable stainless steel bullet feet, stainless steel construction, 1 HP wash pump, 115v/60/1-ph, 16.0 amps, cETLus, NSF, ENERGY STAR
