Description

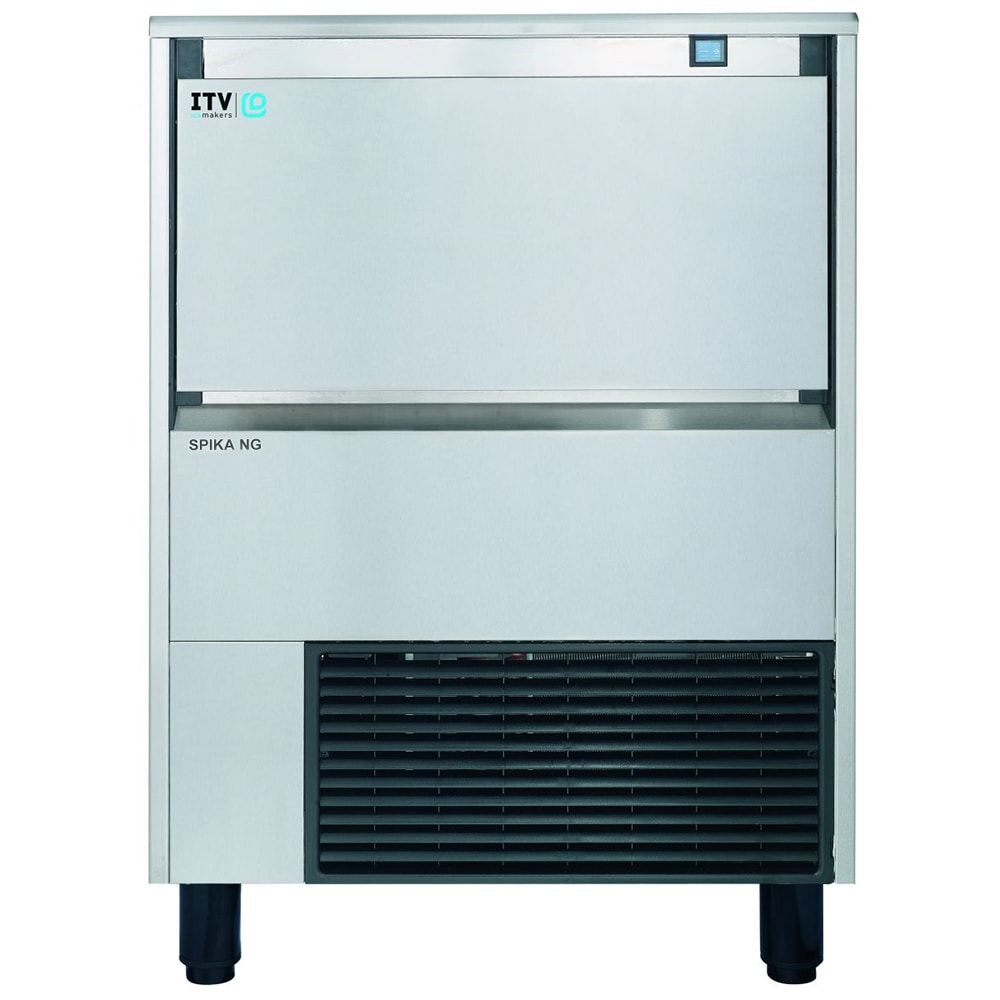

ITV Ice Makers SPIKA NG 230 A1F
For simple installation, the ITV Ice Makers SPIKA NG 230 A1F full cube undercounter ice maker includes a self-contained condenser. It makes as much as 223 pounds of ice a day and has a 77-pound storage capacity-great for drive thrus and small restaurants. Its stainless steel construction is durable enough to withstand rigorous fast-paced environments and can be quickly wiped clean. For convenient height placement, it sits on stainless steel legs that are adjustable by four to six inches, and to meet health guidelines, it comes with an ice scoop.
The ITV Ice Makers SPIKA NG 230 A1F undercounter ice maker includes electronic controls that are adaptive to extreme climates for maximum performance. It operates on R290 natural refrigerant and has front ventilation for proper machine airflow. Its “Never Stop” motor pump eliminates the need for seals to avoid hard water deterioration, and it works best in ambient temperatures between 41 to 109 degrees Fahrenheit and water temperatures between 41 to 95 degrees Fahrenheit. Overall, this unit measures 2599/100 inches wide by 2714/25 inches deep by 3829/100 inches high.
Product Details
- Full Classic American ice cube style
- Daily production capacity: 223 lbs.
- Ice cube size: 11/50 in. W x 9/10 in. D x 1 1/50 in. H
- 77-lbs. ice storage capacity
- Self-contained condenser
- Electro mechanic timer and dual switch
- 304 stainless steel construction
- Stainless steel door includes opening and damping system
- Smart front ventilation system enables built-in installation of the unit
- Cleaning switch circulates water and descaling product without cooling
- “Never Stop” motor pump doesn’t have seals to avoid hard water deterioration
- All panels can be disassembled for simple service and installation
- Electronic controls enhance unit performance while adapting to extreme climates
- Natural R290 refrigerant
- Led on/off switch and PCB mounted at bottom
- Vertical plate evaporator
- Stainless steel legs are adjustable between 4 and 6 in.
- Ambient temperature range: 41 to 109 degrees F
- Water temperature range: 41 to 95 degrees F
Dimensions & Utilities
- 2599/100 in. W x 2714/25 in. D x 3829/100 in. H
- 14.5 psi (1 bar)/87 psi (6 bar)
- 115 V/60 Hz/1ph
From The Manufacturer
SPIKA Ice Maker, self-contained, full Classic American ice cube-style, 223 lb. production/24 hr, 77 lb ice storage capacity, electro mechanic timer, dual switch, 304 stainless steel construction, vertical plate evaporator, legs adjustable from 4″ to 6″ (not included on dimensions), cETLus, NSF
*Image may not depict product color, inclusions or accessories.
