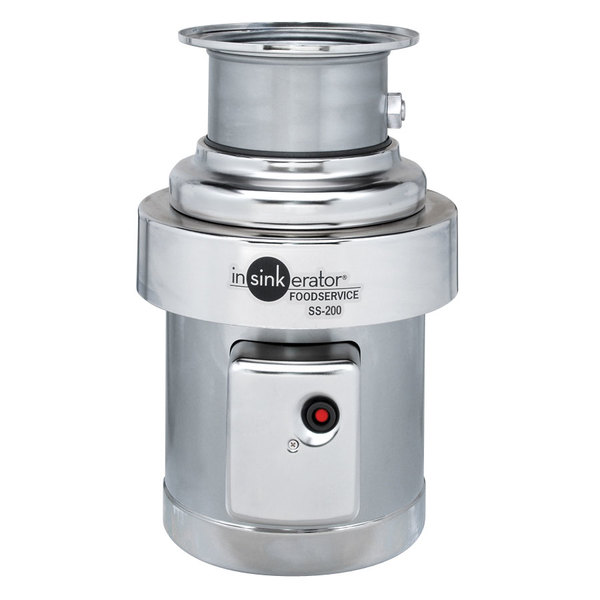

InSinkErator SS-200-35 Commercial Garbage Disposer – 2 hp, 3 Phase

Description

The InSinkErator SS-200-35 is a 2 hp commercial garbage disposer with a medium duty capacity that’s suitable for use at soiled dish tables, meat and seafood prep areas, and vegetable prep areas in medium sized hotels, hospitals, or cafeteria kitchens.

This 2 hp commercial disposer features a totally enclosed, air-cooled motor that’s designed for efficiency and long life, thanks to its built-in thermal overload protection.

The InSinkErator SS-200-35 features a durable stainless steel grind chamber with stationary and rotating cast nickel chrome alloy cutting elements which help ensure dependable service. For lasting sanitation, the unit’s exterior is paint free, with an all stainless steel and chrome plated construction.

This 2 hp InSinkErator SS-200-35 commercial disposer has a 208-230/460V, 60 Hz, 3 phase electrical configuration, and is 18 1/2″ high.

IDEAL FOR HEAVY-DUTY APPLICATIONS

• Restaurants
• Healthcare & hospitals
• Schools & universities
• Travel & Leisure

PRODUCT OVERVIEW

• Corrosion resistant stainless steel grind chamber
• 3/4″ (19.1 mm) rubber mounting above grinding chamber, enclosed in chrome plated covers for sanitation and appearance
• 1-1/2 to 2 H.P. induction motor with built-in thermal overload protection, 1725 RPM, totally enclosed to provide protection against outside moisture with controlled power air flow to cool motor—provides better efficiency, longer life
• Cast nickel chrome alloy stationary and rotating shredding elements for long life and corrosion resistance, designed for reverse action grinding
• Double-tapered Timken roller bearings provide a shock-absorbing cushion
• Triple lip seal protects motor from water damage and secondary spring-loaded oil seal provides double protection against water and loss of grease
• Stainless steel and chrome plated finish—paint-free for lasting sanitation
• WHAT’S INCLUDED
  • Base disposer: 1 mounting gasket, support legs
  • Disposer packages: 1 mounting/bowl assembly, 1 electrical control, 1 syphon breaker, 1 solenoid valve, and 1 flow control valve (the standard flow control valve will be sent with the unit unless the optional valve is specified)

Document:

• Spec Sheet
