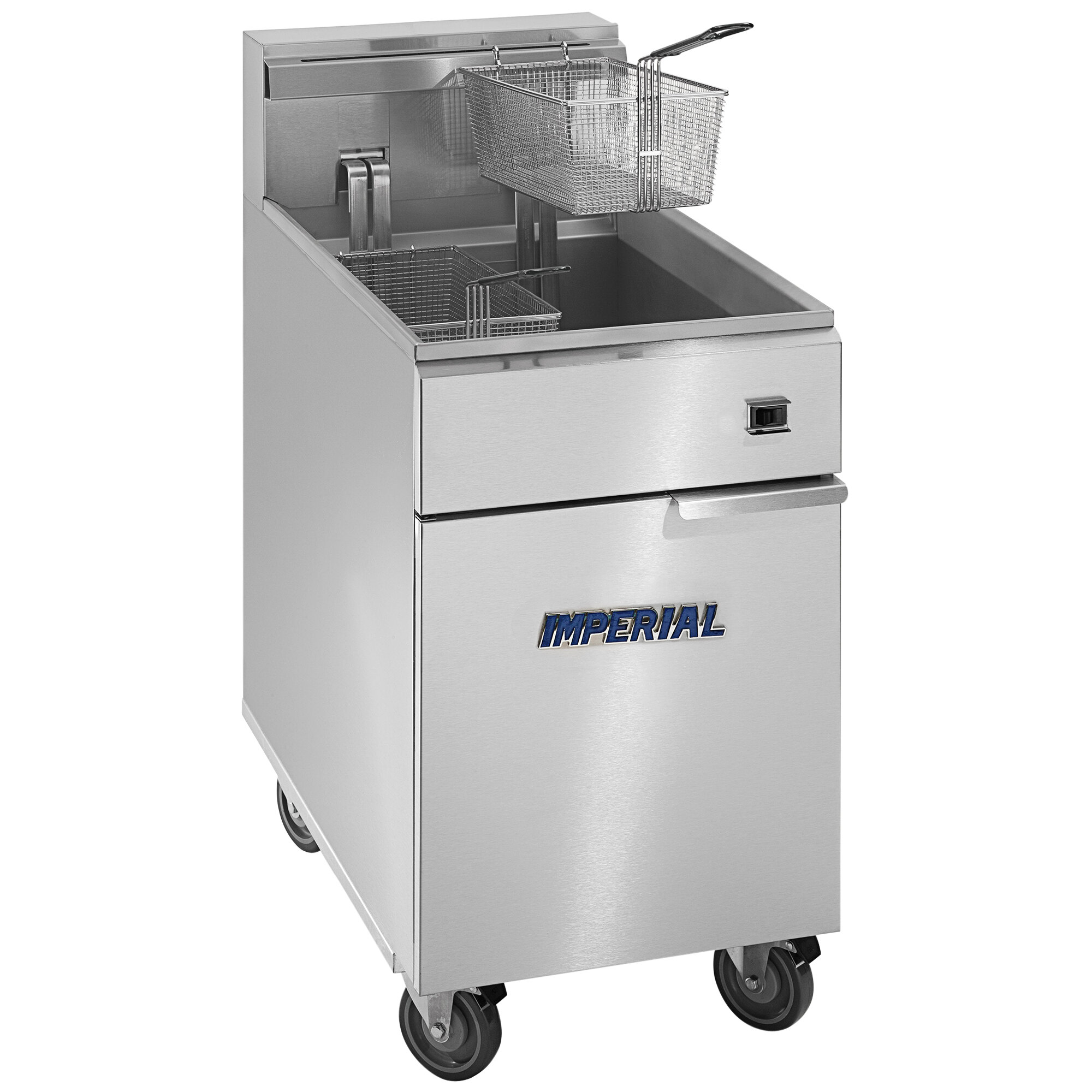

Imperial IFS-75-E Electric Fryer – (1) 75 lb Vat, Floor Model

Description

Using the Imperial IFS-75-E electric fryer, chefs can add fried foods to their menus. Its frypot accommodates 75 pounds of oil. This compartment can be heated to a level between 200 and 400 degrees Fahrenheit using its snap-action thermostat.

Made of stainless steel, the IFS-75-E floor model fryer can withstand frequent use in commercial environments. The equipment includes two baskets, which are plated with nickel to resist corrosion. These baskets have vinyl-coated handles that don’t absorb heat, so users can grip them without burning their hands.

ELECTRIC ELEMENTS

• Elements are located inside the stainless steel frypot, below the fry zone.
• Immersed element output is 19 KW, Tilt-up element output is 18 KW.
• Two elements styles are available, immersed elements are the most economical, the tilt-up elements offer complete access to the frypot for cleaning.
• Direct heat-to-element contact heats oil quickly resulting in less absorption and better tasting food.
• Snap acting electronic thermostat has a 200ºF – 400ºF. (93ºC – 204ºC) temperature range that extends oil life and produces a uniformly cooked product.

LARGE COOL ZONE

• Captures and holds particles out of the fry zone.
• Reduces taste transfer.

STAINLESS STEEL FRYPOTS

• Large 18″ x 18″ (457 x 457 mm) frying area.
• Frypot sides are robotically welded stainless steel to virtually eliminate leaks.
• Fine mesh wire crumb is included.
• Deep drawn bottom facilitates draining, slants toward the drain.
• 1-1/4″ (32 mm) full port drain valve empties frypot quickly and safely.
• Two large, nickel-plated fry baskets with vinyl coated, heat protection, handles are included.
• Basket hangers are stainless steel.

EXTERIOR FEATURES

• Stainless steel front, door, sides, basket hanger and frypot.
• Welded and polished stainless steel seams.
• Full heat shield protects control panel.
• Full bottom chassis provide structural support.
• Plate mounted 6″ (152 mm) heavy duty stainless steel legs or optional casters assure secure support.
• One year parts and labor warranty. Limited warranty on frypot, stainless steel frypot is five years pro-rated.

Documents:

• Spec Sheet
• Owner’s Manual
