Description

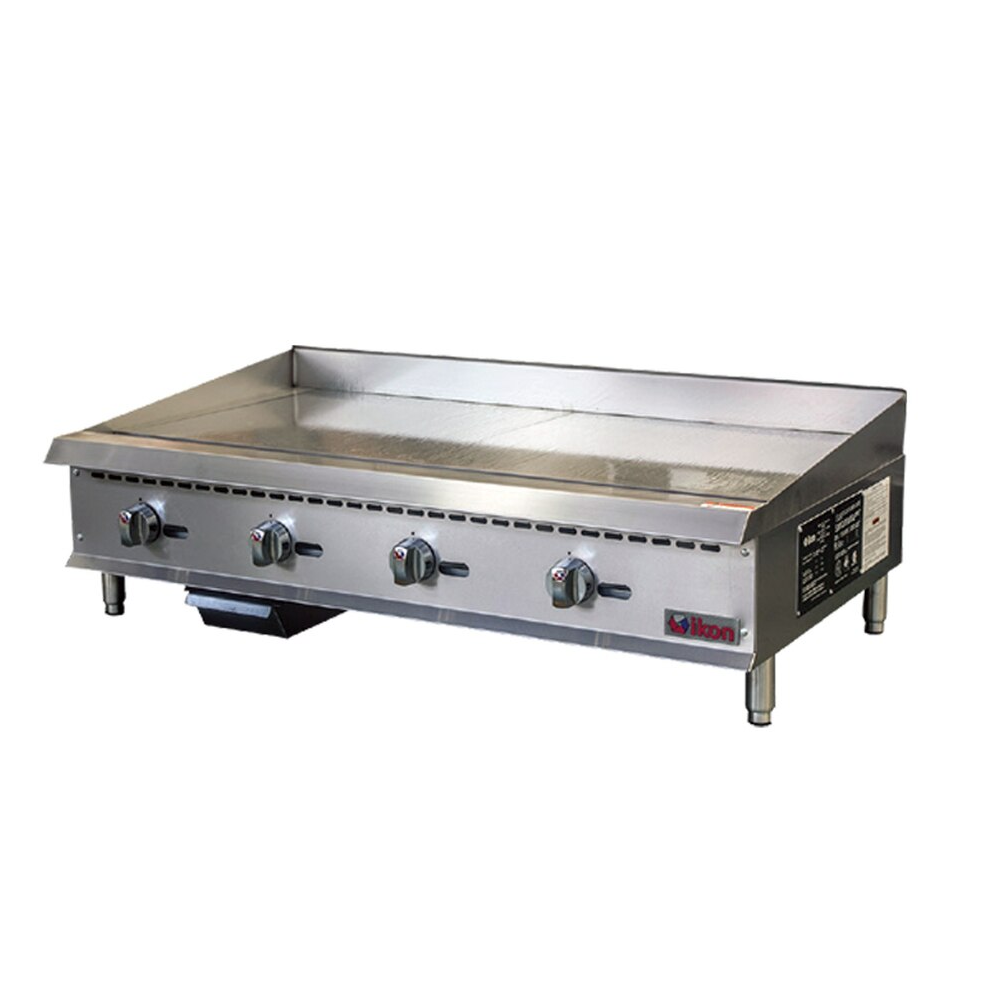

The Ikon Thermostat Control Griddles are available in 24”, 36”, 48” & 60” widths, the continuous 30,000 BTU output per burner provides even heat to the 1” thick polished steel griddle plate
- Adjustable manual gas controls provide easy and safe operations
- “U” shape burners provide even heat distribution every 12”
- 1” griddle plate
- 30,000 BTU/ burner
- Gas control knob every 12”
- All stainless steel cabinet
- Double wall insulated sides
- Widths: 24”, 36”, 48”, & 60”
- “Cool-to-the-touch” front s/s edge
- Back and side splash guards fully welded to griddle plate
- Flue located on back of unit for ample ventilation
- Adjustable stainless steel legs, non-skid feet
- Easy to remove 3-1/4” grease drawer with “weep hole” and baffle
- Grease trough is standard 4” spatula width
- Griddle is fully serviceable from the front
- Available in Natural gas(NG) or Liquid propane(LP).
- A conversion kit is supplied with each unit
| Model | ITG-48 |
| Cooking Area | 48” W X 20.5” D |
| Number of Burners | 4 |
| Control Type | Thermostatic |
| BTU’s per Burner | 30,000 |
| Total BTU’s | 120,000 |
| Overall Dimensions | 48.0”W x 34.4”D x 15.5”H |
| Weight | 253 lbs |
GAS REQUIREMENTS
• Natural Gas or Liquid Propane (LP) Gas main supply required
• A conversion kit is supplied with each unit. In order to avoid any waranty issues, conversion of your unit must be completed by an authorized Ikon service agent.
• 3/4” NPT gas connection
• One pilot light per burner
• Natural gas 4” W.C., LP gas 10” W.C
