Description

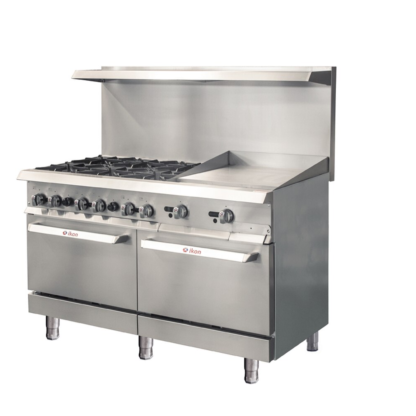

Ikon’s IR-10-60 commercial gas range is available in natural gas or liquid propane. This comes with 6 burners and 24″ griddle. It is 60″ wide with and two static ovens with manual controls. The front, back riser, and lift-off shelf are made of durable stainless steel construction. This commercial gas oven sits on robust 1″ adjustable legs. The top burners and oven are 30,000 BTUs. The top burner comes with 12″ x 12″ cast iron grates. The commercial gas oven has three positions for oven racks and is shipped with two racks in the oven. The oven’s interior door, sides, hearth are porcelain coated. It has 24″ griddle that is 3/4″ griddle plate.
PRODUCT DESCRIPTION:
- Stainless steel outer and inner construction, except back.
- Esthetic design and modular, sanitary and ergonomic edges.
- Powerful open removable burners of high capacity for easy cleaning made of iron.
- Independent stand by pilot for each burner.
- Reinforced top burner valves listed CSA and ANSI.
GAS REQUIREMENTS
- Natural Gas or Liquid Propane (LP) Gas main supply required
- A conversion kit is supplied with each unit. In order to avoid any warranty issues, conversion of your unit must be completed by an authorized Ikon service agent
- 3/4” NPT gas connection
- 30,000 BTU’s per burner
- One pilot light per burner
- Natural gas 4” W.C., LP gas 10” W.C.
| Model | IR-6B-24MG-60 | |
| Description | 24”Griddle & (6)Burners (Manual Control) | |
| Total BTU | 306,000 NG | 272,000 LP |
| KW | 90 | 80 |
| Overall Dimensions | 59.9”W x 31.4”D x 60.2”H | |
| Weight | 660 lbs | |
| Shipping Dimensions | 65.0”W x 37.0”D x 44.1”H | |
| Shipping Weight | 817 lbs | |
