Description
Ice-O-Matic MFI1506A Description

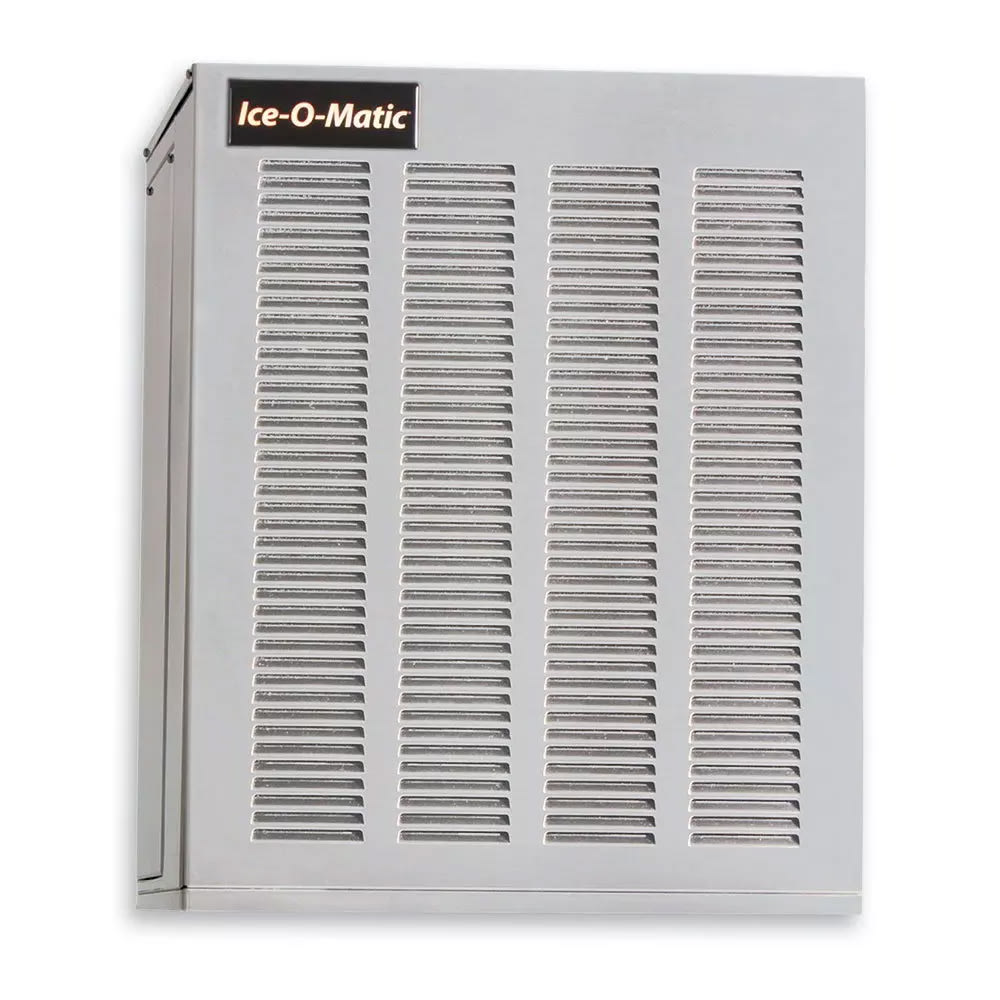

The Ice-O-Matic MFI1506A ice maker head is a great choice for supermarkets and delicatessens because it produces flake ice—a small ice form well suited for handling packaging needs in refrigerated display cases. It can also be used in hospitals for the formation of ice packs. Under ideal conditions, the head is capable of producing as much as 1,450 pounds of ice a day, enabling it to keep up with sizable ice production needs.
The Ice-O-Matic MFI1506A ice machine is constructed with a stainless steel evaporator and auger, meaning both components are durable and long lasting to hold up well against potential rust, corrosion, and scratching. A built-in water sensor detects when water is low in order to circumvent low water failure, and if problems arise, the head’s SystemSafe feature will deactivate it.
Product Details
- 1,450-lb. maximum daily ice production
- 1,050-lb. daily ice production at 90 degrees F air, 70 degrees F water
- Air-cooled system
- Produces flake ice
- Stainless steel finish
- Heavy-duty gearbox and industrial-grade roller bearings
- Stainless steel evaporator and auger resist scratching and rusting
- Water sensor prevents low-water failure
- SystemSafe feature deactivates machine if problems arise
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-120 PSI
- 8,100-BTU heat transfer capacity
- Ideal clearances: 6 in.
Dimensions & Utilities
- 21 in. W x 24 in. D x 27 in. H
- 15.8 A, 3.5 kW
- 208-230 V/60 Hz/1 ph
Product Details
- Low-profile 21-in. width front air intake and rear exhaust allows installation with no side clearance
- Creates up to 1,450-lb. flake ice per 24-hr. with 70 degree F air and 50 degree F water
- Creates up to 1,050-lb. flake ice per 24-hr. with 90 degree F air and 70 degree F water
- SystemSafe feature monitors gearbox load and shuts system off if an unsafe load is detected, preventing costly damage to components
- Water sensor prevents low- and no-water failures; is not affected by high-mineral water
- Stainless steel evaporator and auger for a long life
- Built with industrial-grade roller bearings and heavy-duty gearbox for the ultimate durability
- Compatible with IFQ2 manifold water filter system with 2 IOMQ cartridges (sold separately)
- Overall Dimensions: 21-in. W x 24-in. D x 27-in. H
- 208-230 V/60 Hz/1-ph
Ice Maker, flake-style, air-cooled, approximately 1450 lb/658 kg production/24 hours, stainless steel finish, cULus, NSF
