Description

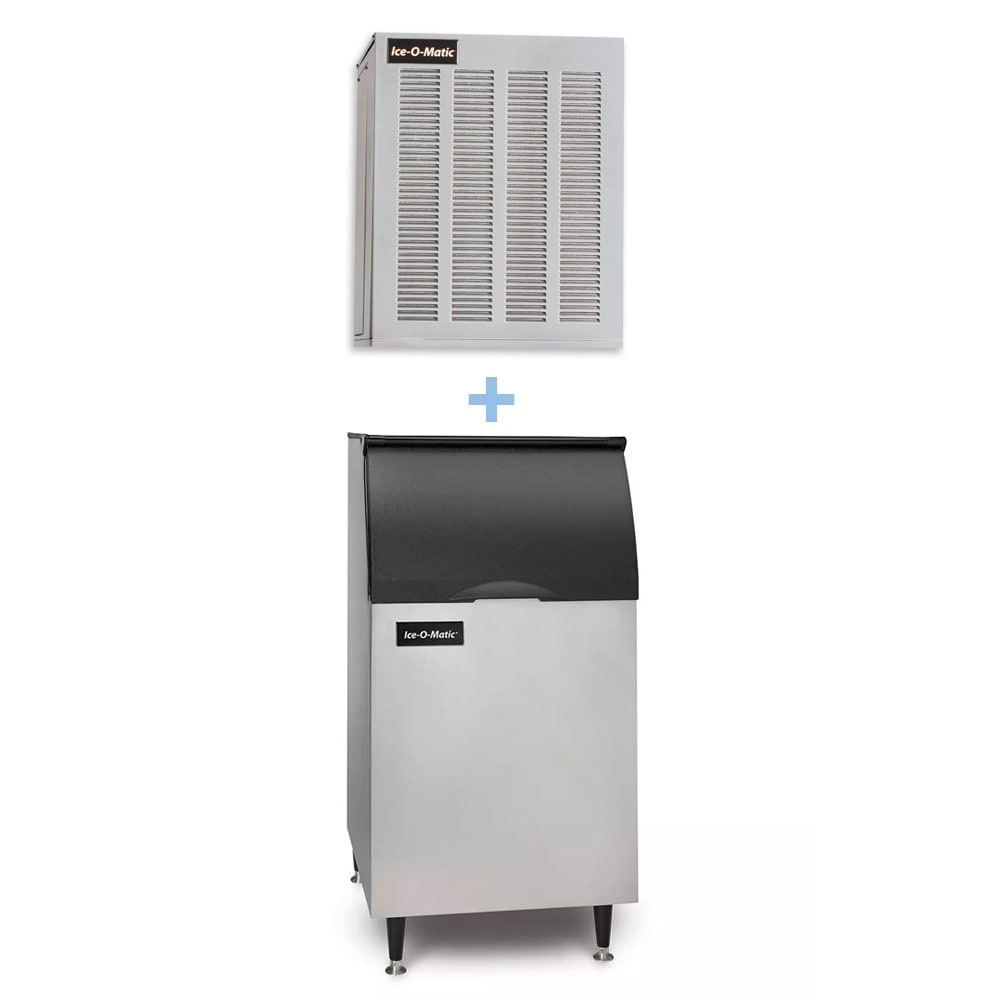

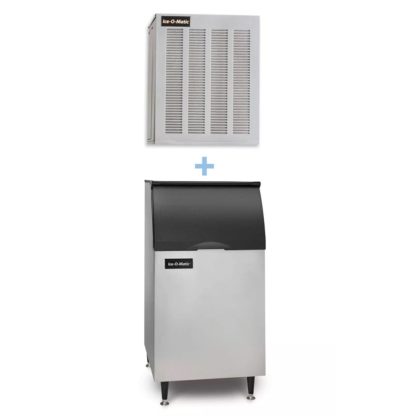

Ice-O-Matic MFI0500A/B42PS
To reduce the risk of costly damage, the Ice-O-Matic MFI0500A/B42PS ice maker and bin uses a SystemSafe monitoring feature to shut down the unit when an issue arises. It uses R404A refrigerant and an air-cooled self-contained condenser to produce a maximum of 540 pounds of ice per day in optimal conditions. Both the auger and evaporator are made of corrosion-resistant stainless steel to ensure a long service life.
The Ice-O-Matic MFI0500A/B42PS ice machine’s bin features a resilient aluminum exterior with a polyethylene interior liner to streamline cleaning. Mounted on 6-inch legs, it stands at a total height of 50 inches. This bin has a holding capacity of 351 pounds, and operators can access its contents through a sloped, top-hinged front door.
Ice Maker Details
- 540-lb. maximum daily ice production
- Makes flake-style ice
- SystemSafe monitors gearbox to shut down system before damage occurs
- Stainless steel exterior finish
- Air cooled
- Heavy-duty gearbox and industrial-grade roller bearings support rigorous use
- Water sensor reduces risk of damage from low water
- Auger and evaporator made of resilient stainless steel
- Self-contained condenser
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-120 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 5,600-BTU heat transfer capacity
Product Features
Ice Bin Details
- 351-lb. application capacity
- Sloped, top-hinged front door
- Durable aluminum exterior
- Sanitary polyethylene interior liner
- Mounted on 6-in. legs
- Foam insulation lengthens life of ice
Dimensions & Utilities
- Ice maker: 21 in. W x 24 in. D x 27 in. H
- Ice bin: 22 in. W x 31 in. D x 50 in. H
- 16 A, 4.5 kW
- 115 V/60 Hz/1 ph
Ice Maker w/ Bin, flake-style, air-cooled, self-contained condenser, approximately 540 lb/245 kg production/24 hours, stainless steel finish, 115v/60/1, 16.0 amps, cULus, NSF, ENERGY STAR; Ice Bin w/ Bin Top: 351 lb storage capacity, 22″W, 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
