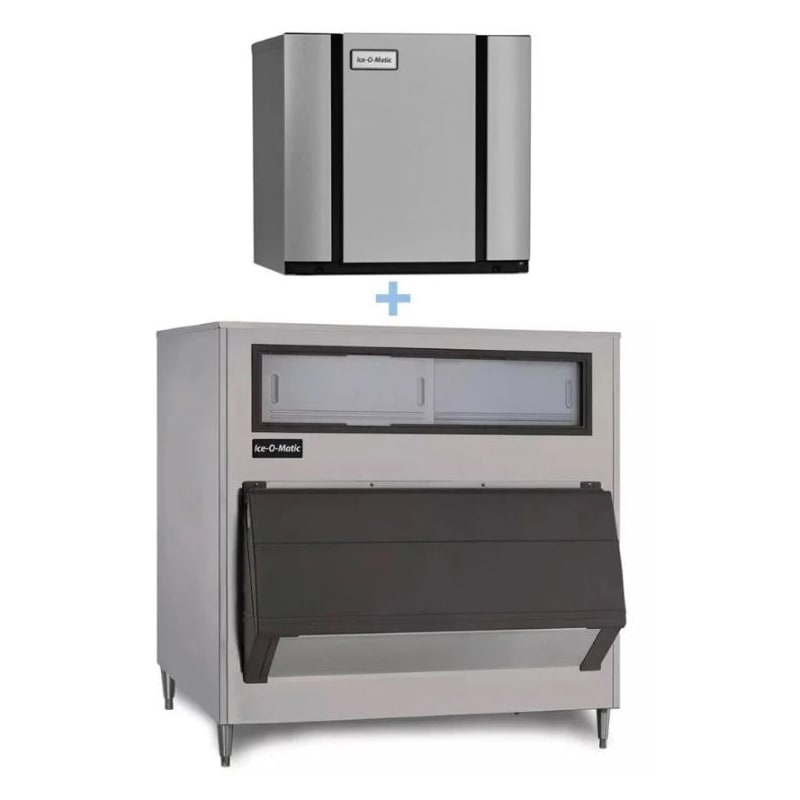

Ice-O-Matic CIM2046FW/B1600-60 1860 lb Full Cube Ice Maker w/ Bin – 1660 lb Storage, Water Cooled, 208-230v/1ph

The Ice-O-Matic CIM2046FW/B1600-60 ice maker and bin utilizes an establishment’s existing water supply to cool its maker head and produce ice. It makes full-cube ice, which is popular in the gourmet drinks of clubs and other drinking establishments. Splitting airflow to reduce potential vent blockage, exhaust ports on the top and side of the head vent heated air.

The Ice-O-Matic CIM2046FW/B1600-60 ice machine’s storage bin has a stay-open door that helps users filling many containers at once, and for increased strength and service life, the bin’s stainless steel construction holds up well to corrosion, rusting, and denting. It has an ice shield to curb the flow of product and reduce spillage.

Ice Maker

• Part of the Elevation Series
• Replaces ICE1806FW and ICE2106FW
• 1,860-lb. maximum daily ice production
• 1,690-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Water-cooled system
• Produces full-cube ice
• Full-cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Efficient compact design
• Dual exhaust system reduces exhaust obstruction
• LED status display
• PURE ICE antimicrobial defense
• 1-touch descaling/sanitization
• Food zone components are dishwasher safe
• Harvest Assist
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-60 PSI
• 27,500-BTU heat transfer capacity

Ice Bin

• 1,660-lb. bin capacity
• 52.8-cu.-ft. holding capacity
• Poly bin liner
• Ice shield manages ice flow
• Made of resilient, corrosion- and rust-resistant stainless steel
• Stay-open door streamlines ice withdrawl
• Includes universal adapter kit

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26.8 in. H
• Ice bin: 60 in. W x 31 in. D x 65 in. H
• 18.1 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

Product Overview

Elevation Series Modular Cube Ice Maker w/ Ice Bin, water cooled, self-contained condenser, dual exhaust top/side discharge, 48″W, approximately 1860 lb production/24 hours at 70°/50° (1690 lb at 90°70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 1660 lb storage capacity, 60″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF
