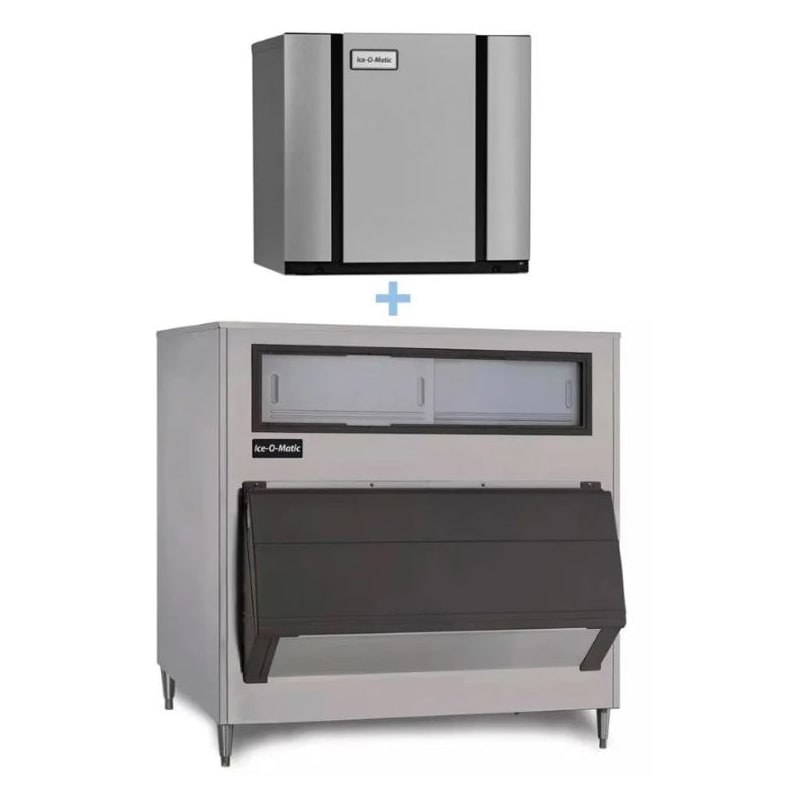

Ice-O-Matic CIM2046FW/B1325-60 1860 lb Full Cube Ice Maker w/ Bin – 1325 lb Storage, Water Cooled, 208-230v/1ph

Splitting the airflow to reduce obstruction, the Ice-O-Matic CIM2046FW/B1325-60 ice maker and bin uses a dual exhaust system to expel heated air through side and top vents. Its food zone components can be washed in the dishmachine to simplify cleaning operations, while the head can make as much as 1,860 pounds of ice a day under ideal conditions to keep up with customer traffic.

The stainless steel construction of the Ice-O-Matic CIM2046FW/B1325-60 ice machine’s storage bin strengthens it and increases its service life, as it can withstand denting, scraping, and corrosion. Its stay-open door adds convenience to the ice retrieval process for large loads, and with its ice shield, the bin reduces product spillage to save money.

Ice Maker

• Part of the Elevation Series
• Replaces ICE1806FW and ICE2106FW
• 1,860-lb. maximum daily ice production
• 1,690-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Water-cooled system
• Produces full-cube ice
• Full-cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Space-saving compact design
• Dual exhaust system minimizes airflow obstruction
• LED status display
• PURE ICE antimicrobial protection
• 1-touch descaling/sanitizing
• Food zone components are dishwasher safe
• Harvest Assist
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-60 PSI
• 27,500-BTU heat transfer capacity

Product Features

Ice Bin

• 1,325-lb. bin capacity
• 42-cu.-ft. holding capacity
• Poly bin liner
• Ice shield regulates ice flow
• Sturdy, rust- and corrosion-resistant stainless steel construction
• Stay-open door simplifies ice retrieval
• Includes universal adapter kit

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26.8 in. H
• Ice bin: 60 in. W x 31 in. D x 56 in. H
• 18.1 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Ice Bin, water cooled, self-contained condenser, dual exhaust top/side discharge, 48″W, approximately 1860 lb production/24 hours at 70°/50° (1690 lb at 90°70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 1325 lb storage capacity, 60″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF
