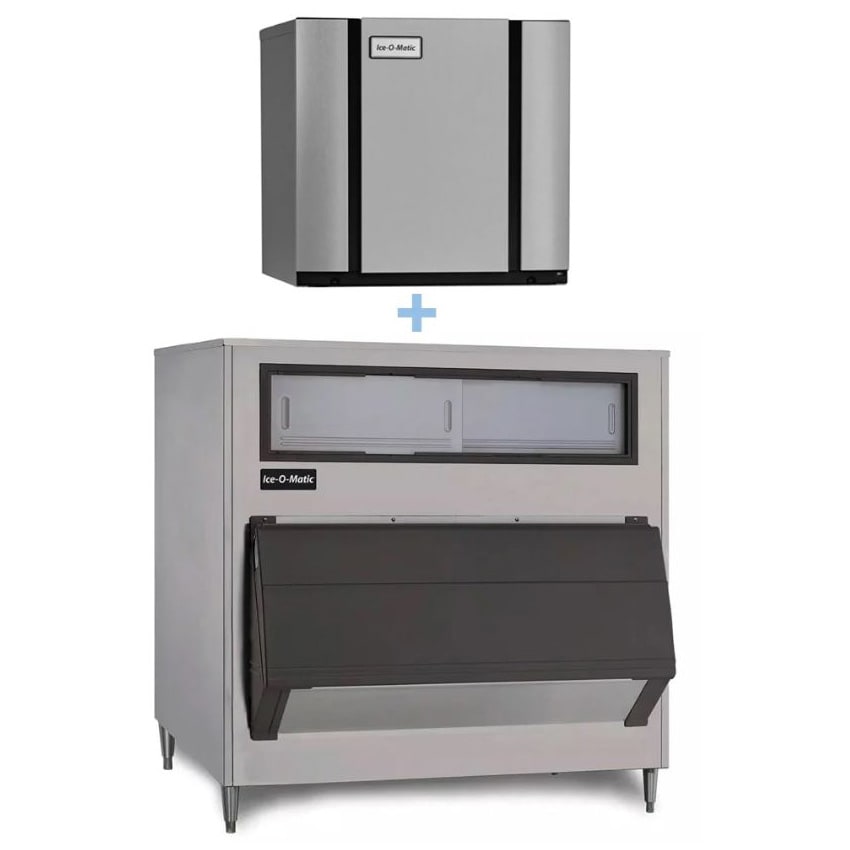

Ice-O-Matic CIM1446HW/B1600-60 1560 lb Half Cube Ice Maker w/ Bin – 1660 lb Storage, Water Cooled, 208-230v/1ph

Popular in quick-service restaurants and bars because it swiftly chills beverages, the Ice-O-Matic CIM1446HW/B1600-60 ice maker and bin makes half-cube ice. The maker head can produce as much as 1,560 pounds of ice in a day, enabling it to keep up with steady customer flow. To decrease potential exhaust obstruction, its dual exhaust system expels heated air through side and top vents.

To minimize user labor, the Ice-O-Matic CIM1446HW/B1600-60 ice machine and bin has a poly bin liner that simplifies cleanup. The bin’s stainless steel construction is built to last, holding up well against denting and corrosion to extend the unit’s service life. Its stay-open door adds convenience to the ice unloading process, which enhances the serving process.

Ice Maker

• Part of the Elevation Series
• Replaces ICE1406HW
• 1,560-lb. maximum daily ice production
• 1,440-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Water-cooled system
• Produces half-cube ice
• Half-cube size: ³/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Compact design efficiently uses available space
• Dual exhaust system reduces airflow blockage
• LED status display
• PURE ICE antimicrobial defense slows bacterial growth
• 1-touch sanitization and descaling
• Food zone components are dishwasher safe
• Harvest Assist
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-60 PSI
• 22,000-BTU heat transfer capacity

Product Features

Ice Bin

• 1,660-lb. bin capacity
• 52.8-cu.-ft. holding capacity
• Poly bin liner
• Ice shield minimizes spillage
• Stainless steel construction resists corrosion and rust
• Stay-open door facilitates ice withdrawal
• Includes universal adapter kit

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26.8 in. H
• Ice bin: 60 in. W x 31 in. D x 65 in. H
• 18.1 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Ice Bin, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), half size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 1660 lb storage capacity, 60″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF
