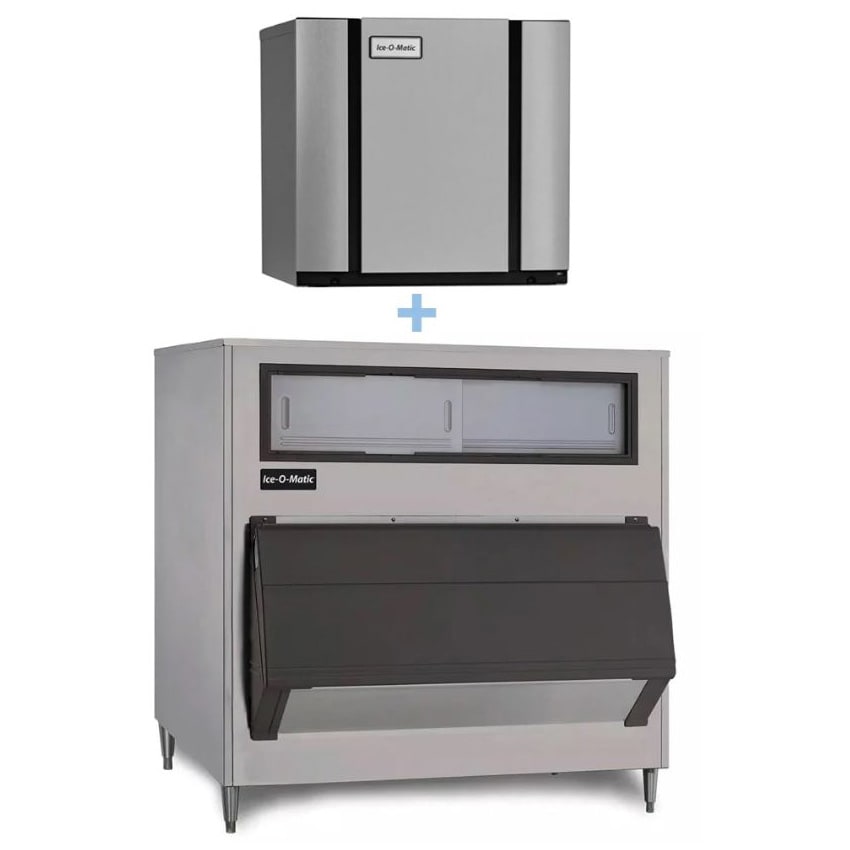

Ice-O-Matic CIM1446HW/B1300-48 1560 lb Half Cube Ice Maker w/ Bin – 1320 lb Storage, Water Cooled, 208-230v/1ph

The Ice-O-Matic CIM1446HW/B1300-48 ice maker and bin uses dual exhaust venting, out the top and side, to decrease airflow obstruction and improve machine cleaning. It makes as much as 1,560 pounds of ice a day under ideal conditions, which is great for bars and fast casual restaurants. Producing half-cube ice, the unit is well suited for use in soft drink glasses for its rapid cooling capability.

Helping reduce spillage to optimally manage product in the bin, the Ice-O-Matic CIM1446HW/B1300-48 ice machine bin combo is built with an ice shield that controls the descent of ice from the head to the bin. The bin is built of stainless steel to give it rust and corrosion defense as well as protection from denting or scratching. To help users withdraw ice, its door has a stay-open feature.

Ice Maker

• Part of the Elevation Series
• Replaces ICE1406HW
• 1,560-lb. maximum daily ice production
• 1,440-lb. daily ice production at 90 degrees F air and 70 degrees F water
• Water-cooled system
• Produces half-cube ice
• Half-cube size: ³/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Compact design maximizes space in tight areas
• Dual exhaust system combats venting obstruction
• LED status display
• PURE ICE antimicrobial protection
• 1-touch descaling and sanitization
• Food zone components are dishmachine safe
• Harvest Assist
• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-60 PSI
• 22,000-BTU heat transfer capacity

Product Features

Ice Bin

• 1,320-lb. bin capacity
• 41.9-cu.-ft. holding capacity
• Poly bin liner
• Ice shield reduces ice spillage
• Corrosion- and rust-resistant stainless steel
• Stay-open door helps users efficiently remove ice
• Includes universal adapter kit

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26.8 in. H
• Ice bin: 48 in. W x 31 in. D x 65 in. H
• 18.1 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Ice Bin, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), half size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 1320 lb storage capacity, 48″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF
