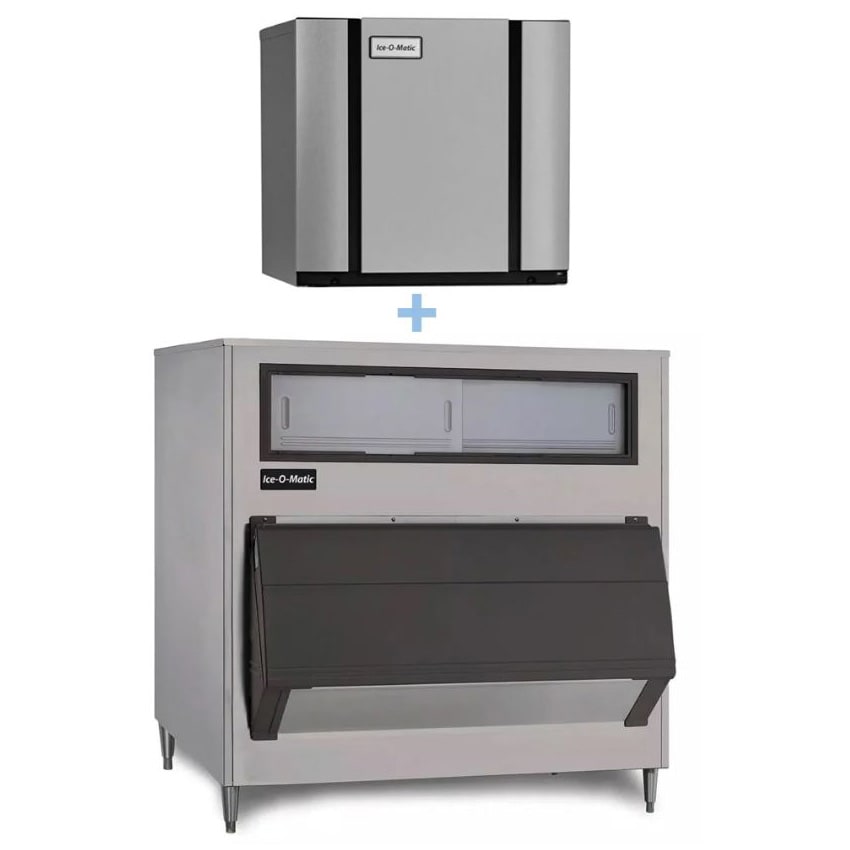

Ice-O-Matic CIM1446HW/B1000-48 1560 lb Half Cube Ice Maker w/ Bin – 1000 lb Storage, Water Cooled, 208-230v/1ph

To guide ice throughout the unit, the Ice-O-Matic CIM1446HW/B1000-48 ice maker with bin uses Harvest Assist technology. The bin holds 1,000 pounds of ice and operates on a first-in, first-out basis to ensure ice is fresh when used. Its heavy-duty door can be opened with a single hand when employees are busy, and it stays open while the interior is accessed to prevent it from slamming and causing injury. For corrosion resistance, the bin has a poly liner, and the exterior is made of durable stainless steel.

The Ice-O-Matic CIM1446HW/B1000-48 half-cube ice machine with bin has a dual exhaust and operates with a water-cooled, self-contained condenser. Its evaporator is nickel plated for durability, and to inhibit the growth of microbes, the unit is protected with PURE ICE antimicrobial. Descaling and sanitizing measures are controlled with the push of a button, and to expedite cleaning, the foodzone is made of plastic that can be wiped clean. For monitoring, its LED display screen provides status updates.

Ice Maker Details

• Part of the Elevation Series
• 1,560-lb. maximum daily ice production
• 1,440-lb. AHRI-certified daily ice production
• Crafts half-size cubes
• Cube dimensions: ³/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Ice is pushed into a bin or dispenser with Harvest Assist
• LED display reads out status updates
• PURE ICE antimicrobial is built in to slow bacterial growth
• Resilient stainless steel construction
• Water-cooled, self-contained condenser with side and top exhaust
• Evaporator has durable nickel plating
• Sanitizing and descaling controlled with 1 button
• Foodzone made of plastic that can be wiped clean
• Foodzone components are removable and dishwasher safe
• Ideal incoming water pressure: 20-60 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• 22,000-BTU heat transfer capacity

Product Features

Ice Bin Details

• 1,000-lb. application capacity
• Ice flow controlled with an ice shield
• First-in, first-out management ensures fresh product
• Heavy-duty door stays open for interior access
• Includes a rust-resistant poly liner
• Sturdy stainless steel construction
• Includes universal adapter kit

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26.8 in. H
• Ice bin: 48 in. W x 31 in. D x 56 in. H
• 18.9 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Ice Bin, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), half size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 1000 lb storage capacity, 48″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, includes universal adapter kit, NSF
