Description

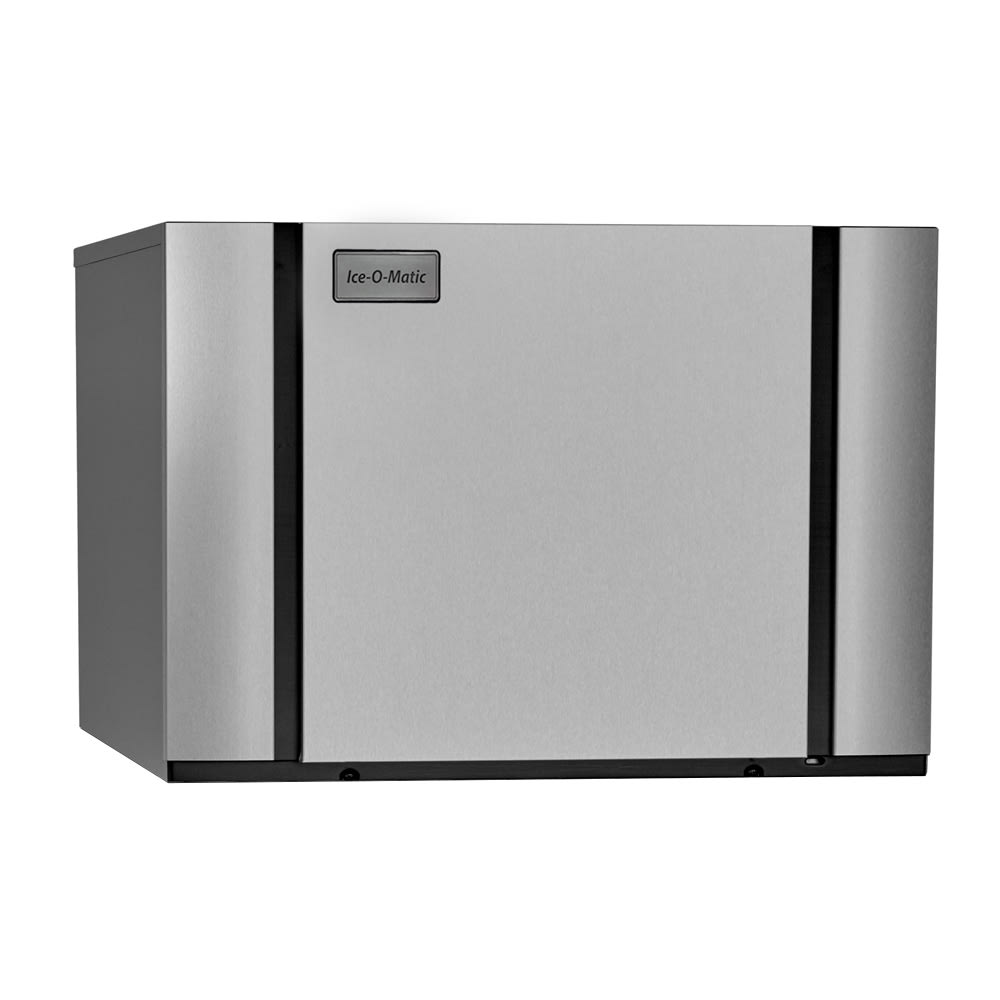

Ice-O-Matic CIM1446HA/B1300-48
The Ice-O-Matic CIM1446HA/B1300-48 half-cube ice maker with bin has a plastic foodzone with no creases that can harbor debris, and its snap-out components are safe for dishwasher cleaning. A single pushbutton enables sanitizing and descaling, and the unit is protected from rapid bacterial growth with PURE ICE antimicrobial. Operated via an air-cooled condenser, this ice machine uses less water than units with other condenser types, and it’s self-contained to streamline installation. Its evaporator is nickel plated to grant durability.
When ambient temperatures are low enough, the Ice-O-Matic CIM1446HA/B1300-48 ice maker with bin produces as much as 1,560 pounds of ice daily; when conditions are not quite ideal, it crafts closer to 1,210 pounds daily. The bin holds 1,320 pounds for later use and is lined with poly to prevent corrosion and offer sanitary storage. When users grab ice from inside, the door can be opened with a single hand, staying open for accessibility without slamming on an employee. The exterior has a stainless steel finish and the ice maker itself is made of durable stainless steel.
Ice Maker Details
- Part of the Elevation Series
- 1,560-lb. maximum daily ice production
- 1,210-lb. AHRI-certified daily ice production
- Produces half-size cubes
- Cube dimensions: 3/8 in. x 7/8 in. x 7/8 in.
- Self-contained condenser is air cooled with a dual exhaust
- Durability provided with nickel-plated evaporator
- Harvest Assist funnels ice into the included bin
- LED display for status updates
- 1-push controls enable sanitizing and descaling
- Plastic foodzone with removable, dishwasher-safe components
- PURE ICE antimicrobial offers protection from bacteria
- Made of rust-resistant stainless steel
- Ideal incoming water pressure: 20-60 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 16,000-BTU heat transfer capacity
Product Features
Ice Bin Details
- 1,320-lb. application capacity
- Heavy-duty door opened with 1 hand
- Door stays open while ice is retrieved
- Poly liner facilitates sanitary storage
- Resilient stainless steel construction
- Ice shield reduces spills and controls ice flow
- First-in, first-out ice controls
Dimensions & Utilities
- Ice maker: 48.25 in. W x 24.25 in. D x 26 in. H
- Ice bin: 48 in. W x 31 in. D x 65 in. H
- 26.1 A, 4.4 kW
- 208-230 V/60 Hz/1 ph

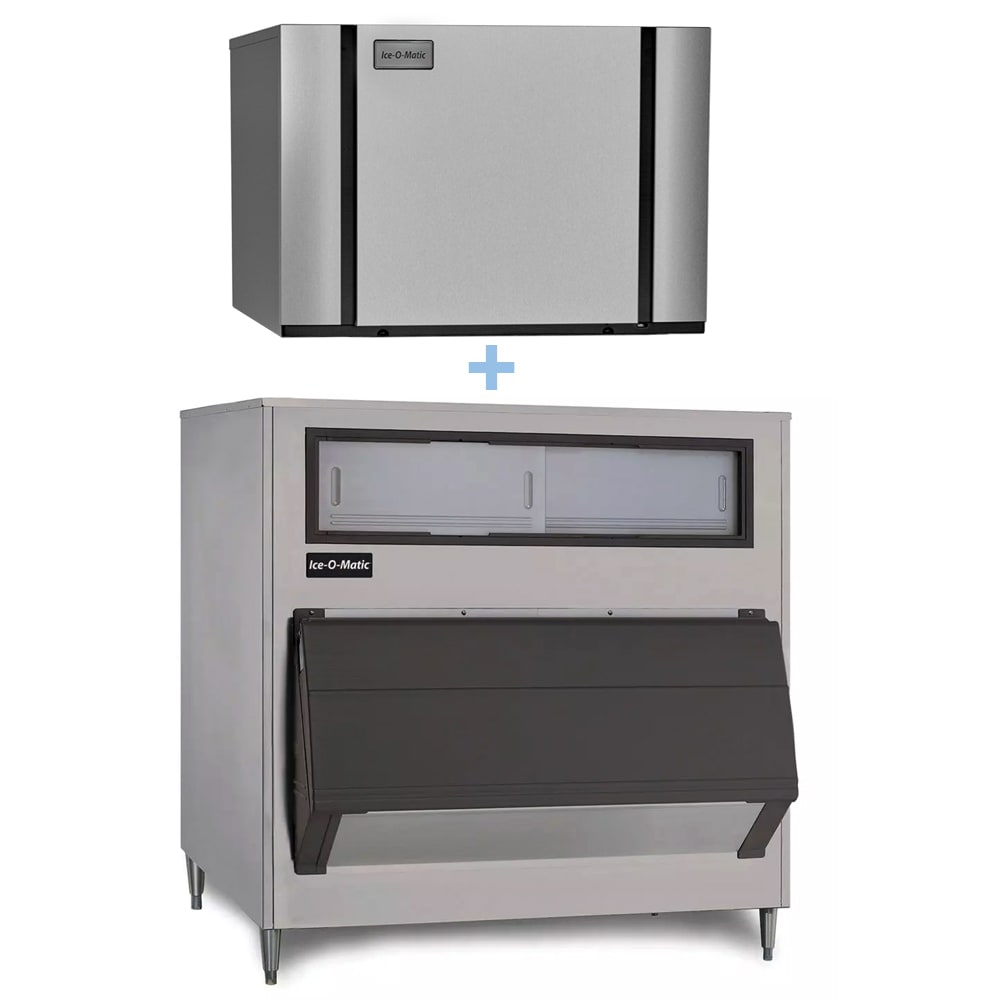

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), half size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 26.1 amps, cULus, NSF, CE; Ice Bin: 1320 lb storage capacity, 48″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
