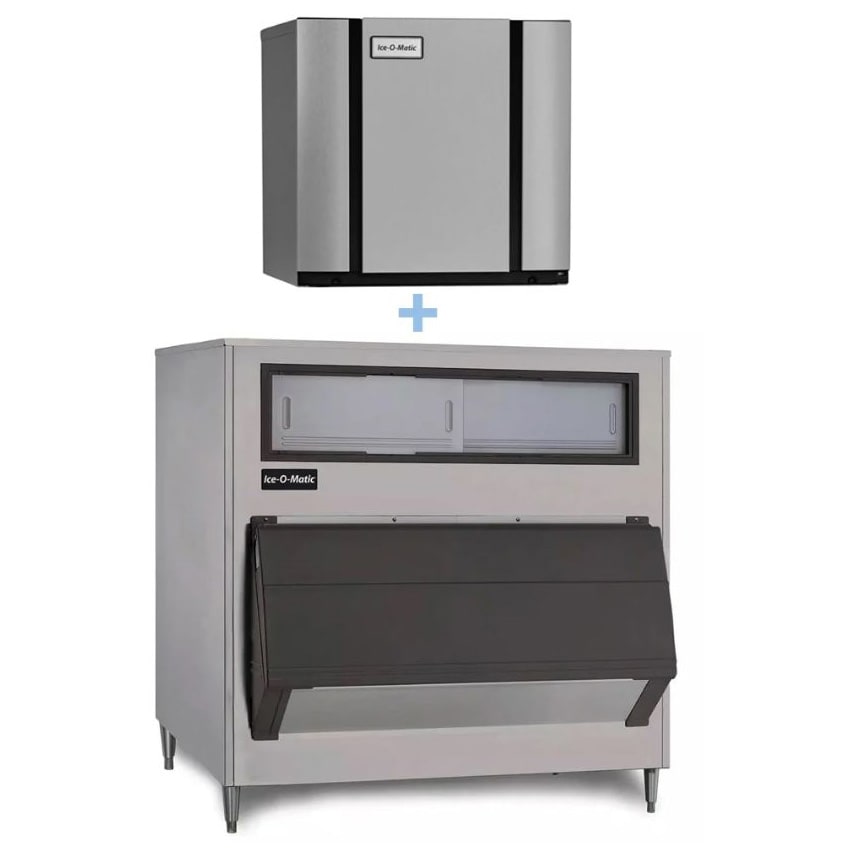

Ice-O-Matic CIM1446FW/B1600-60 1560 lb Full Cube Ice Maker w/ Bin – 1660 lb Storage, Water Cooled, 208-230v/1ph

To ensure product is fresh when retrieved from the Ice-O-Matic CIM1446FW/B1600-60 ice maker’s bin, it operates on a first-in, first-out basis. For sanitary storage, the bin is poly lined, and to access it, the heavy-duty door can be opened with one hand. To reduce the risk of injury, the door remains open until closed, preventing slamming. The exterior is made of resilient, dent-resistant stainless steel and the machine is protected from fast microbial growth with built-in PURE ICE antimicrobial.

The Ice-O-Matic CIM1446FW/B1600-60 full-cube ice maker with bin holds 1,660 pounds for later use. This machine can craft 1,440 to 1,560 pounds daily depending on operating conditions, and because it produces full-size cubes of ice, it’s great for businesses that serve alcoholic beverages or soft drinks. Throughout the day, users can monitor the system’s status on an LED display, and when they want to clean the unit, they can push a single button to begin sanitizing and descaling. The foodzone is made of plastic that can be wiped clean, and its components can be removed and washed in a dishmachine.

Ice Maker Details

• Part of the Elevation Series
• 1,560-lb. maximum daily ice production
• 1,440-lb. AHRI-certified daily ice production
• Creates full-size cubes
• Cube dimensions: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Harvest Assist technology diverts ice into the bin or dispenser
• LED status display can be monitored for updates
• Descaling and sanitizing controlled with 1 push
• Foodzone is made of plastic to facilitate cleaning
• Removable, dishwasher-safe foodzone components
• Self-contained condenser is water cooled
• Dual exhaust with top and side air discharge
• PURE ICE antimicrobial for sanitary use
• Evaporator is nickel plated for resilience
• Exterior made of durable stainless steel
• Ideal incoming water pressure: 20-60 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• 16,700-BTU heat transfer capacity

Product Features

Ice Bin Details

• 1,660-lb. application capacity
• Ice flow controlled with ice shield to prevent spillage
• Interior has a corrosion-resistant poly liner
• 1-handed door doesn’t slam when it’s opened
• Durable stainless steel exterior
• First-in, first-out ice control optimizes freshness

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26 in. H
• Ice bin: 60 in. W x 31 in. D x 65 in. H
• 18.9 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 1660 lb storage capacity, 60″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
