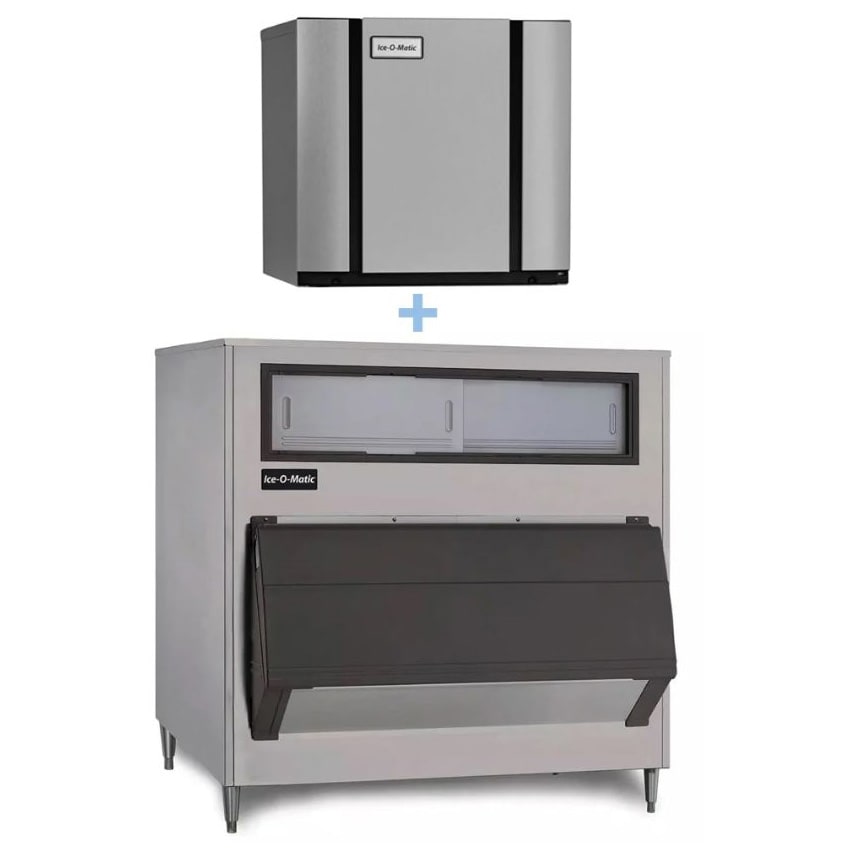

Ice-O-Matic CIM1446FW/B1325-60 1560 lb Full Cube Ice Maker w/ Bin – 1325 lb Storage, Water Cooled, 208-230v/1ph

The Ice-O-Matic CIM1446FW/B1325-60 full-cube ice maker with bin has a dual exhaust that discharges air from the top and side; this reduces the risk of obstruction and maximizes installation possibilities. The condenser is water cooled and self-contained, so it can used right away after plugging it in. To move ice into the bin, it uses Harvest Assist technology, and to read current status updates, this unit includes an LED display. Cleaning is facilitated with one-push sanitizing and descaling controls, and the foodzone is made of plastic that can be wiped down. To remove the foodzone’s components, they snap out and can be placed in a dishmachine for cleaning.

Producing full-size cubes of ice, the Ice-O-Matic CIM1446FW/B1325-60 ice maker with bin is useful in establishments that serve alcoholic beverages and soft drinks. If the environmental temperature is suitable, it can craft a maximum of 1,560 pounds of ice per day, though it’s more likely to generate 1,440 pounds daily in most kitchens. To reduce germ spread in crowded surroundings, this unit’s built-in PURE ICE antimicrobial inhibits the bacterial growth. The bin stores 1,325 pounds of ice for immediate use.

Ice Maker Details

• Part of the Elevation Series
• 1,560-lb. maximum daily ice production
• 1,440-lb. AHRI-certified daily ice production
• Creates full-size cubes
• Cube dimensions: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Harvest Assist technology guides ice to bin or dispenser
• LED status display can be monitored
• Descaling and sanitizing enabled with the push of a button
• Simple cleaning with a plastic foodzone
• Removable foodzone components are dishwasher safe
• Water-cooled, self-contained condenser
• Dual side and top air exhaust
• PURE ICE antimicrobial built in for sanitary purposes
• Resilient nickel-plated evaporator
• Durable exterior made of stainless steel
• Ideal incoming water pressure: 20-60 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• 16,700-BTU heat transfer capacity

Product Features

Ice Bin Details

• 1,325-lb. application capacity
• Ice shield reduces the amount of ice spilled
• Interior has a corrosion-resistant poly lining
• Door can be opened with 1 hand
• Constructed of strong stainless steel
• Ice controlled on a first-in, first-out basis

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26 in. H
• Ice bin: 60 in. W x 31 in. D x 56 in. H
• 18.9 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 1325 lb storage capacity, 60″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
