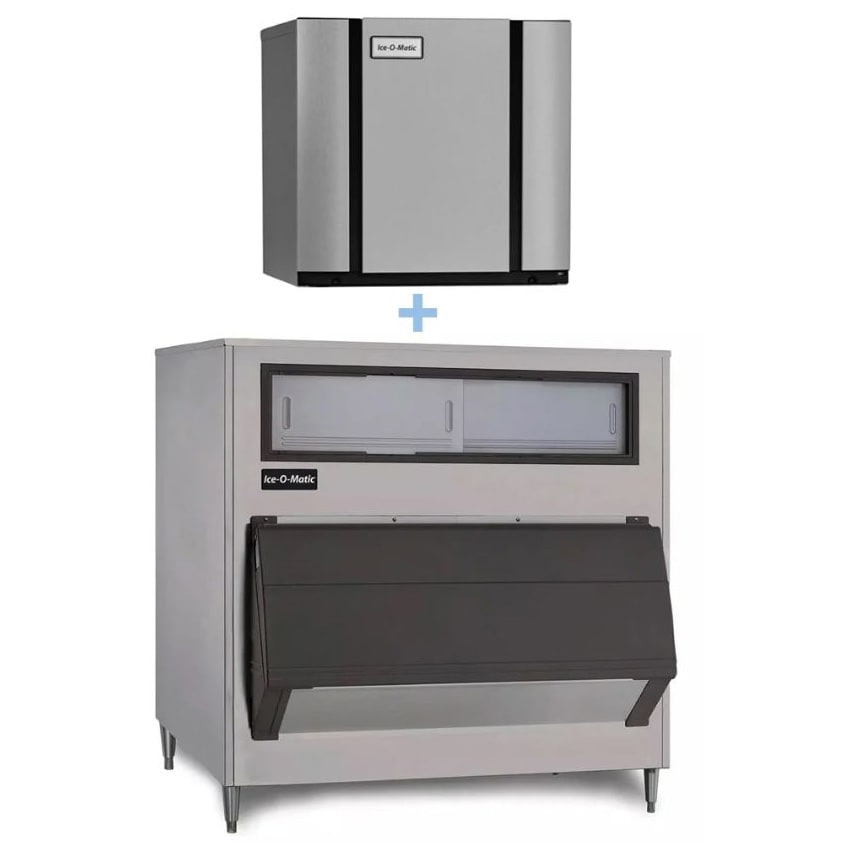

Ice-O-Matic CIM1446FW/B110PS 1560 lb Full Cube Ice Maker w/ Bin – 854 lb Storage, Water Cooled, 208-230v/1ph

The Ice-O-Matic CIM1446FW/B110PS ice maker with bin performs sanitizing and descaling with the push of a button. It’s protected by PURE ICE antimicrobial to reduce germ spread when many employees use it. To facilitate cleaning, the foodzone is made of plastic that can be wiped down without crevices that harbor bacteria, and its components snap out for dishwasher cleaning. Guiding ice into the bin, this unit implements Harvest Assist technology. The bin holds as much as 854 pounds of ice.

For durability, the evaporator in the Ice-O-Matic CIM1446FW/B110PS full-cube ice maker with bin is nickel plated, and the exterior is made of resilient, rust-resistant stainless steel to extend its service life. The bin is lined with polyethylene to resist corrosion and is insulated with foam to prevent ice from melting while it’s stored. Using a self-contained, water-cooled condenser, this unit generates anywhere from 1,440 to 1,560 pounds of ice daily. Because it produces full-cube ice, it can be used in restaurants and hotels that serve mixed beverages and soft drinks.

Ice Maker Details

• Part of the Elevation Series
• 1,560-lb. maximum daily ice production
• 1,440-lb. AHRI-certified daily ice production
• Crafts full-size cubes
• Cube dimensions: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Readout provided on LED status display
• Cleaning facilitated with 1-touch sanitizing and descaling
• Plastic foodzone doesn’t harbor bacteria
• Foodzone components are dishwasher safe and removable
• Self-contained, water-cooled condenser with side and top exhaust
• Protected with built-in PURE ICE antimicrobial
• Evaporator is durable and nickel plated
• Rust-resistant stainless steel exterior
• Guides ice with Harvest Assist technology
• Ideal incoming water pressure: 20-60 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient air temperature: 50-100 degrees F
• 16,700-BTU heat transfer capacity

Ice Bin Details

• 854-lb. application capacity
• Sloped, top-hinged door
• Corrosion-resistant polyethylene interior
• Foam insulation prevents ice from melting
• Constructed of durable stainless steel
• 6-in. adjustable legs

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26 in. H
• Ice bin: 48 in. W x 31 in. D x 50 in. H
• 18.9 A, 3.72 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker w/ Bin, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1440 lb at 90°/70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, cULus, NSF, CE; Ice Bin: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
