Description

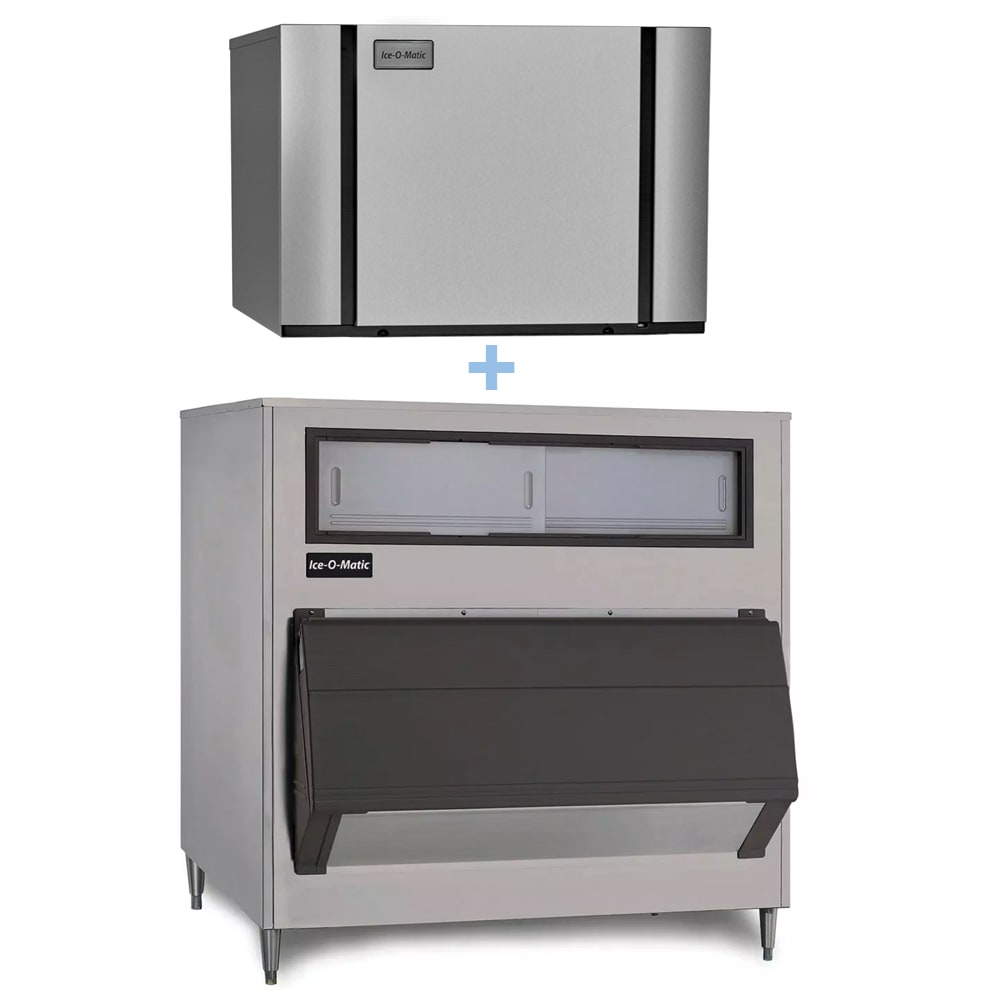

Ice-O-Matic CIM1446FA/B1600-60
To reduce the risk of spillage, ice flow is controlled in the Ice-O-Matic CIM1446FA/B1600-60 ice maker/bin combo with an ice shield. The bin holds 1,660 pounds of ice, and to access it, the door can be propped open to prevent it from slamming on users. It’s lined with poly to offer resistance against corrosion and the exterior is made of durable, rust-resistant stainless steel. With its self-contained, air-cooled condenser, this unit produces 1,210 to 1,560 pounds of ice daily depending on environmental conditions. It creates full-size cubes of ice for use in a mixed beverage or soft drink.
The Ice-O-Matic CIM1446FA/B1600-60 full-cube ice machine with bin performs sanitizing and descaling at the push of a button, ensuring ice stays fresh and tasty. It’s protected with PURE ICE antimicrobial to slow microbial growth and its foodzone is made of plastic that can be wiped clean with no seams to harbor bacteria. This foodzone has removable components that can be cleaned in the dishwasher, and to provide status updates, the unit has an LED display.

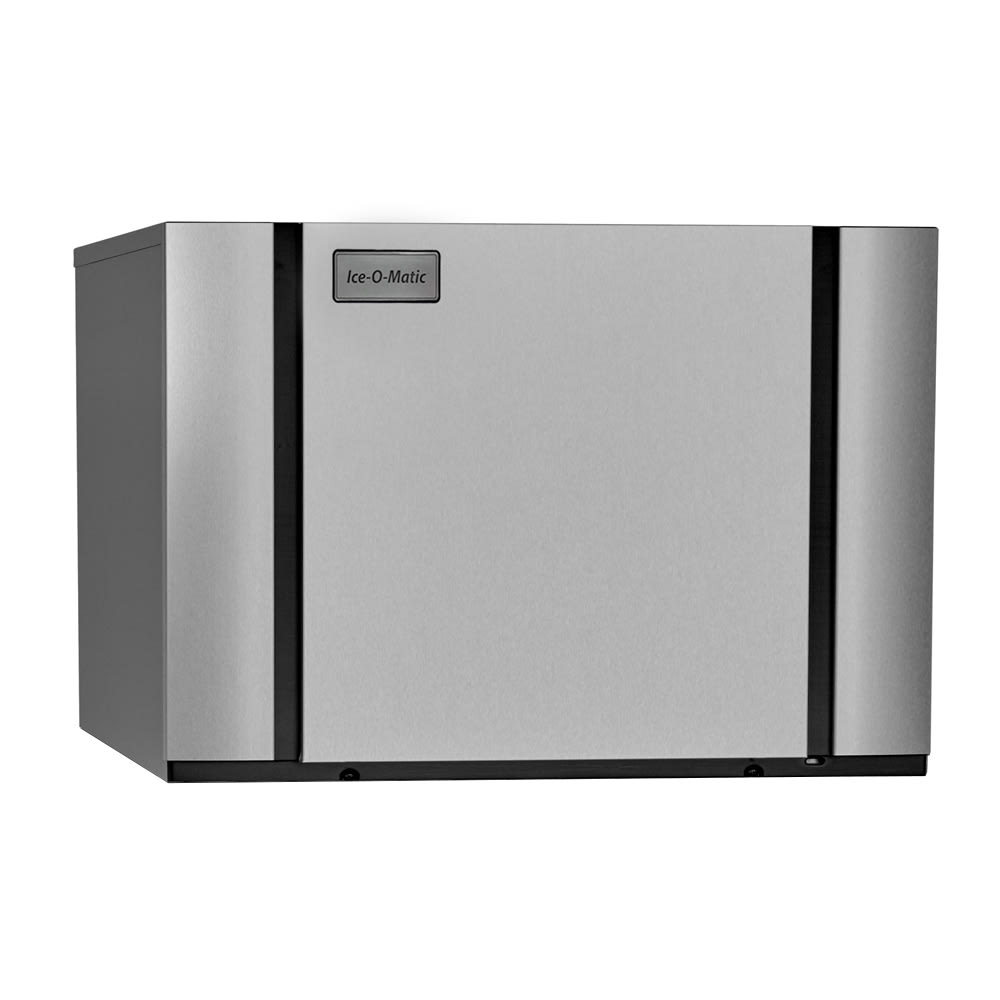

Ice Maker Details
- Part of the Elevation Series
- 1,560-lb. maximum daily ice production
- 1,210-lb. AHRI-certified daily ice production
- Generates full-size cubes
- Cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
- Self-contained, air-cooled condenser
- Dual exhaust from the top and side
- PURE ICE antimicrobial inhibits microbe growth
- LED status display offers updates
- Single-touch sanitizing and descaling
- Foodzone with removable, dishwasher-safe components
- Evaporator is nickel plated for durability
- Exterior is stainless steel
- Harvest Assist pushes ice into the bin
- Ideal incoming water pressure: 20-60 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient air temperature: 50-100 degrees F
- 22,000-BTU heat transfer capacity
Product Features

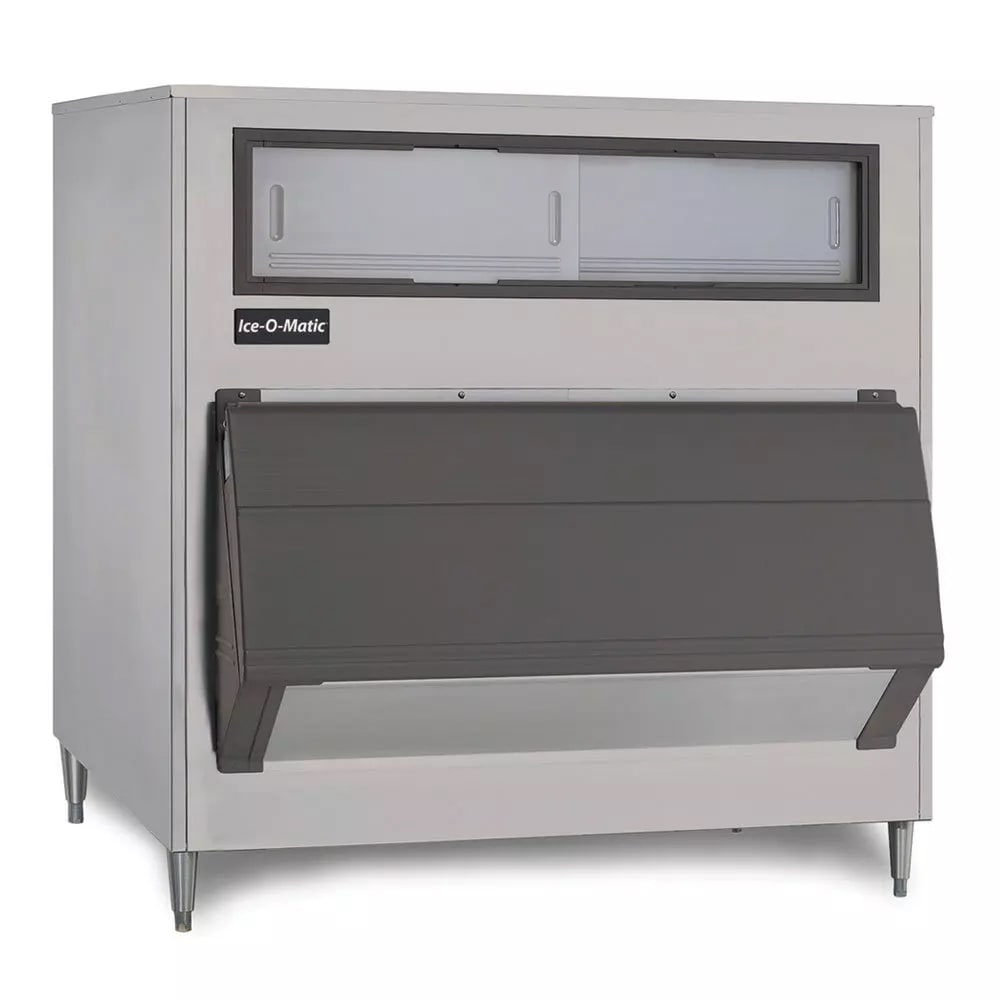

Ice Bin Details
- 1,660-lb. application capacity
- Heavy-duty door stays open for interior access
- Corrosion-resistant poly liner
- Controls flow using its ice shield
- First-in, first-out ice management
- Resilient stainless steel construction
- Universal adapter kit is included
Dimensions & Utilities
- Ice maker: 48.25 in. W x 24.25 in. D x 26.8 in. H
- Ice bin: 60 in. W x 31 in. D x 65 in. H
- 26.1 A, 4.4 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 26.1 amps, cULus, NSF, CE; Ice Bin: 1660 lb storage capacity, 60″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
