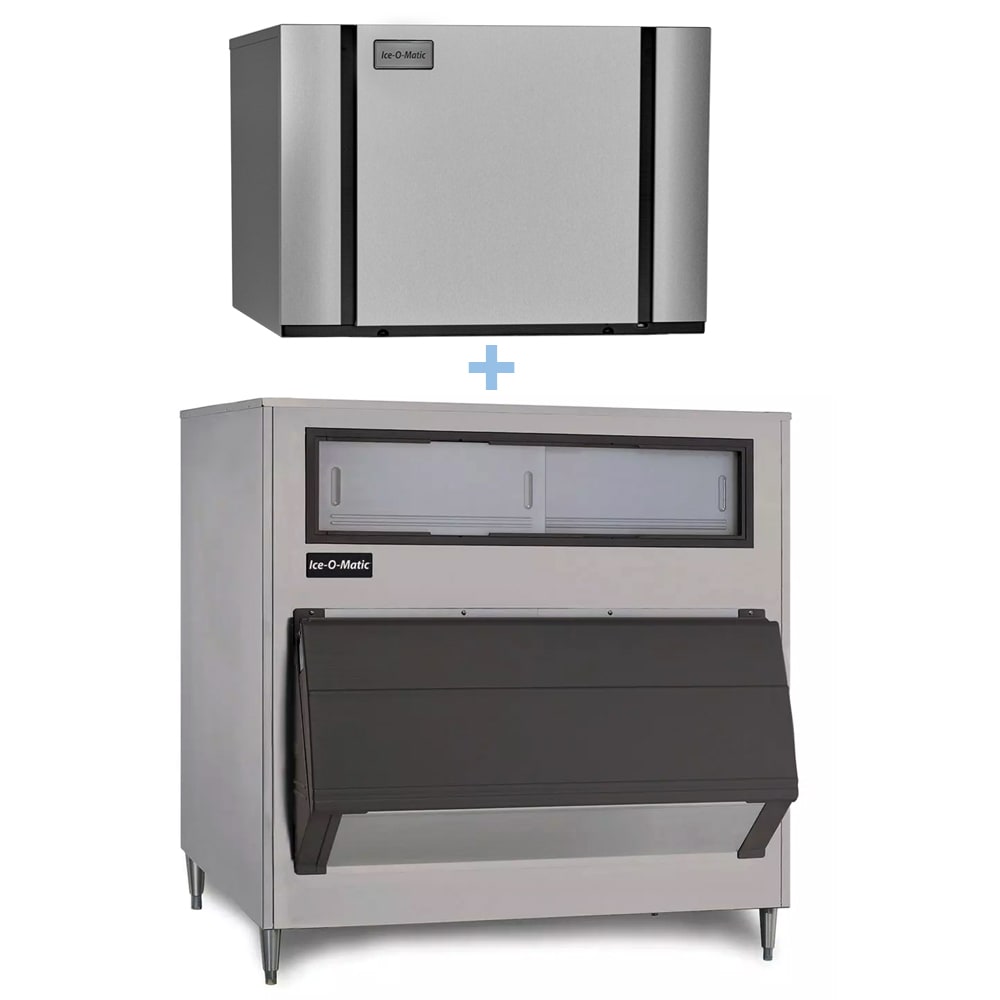

Ice-O-Matic CIM1446FA/B1300-48 1560 lb Full Cube Ice Maker w/ Bin – 1320 lb Storage, Air Cooled, 208-230v/1ph

To facilitate constant monitoring, the Ice-O-Matic CIM1446FA/B1300-48 ice machine’s LED display provides routine status updates. Its plastic food zone is fitted with dishmachine-safe components, and its PURE ICE antimicrobial agent inhibits the growth of harmful mold, mildew, and bacteria. Due to its dual-exhaust system, air is discharged from the top and the side to reduce the risk of overheating or obstruction. This air-cooled unit utilizes a self-contained condenser to streamline installation and service.

The Ice-O-Matic CIM1446FA/B1300-48 ice maker’s bin accommodates as much as 1,320 pounds of ice, making it a good choice for high-volume applications. To reduce the risk of wasteful spills, it features an ice shield that controls flow. It uses a first-in, first-out management system to maintain consistently fresh ice, and its polyethylene liner ensures optimal sanitation. Constructed of durable stainless steel, this bin can withstand heavy use in commercial environments.

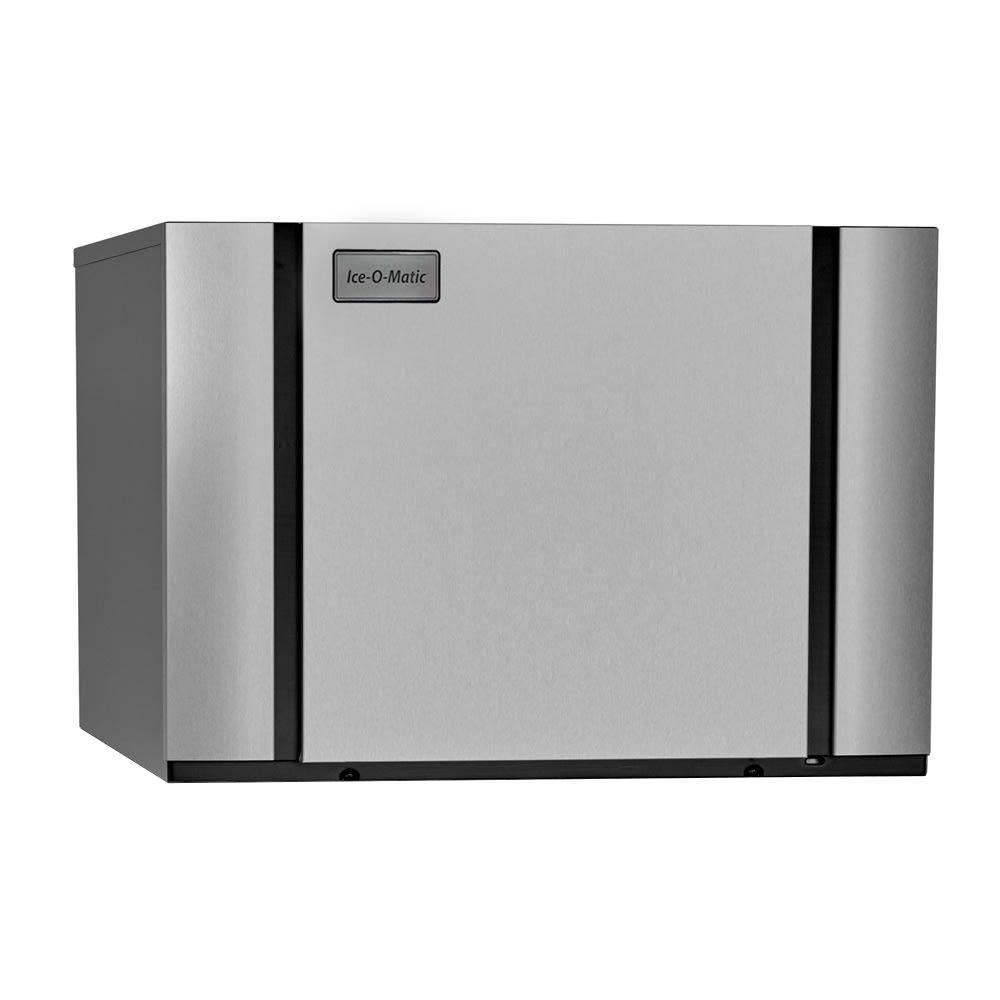

Ice Maker Details

• Part of the Elevation Series
• 1,560-lb. maximum daily ice production
• 1,210-lb. AHRI daily ice production
• Makes full-size cubes
• Cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Air cooled
• Operators can monitor status with LED display
• Treated with PURE ICE antimicrobial to optimize sanitation
• Dual-exhaust system discharges air from side and top
• 1-touch descaling and sanitizing features
• Self-contained condenser
• Plastic food zone eliminates bacteria-harboring crevices
• Components in food zone are dishmachine safe
• Self-contained condenser
• Uses R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 22,000-BTU heat transfer capacity

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26.80 in. H
• Ice bin: 48 in. W x 31 in. D x 65 in. H
• 19.2 A, 4.2 kW
• 208-230 V/60 Hz/1 ph

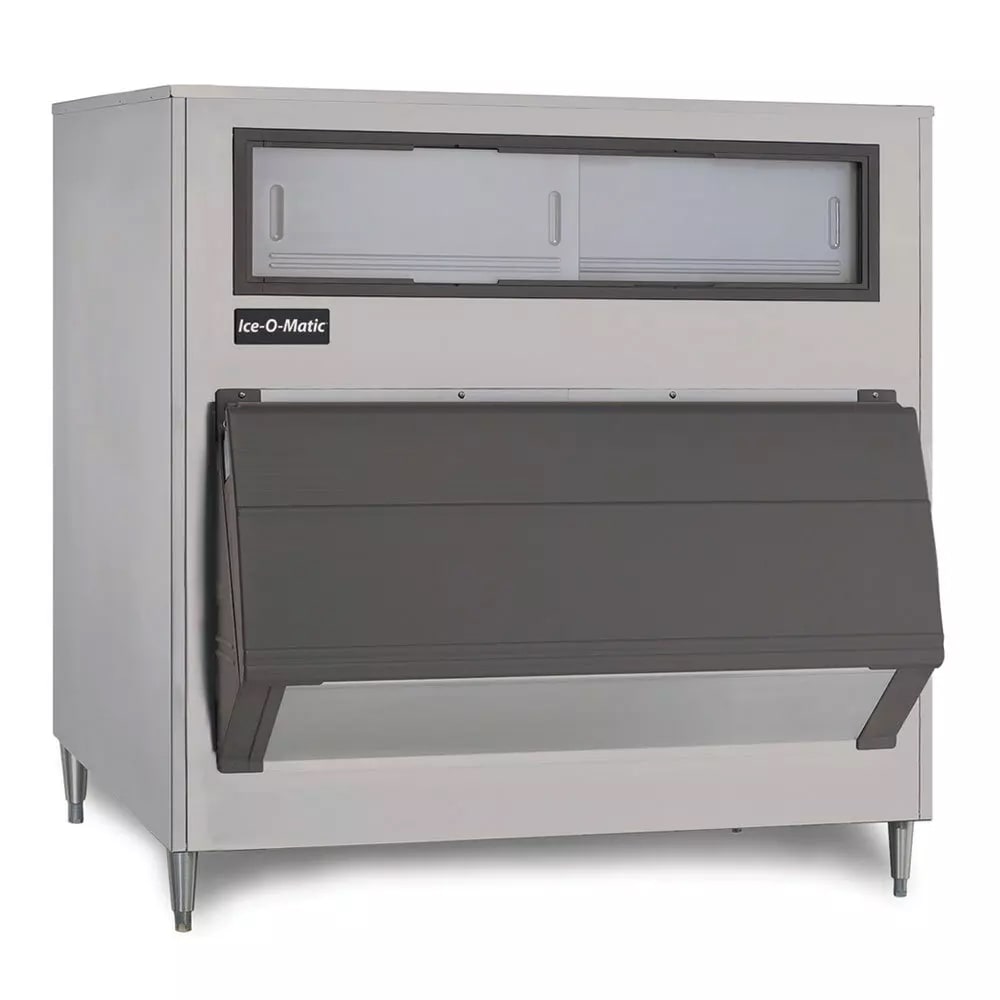

Ice Bin Details

• 1,320-lb. application capacity
• Made of rust- and dent-resistant stainless steel
• Utilizes first-in, first-out ice management to ensure freshness
• Stay-open door enables 1-handed access to ice
• Spills controlled with ice shield
• Polyethylene interior liner resists corrosion

Product Overview

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 26.1 amps, cULus, NSF, CE; Ice Bin: 1320 lb storage capacity, 48″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
