Description

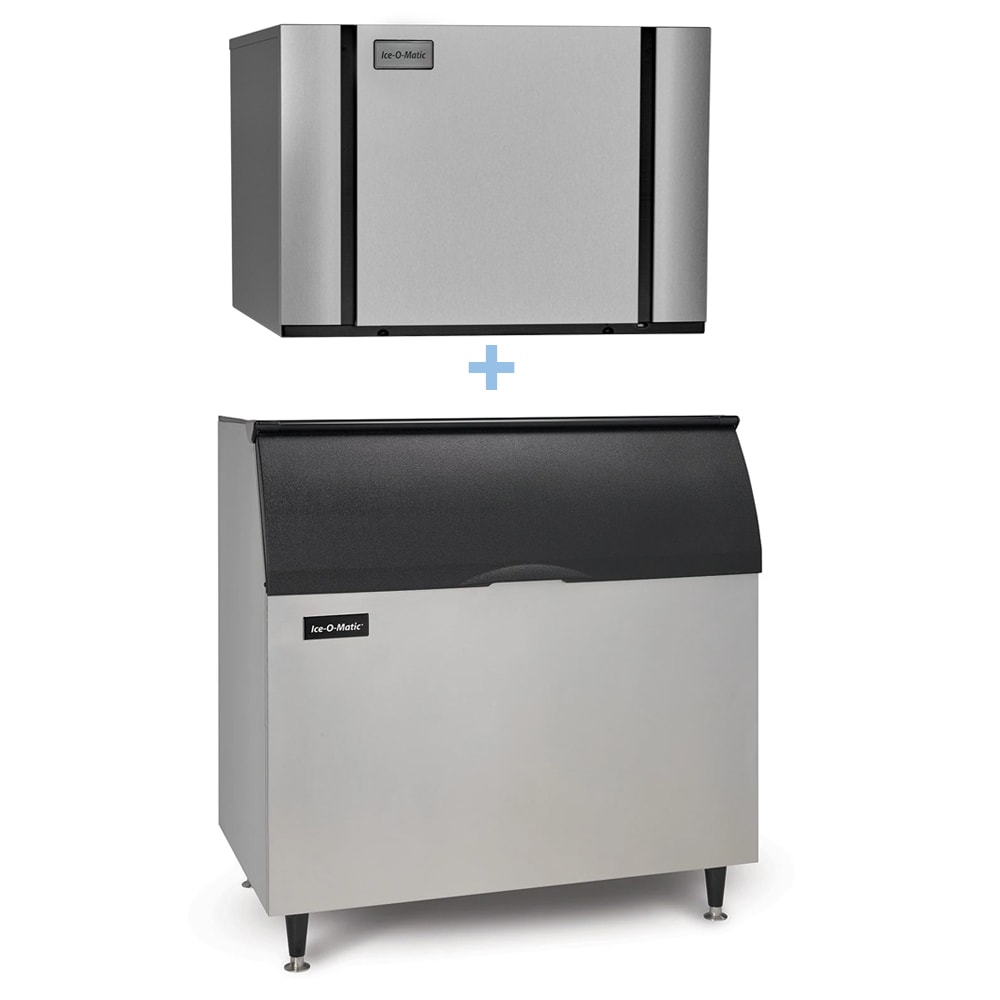

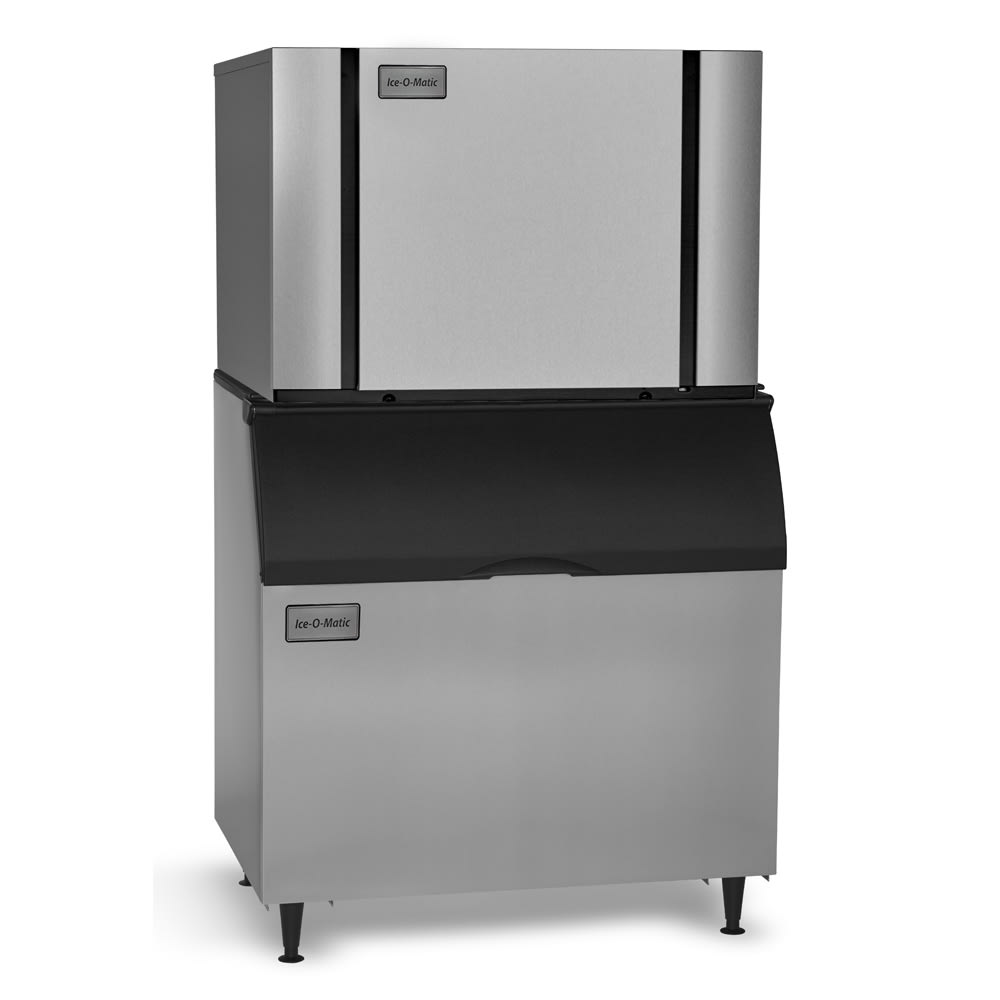

Ice-O-Matic CIM1446FA/B110PS
Users can monitor the operational status of the Ice-O-Matic CIM1446FA/B110PS ice machine/bin combo with a clear LED display. Because its dual-exhaust system discharges air from the top in addition to the side, it can be installed against a wall or in a corner without sustaining damage from vent obstruction or overheating. Treated with PURE ICE antimicrobial, it inhibits the growth of mold, mildew, and bacteria, and its one-touch descaling and sanitizing optimizes performance and cleanliness. This unit can produce a maximum of 1,560 pound of ice per day if ambient conditions are ideal.
The exterior of the Ice-O-Matic CIM1446FA/B110PS ice machine’s accompanying bin is constructed of aluminum‚Äîa durable material that provides excellent defense against corrosion. Its polyethylene liner can be quickly wiped clean, and its 6-inch legs elevate the unit to enable users to sweep beneath it. This bin accommodates a maximum of 854 pounds of ice, which operators can access through its top-hinged, sloped front door.
Ice Maker Details
- Part of the Elevation Series
- 1,560-lb. maximum daily ice production
- 1,210-lb. AHRI daily ice production
- Makes full-size cubes
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- Operators can monitor status with LED display
- Treated with PURE ICE antimicrobial to optimize sanitation
- Dual-exhaust system discharges air from side and top
- 1-touch descaling and sanitizing features
- Self-contained condenser
- Plastic food zone eliminates bacteria-harboring crevices
- Components in food zone are dishmachine safe
- Self-contained condenser
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 22,000-BTU heat transfer capacity
Product Features
Dimensions & Utilities

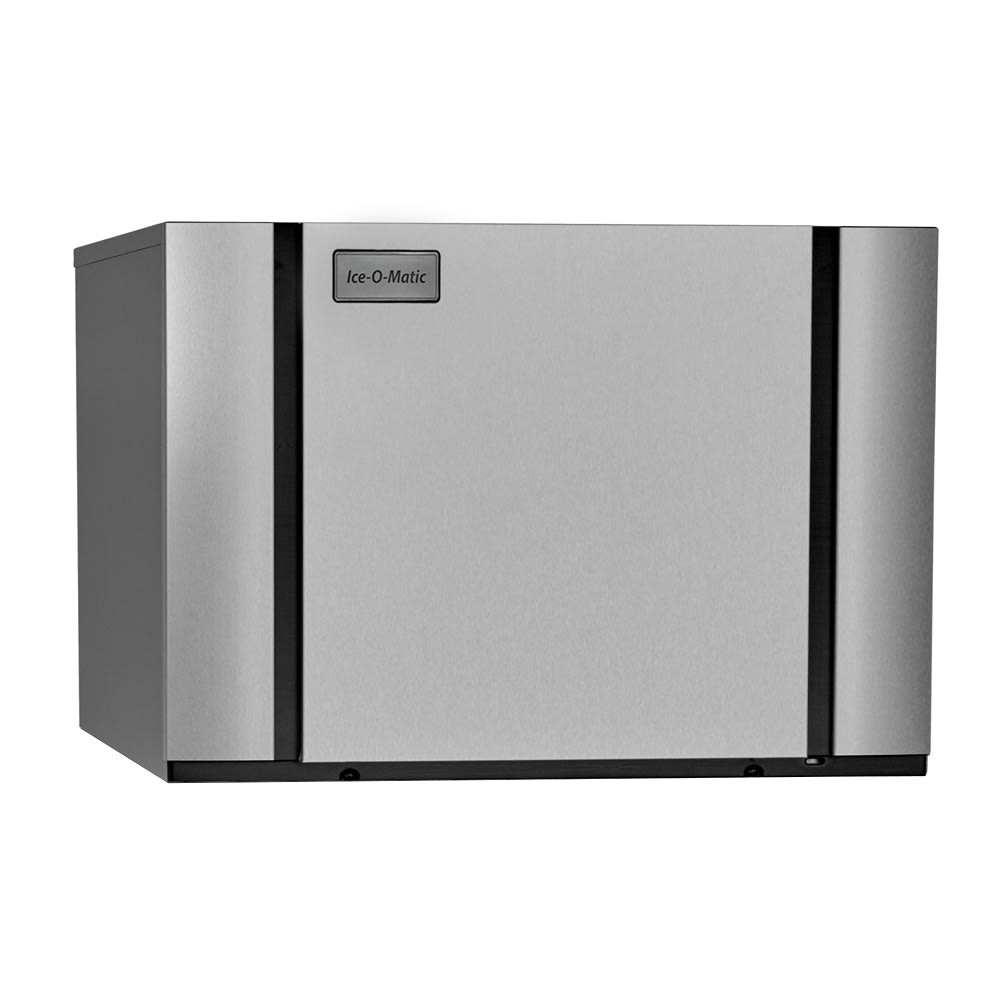

- Ice maker: 48.25 in. W x 24.25 in. D x 26.80 in. H
- Ice bin: 48 in. W x 31 in. D x 50 in. H
- 19.2 A, 4.2 kW
- 208-230 V/60 Hz/1 ph

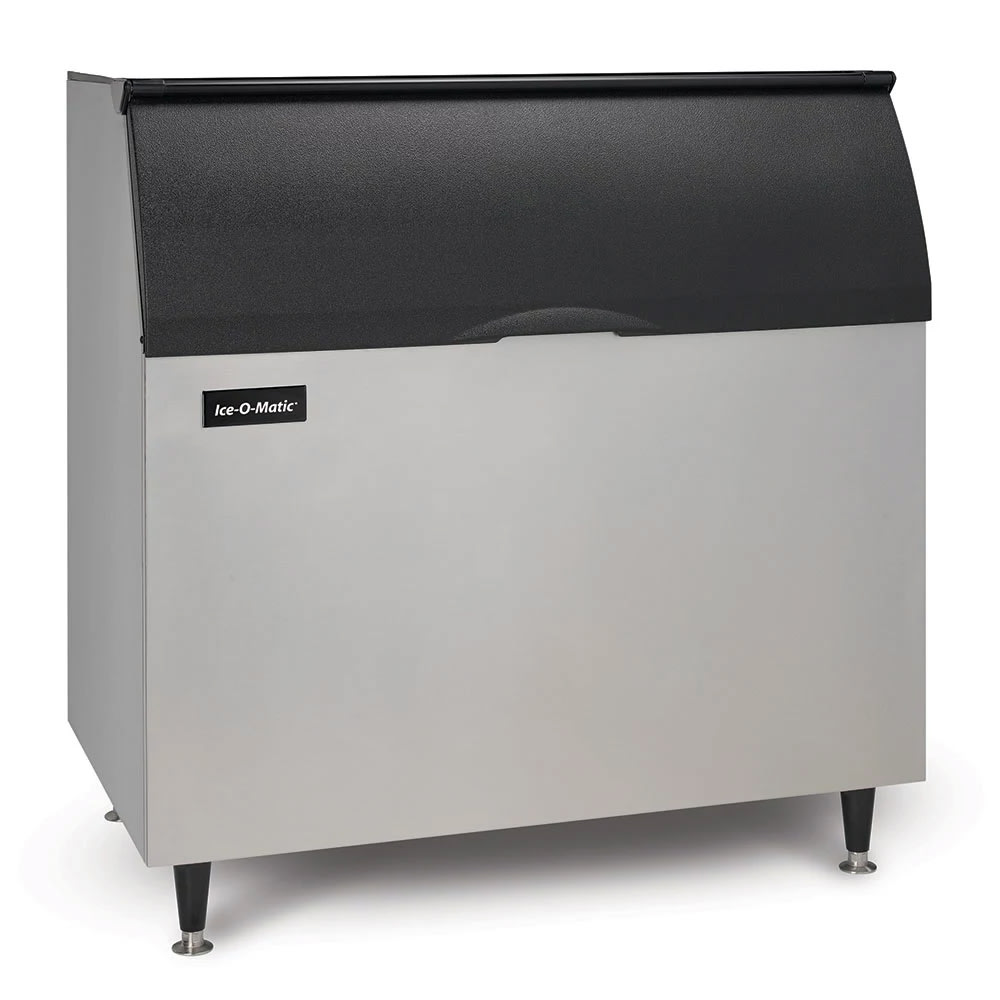

Ice Bin Details
- 854-lb. application capacity
- Sloped, top-hinged front door
- Sturdy, corrosion-resistant aluminum exterior
- Sanitary polyethylene interior liner
- Elevated on 6-in. legs
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 26.1 amps, cULus, NSF, CE; Ice Bin: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
