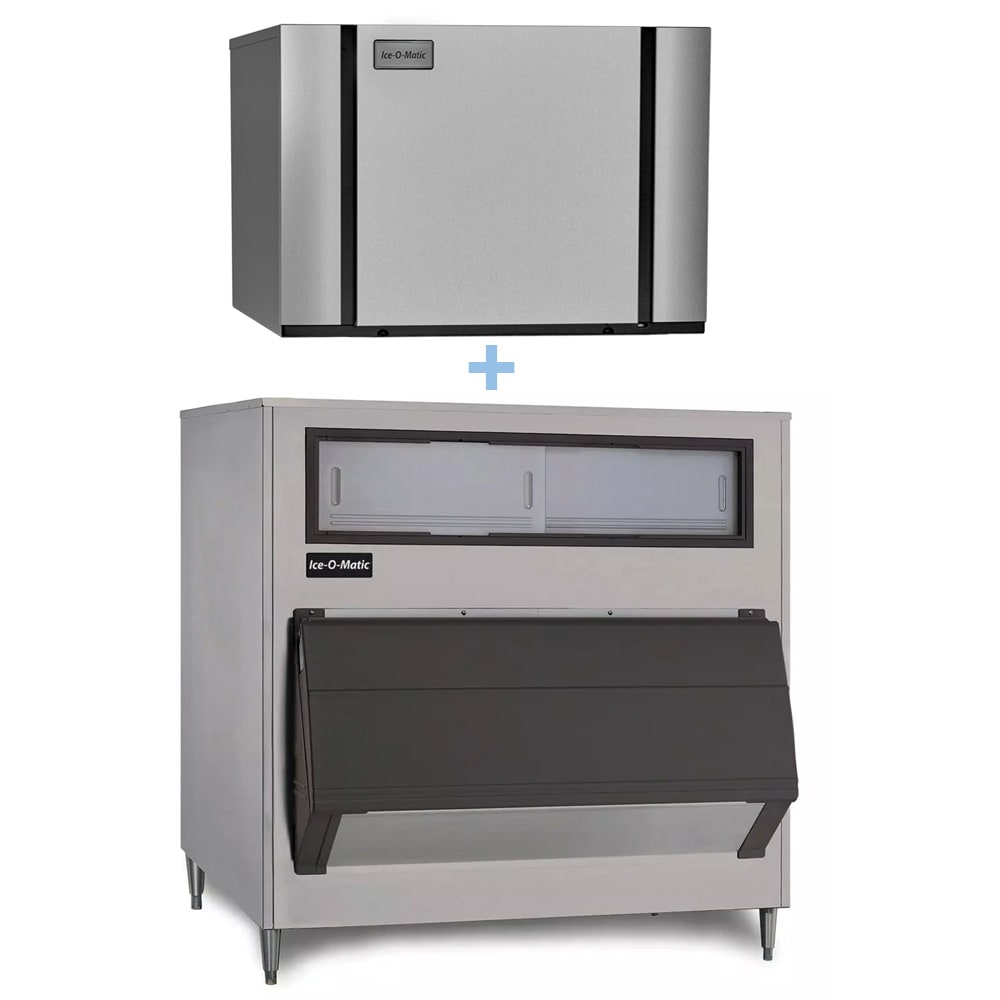

Ice-O-Matic CIM1446FA/B1000-48 1560 lb Full Cube Ice Maker w/ Bin – 1000 lb Storage, Air Cooled, 208-230v/1ph

To expedite installation, the Ice-O-Matic CIM1446FA/B1000-48 ice machine/bin combo features a self-contained condenser. It produces full-size cubes at a maximum rate of 1,560 pounds per day in ideal conditions, making it well suited for fast-paced, high-volume environments. Its plastic food zone can be quickly wiped clean, and its one-touch controls facilitate swift descaling and sanitizing. This unit features a dual-exhaust system to maximize installation possibilities.

Constructed of stainless steel, the Ice-O-Matic CIM1446FA/B1000-48 ice maker’s included bin can support rigorous use without denting, scratching, or corroding. Accommodating as much as 1,000 pounds of ice, it utilizes a first-in, first-out management system to ensure consistently fresh ice. Operators can access the bin’s contents through a stay-open door that enables convenient, one-handed scooping.

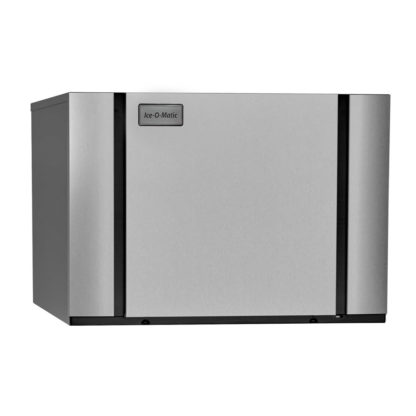

Ice Maker Details

• Part of the Elevation Series
• 1,560-lb. maximum daily ice production
• 1,210-lb. AHRI daily ice production
• Makes full-size cubes
• Cube size: ⁷/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Air cooled
• Monitoring enabled with LED status display
• PURE ICE protection inhibits growth of mildew, mold, and bacteria
• Dual-exhaust system reduces risk of obstructed exhaust
• Sanitizes and descales with 1-touch controls
• Self-contained condenser
• Plastic food zone won’t harbor dust and debris
• Components in food zone are dishmachine safe
• Self-contained condenser
• Uses R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 22,000-BTU heat transfer capacity

Product Features

Dimensions & Utilities

• Ice maker: 48.25 in. W x 24.25 in. D x 26.80 in. H
• Ice bin: 48 in. W x 31 in. D x 56 in. H
• 19.2 A, 4.2 kW
• 208-230 V/60 Hz/1 ph

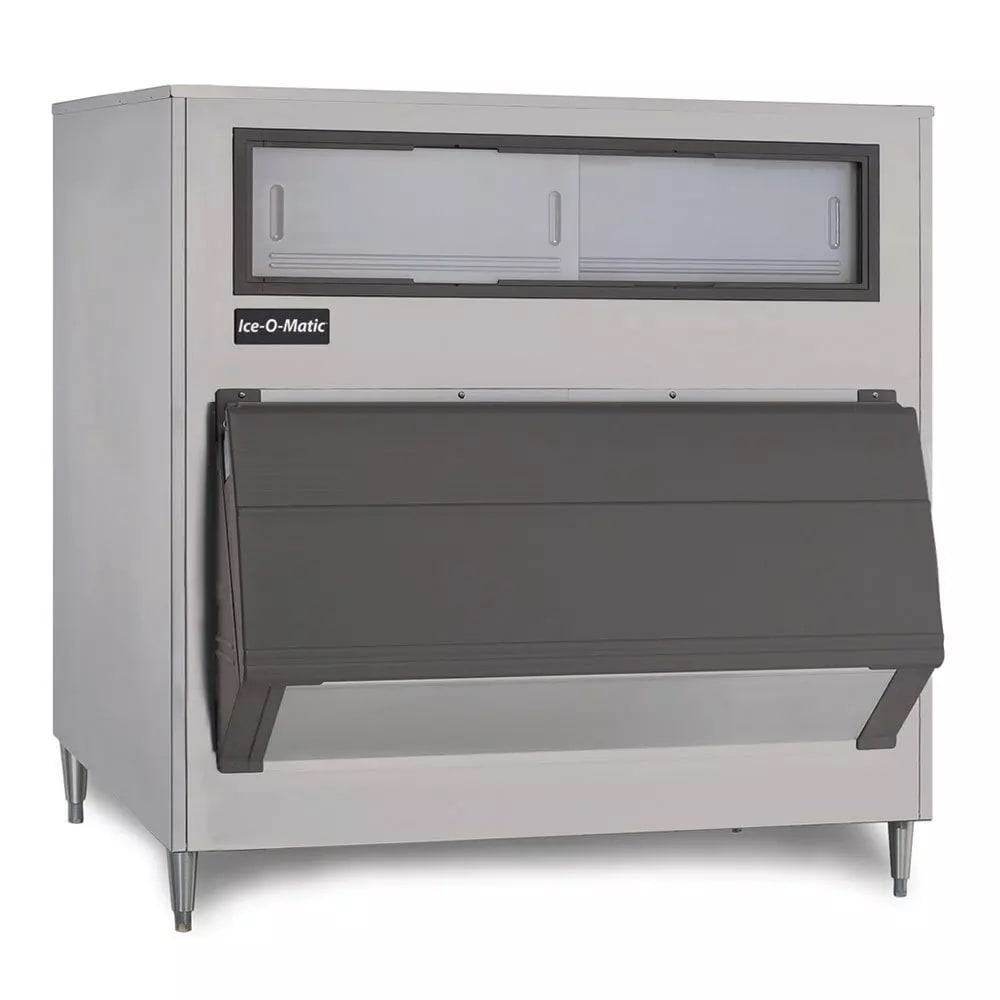

Ice Bin Details

• 1,000-lb. application capacity
• Stay-open door facilitates one-handed ice scooping
• Stainless steel construction supports heavy use
• First-in, first-out management system optimizes ice freshness
• Ice shield controls flow and reduces spills
• Simple-to-clean polyethylene interior liner

Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 26.1 amps, cULus, NSF, CE; Ice Bin: 1000 lb storage capacity, 48″W x 31″D x 56″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
