Description
Ice-O-Matic CIM1446FA Description

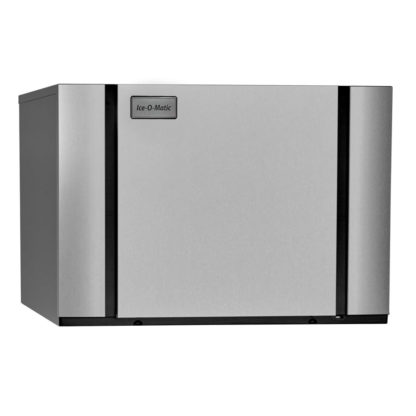

The Ice-O-Matic CIM1446FA full-cube ice maker is equipped with a plastic food zone without crevices to harbor bacteria, making it fast and easy to wipe clean. The food zone’s components are removable and dishwasher safe to further facilitate thorough cleaning. This unit descales and self-sanitizes at the push of a button, reducing necessary labor and optimizing performance.
With a maximum rate of 1,560 pounds per day in ideal conditions, the Ice-O-Matic CIM1446FA ice machine head produces full-size cubes. Because its dual-exhaust system releases air from the top and side, it can be installed in a variety of configurations without risking obstruction. To ensure users are kept up to date, it features a clearly readable LED display.
Product Details
- Part of the Elevation Series
- 1,560-lb. maximum daily ice production
- 1,210-lb. AHRI daily ice production
- Makes full-size cubes
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- PURE ICE antimicrobial protection
- Dual-exhaust system releases air from top and side for installation flexibility
- Descales and sanitizes with 1-touch controls
- Updates provided with LED status display
- Self-contained condenser
- Plastic food zone equipped with dishwasher-safe components
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 22,000-BTU heat transfer capacity
Dimensions & Utilities
- 48.25 in. W x 24.25 in. D x 26.80 in. H
- 19.2 A, 4.2 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 48″ W, approximately 1560 lb production/24 hours at 70°/50° (1210 lb at 90°/70°), full size cube, PURE ICE built in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 26.1 amps, cULus, NSF, CE
