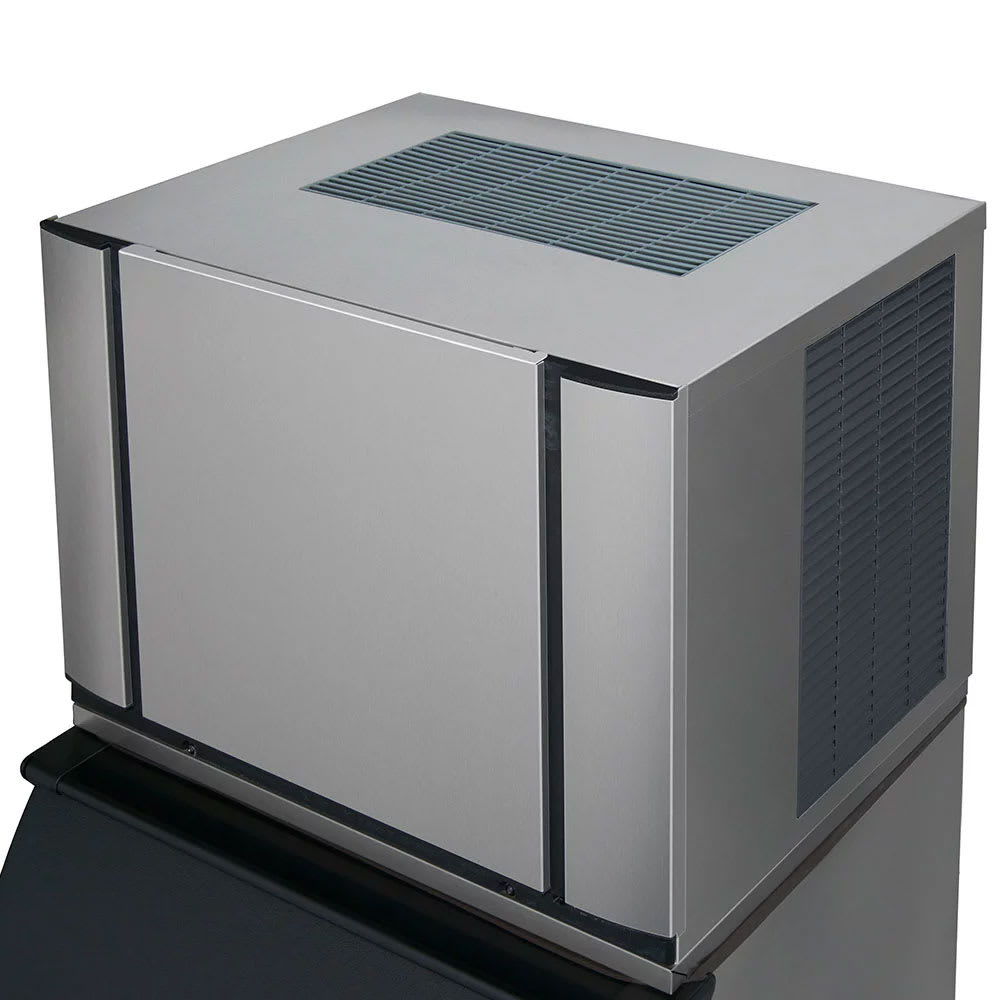

Ice-O-Matic CIM1137HR Description
To defend against the growth of harmful mold and bacteria, the Ice-O-Matic CIM1137HR half-cube ice maker is treated with antimicrobial PURE ICE. Using a remote condenser and R404A refrigerant, it produces half-size cubed ice; this type is ideal for cooling lemonade, cocktails, and soft drinks. Reducing the risk of obstructed exhaust, it uses a dual-exhaust system that discharges air from the top and the side of the unit.
The components in the Ice-O-Matic CIM1137HR ice machine’s food zone are dishwasher safe to simplify cleaning. It descales and sanitizes with the push of a button, and an LED display provides users with regular status updates. This unit is air cooled and produces a maximum of 973 pounds of ice per day if conditions are ideal.
Product Details
- Part of the Elevation Series
- 973-lb. maximum daily ice production
- 865-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- Remote condenser
- LED status display facilitates constant monitoring
- PURE ICE treatment inhibits microbial growth
- Dual-exhaust system discharges air from top and side

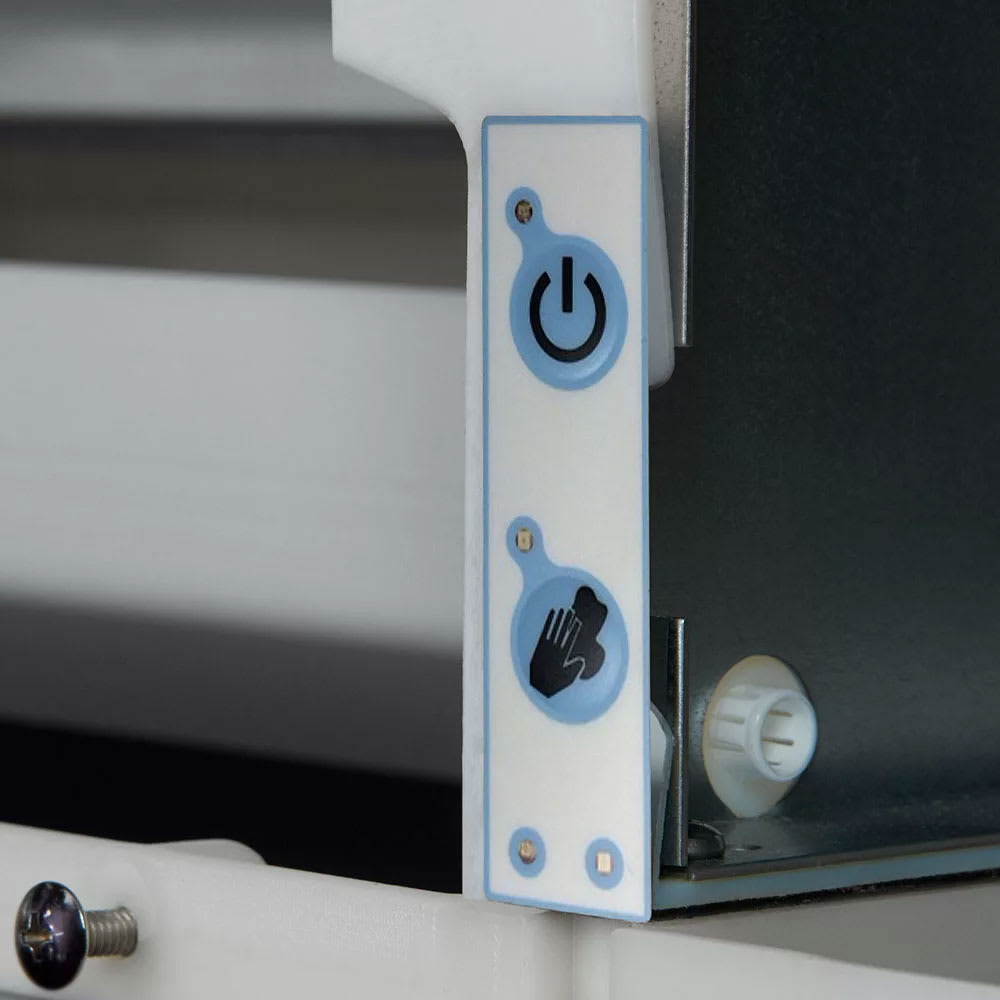

- 1-touch controls for sanitizing and descaling

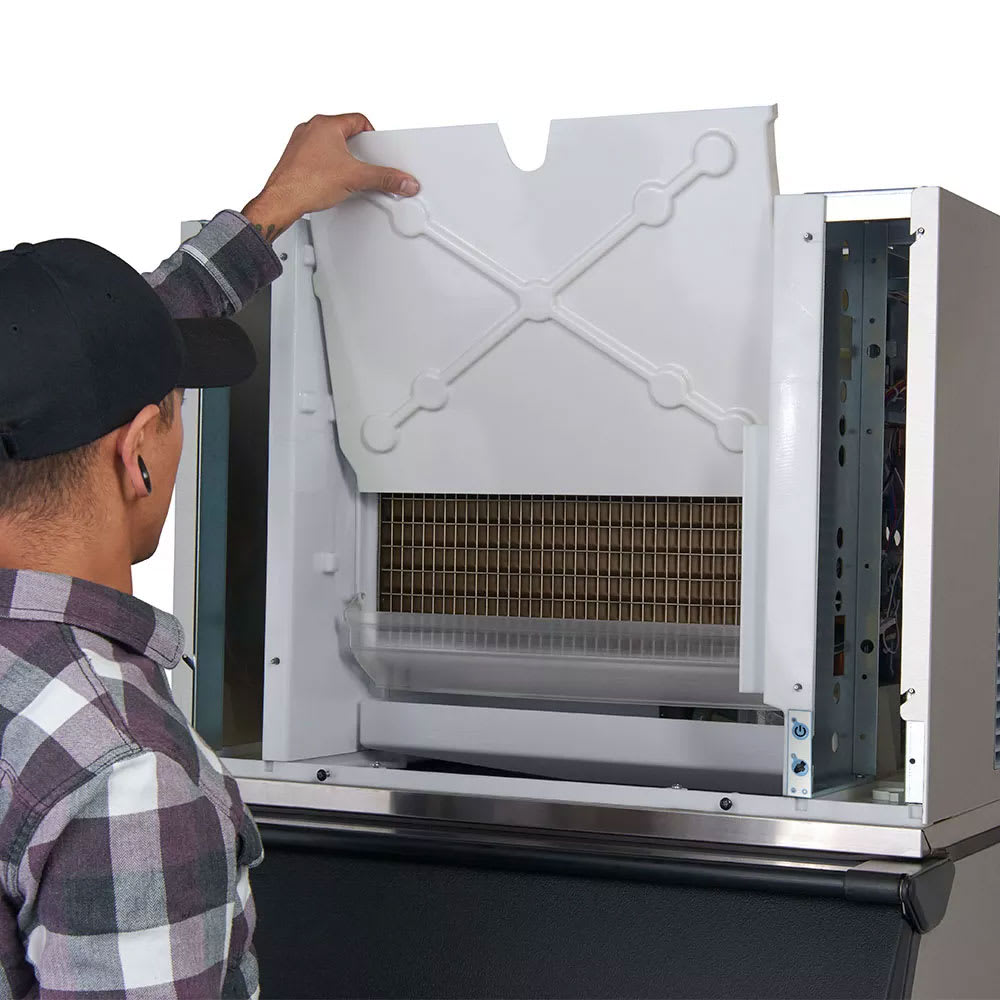

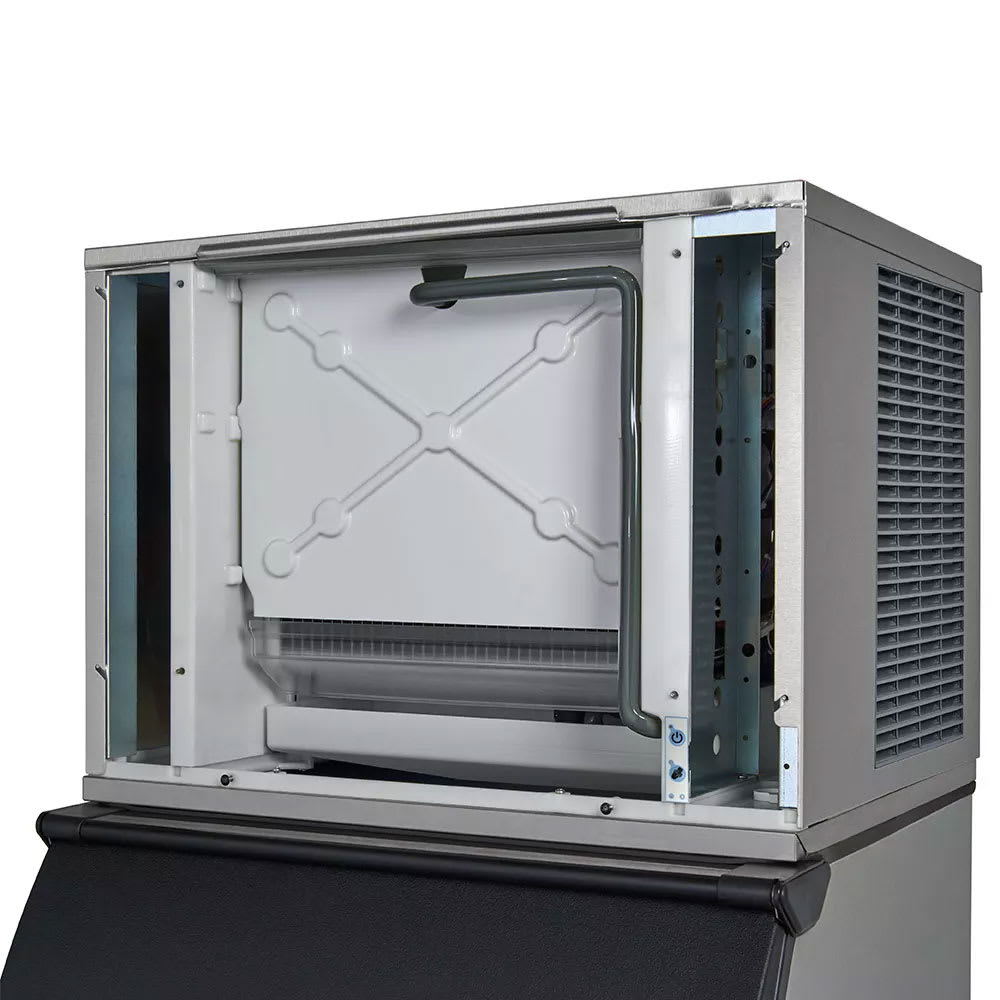

- Plastic food zone is smooth to simplify cleaning
- Components in food zone are dishmachine safe
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 18,450-BTU heat transfer capacity
Dimensions & Utilities
- 30.25 in. W x 24.25 in. D x 26.90 in. H
- 9.5 A, 4.9 kW
- 208-230 V/60 Hz/3 ph
Elevation Series Modular Cube Ice Maker, air-cooled, remote condenser, dual exhaust top/side air discharge, 30″ W, approximately 973 lb production/24 hours at 70°/50° (865 lb at 90°/70°), half-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/3-ph, 9.5 amps, cULus, NSF, CE
