Description
Ice-O-Matic CIM1137FW Description
Producing as much as 994 pounds of ice per day in ideal conditions, the Ice-O-Matic CIM1137FW ice machine head can keep up with high-volume demand. It’s protected with an antimicrobial agent that inhibits the formation of bacteria, mold, and mildew to optimize sanitation and reduce germ spread. This unit is water cooled and features a self-contained condenser to streamline the installation process.
To promote regular, thorough cleaning, the Ice-O-Matic CIM1137FW full-cube ice maker features one-touch controls for sanitizing and descaling as well as dishwasher-safe components in the food zone. It discharges air from the top and side, reducing the risk of exhaust obstruction and maximizing installation possibilities. Operators can keep a close eye on the unit’s status with an LED display that provides operational updates.
Product Details
- Part of the Elevation Series
- 994-lb. maximum daily ice production
- 927-lb. AHRI daily ice production
- Makes full-size cubes
- Cube size: 7/8 in. x 7/8 in. x 7/8 in.
- Water cooled
- Self-contained condenser
- LED display provides operational updates
- PURE ICE antimicrobial agent prevents growth of mildew, mold, and bacteria

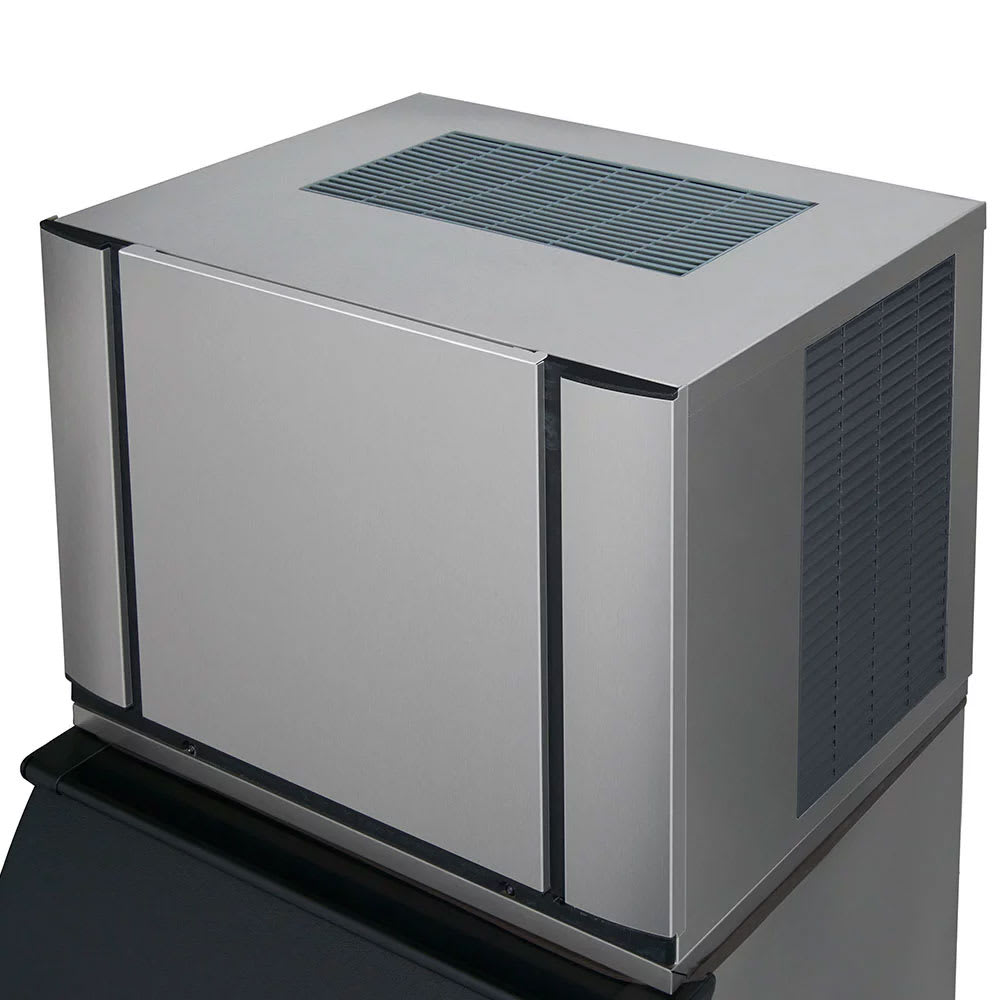

- Dual-exhaust system discharges air from top and side

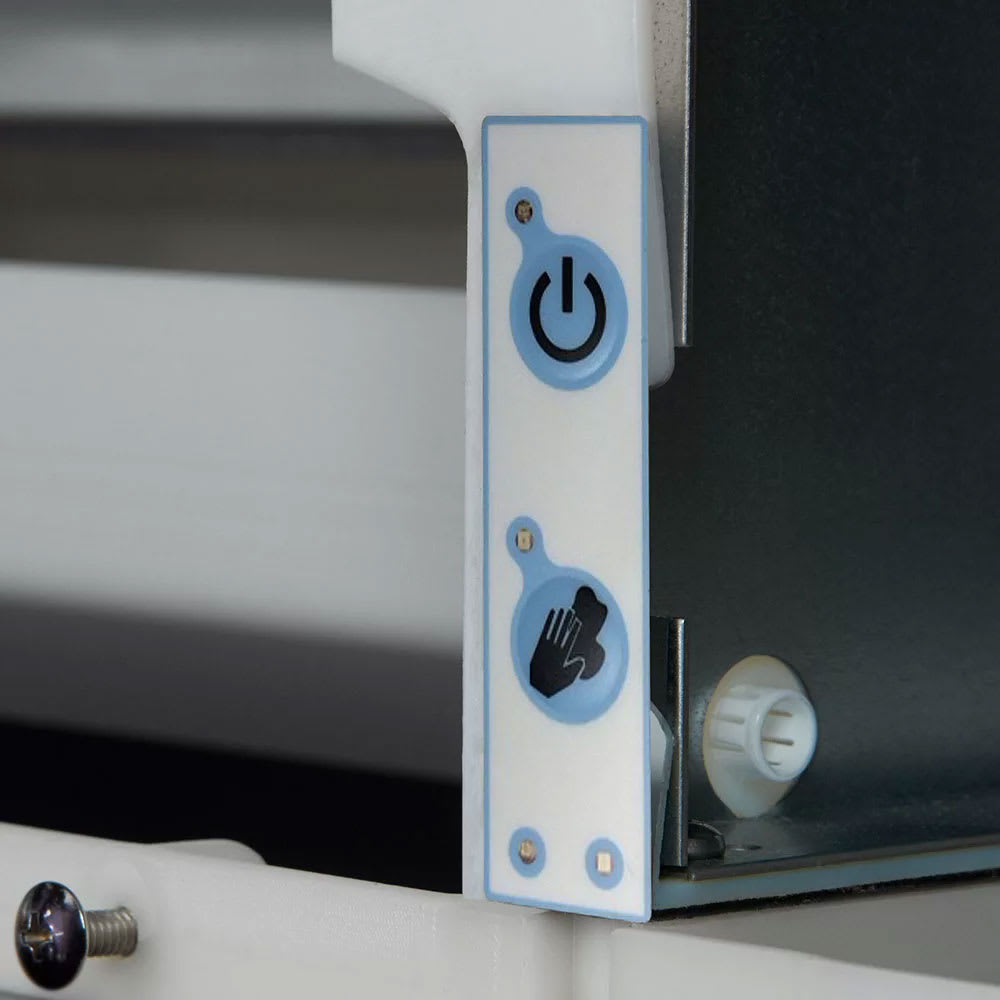

- 1-touch descaling and sanitizing optimizes performance
- Plastic food zone with warewasher-safe components
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 18,450-BTU heat transfer capacity
Dimensions & Utilities
- 30.25 in. W x 24.25 in. D x 26.90 in. H
- 8.5 A, 4.1 kW
- 208-230 V/60 Hz/3 ph
Elevation Series Modular Cube Ice Maker, water-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 994 lb production/24 hours at 70°/50° (927 lb at 90°/70°), full-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/3-ph, 8.5 amps, cULus, NSF, CE
