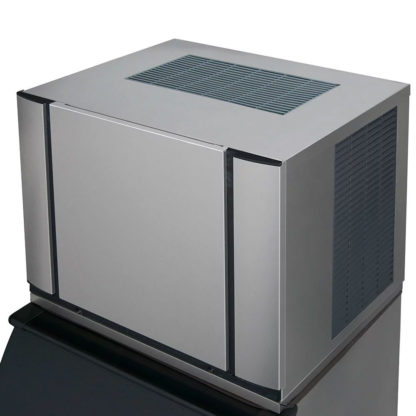

Ice-O-Matic CIM1136HW 30″ Elevation Series Half Cube Ice Machine Head – 968 lb/24 hr, Water Cooled, 208/230v/1ph

Suitable for high-volume operations, the Ice-O-Matic CIM1136H half-cube ice maker can produce a maximum of 968 pounds of ice per day in ideal environmental conditions. It produces half-size cubes, a type that is ideal for chilling sodas, cocktails, iced tea, and lemonade. To inhibit the growth of unsanitary mold, mildew, and bacteria, it’s protected with antimicrobial PURE ICE. Because this unit’s condenser is self-contained, it’s quick and simple to install.

The Ice-O-Matic CIM1136H ice machine head utilizes a dual-exhaust system to discharge air from the top and the side, enabling installation flexibility and reducing the risk of obstruction. One-touch controls for sanitizing and descaling simplify cleaning, and an LED display facilitates constant monitoring. This unit is water cooled and uses R404A refrigerant.

Product Details

• Part of the Elevation Series
• 968-lb. maximum daily ice production
• 855-lb. AHRI daily ice production
• Makes half-size cubes
• Cube size: ³/₈ in. x ⁷/₈ in. x ⁷/₈ in.
• Water cooled
• Self-contained condenser
• PURE ICE protection inhibits microbial growth
• Dual-exhaust system discharges air from side and top to enable increased installation possibilities

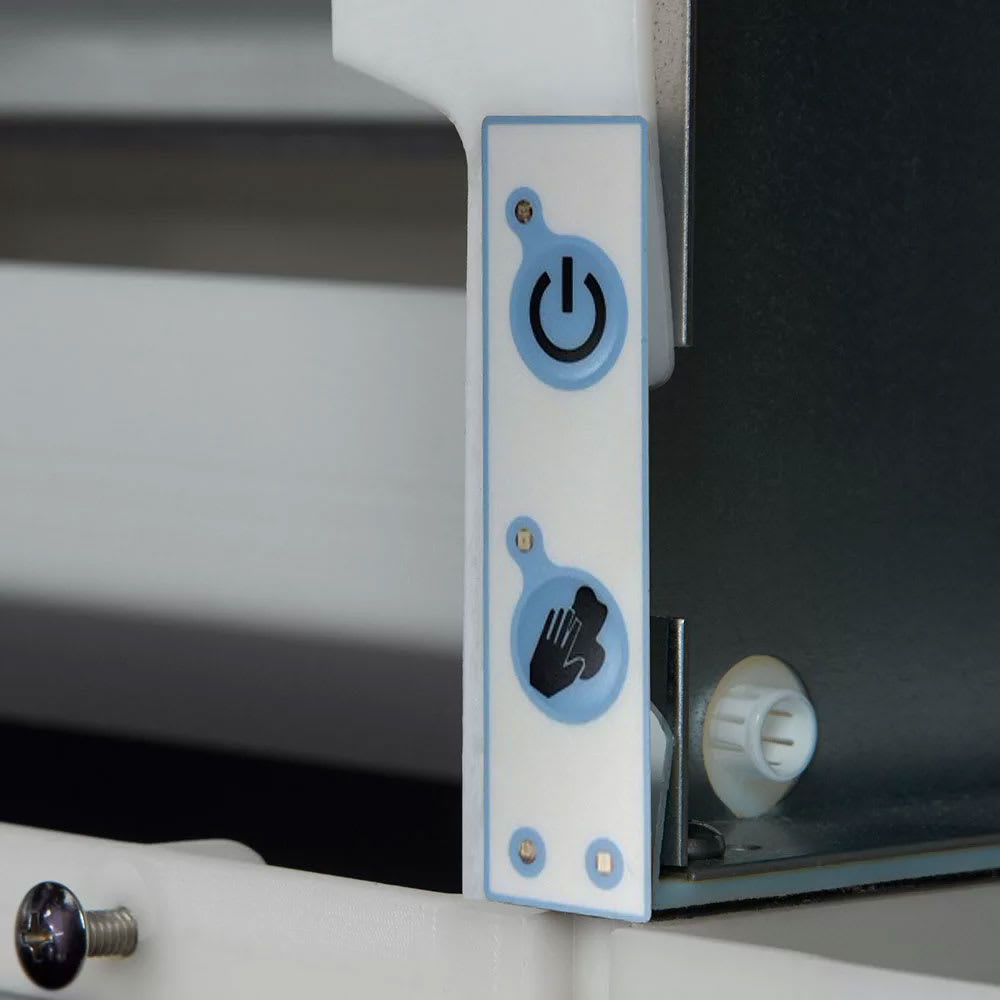

• Unit descales and sanitizes with 1 touch
• LED status display

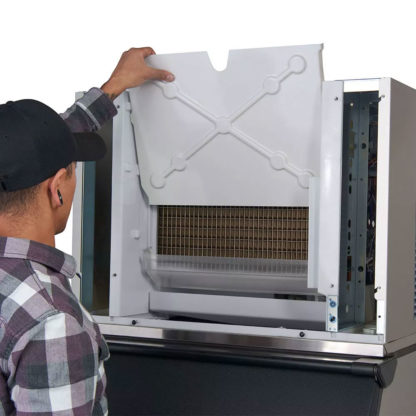

• Dishwasher-safe components in plastic food zone simplify cleaning
• Uses R404A refrigerant
• Ideal incoming water pressure: 20-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal ambient temperature range: 50-100 degrees F
• 18,200-BTU heat transfer capacity

Dimensions & Utilities

• 30.25 in. W x 24.25 in. D x 26.90 in. H
• 11.8 A, 4.1 kW
• 208-230 V/60 Hz/1 ph

Elevation Series Modular Cube Ice Maker, water-cooled, self-contained condenser, 30″ W, approximately 968 lb production/24 hours at 70°/50° (896 lb at 90°/70°), half-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 11.8 amps, cULus, NSF, CE
