Description
Ice-O-Matic CIM1136HR Description
To encourage routine and thorough cleaning, the Ice-O-Matic CIM1136HR half-cube ice maker features one-touch controls for sanitizing and descaling. Its plastic food zone can be quickly wiped clean, and its components can be removed and washed in a dishmachine. Using R404A refrigerant and a remote condenser, this unit can produce a maximum of 968 pounds of ice per day in ideal environmental conditions.
Enabling installation in a variety of settings, the Ice-O-Matic CIM1136HR ice machine head features a dual-exhaust system that discharges air from the top in addition to the side. It’s protected with PURE ICE‚Äîan antimicrobial agent that inhibits the formation of mold, mildew, and bacteria. Operators can monitor the unit’s status using its readable LED display.
Product Details
- Part of the Elevation Series
- 968-lb. maximum daily ice production
- 855-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- Remote condenser
- PURE ICE agent inhibits growth of bacteria and mold

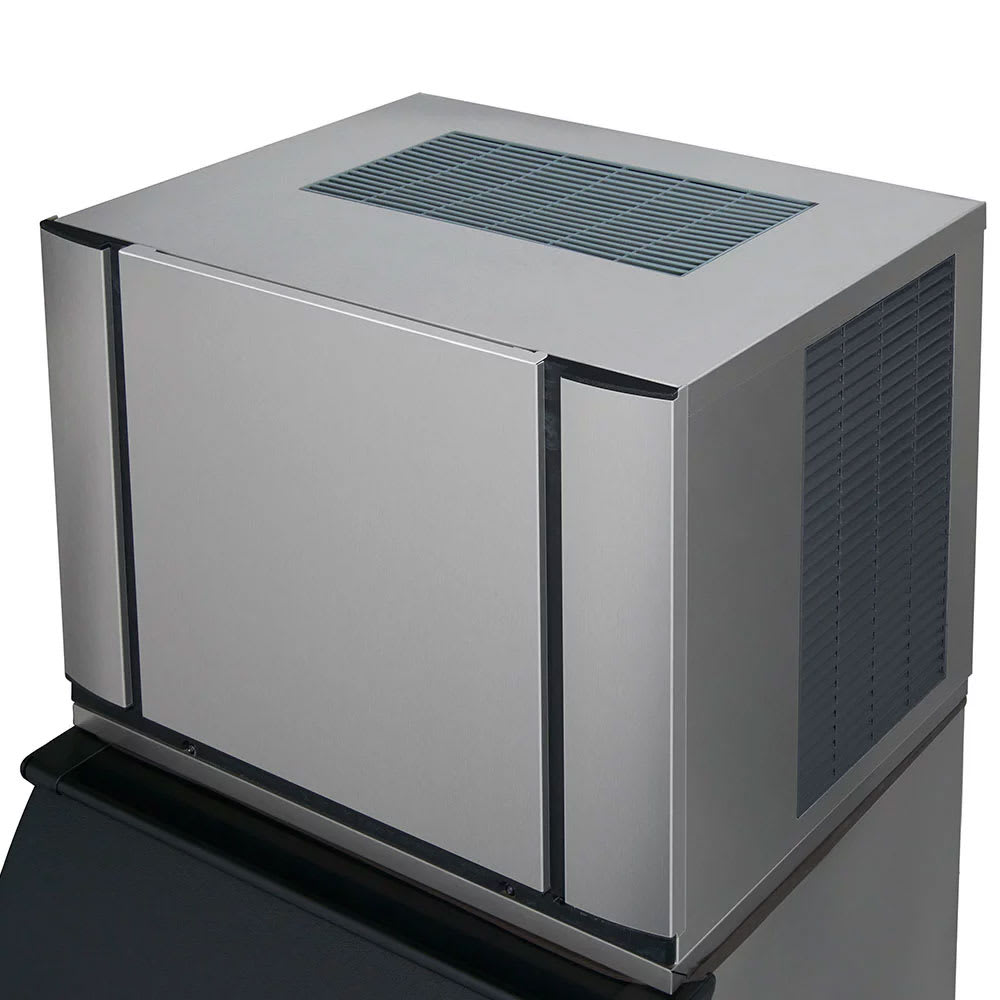

- Dual-exhaust discharge releases air from side and top

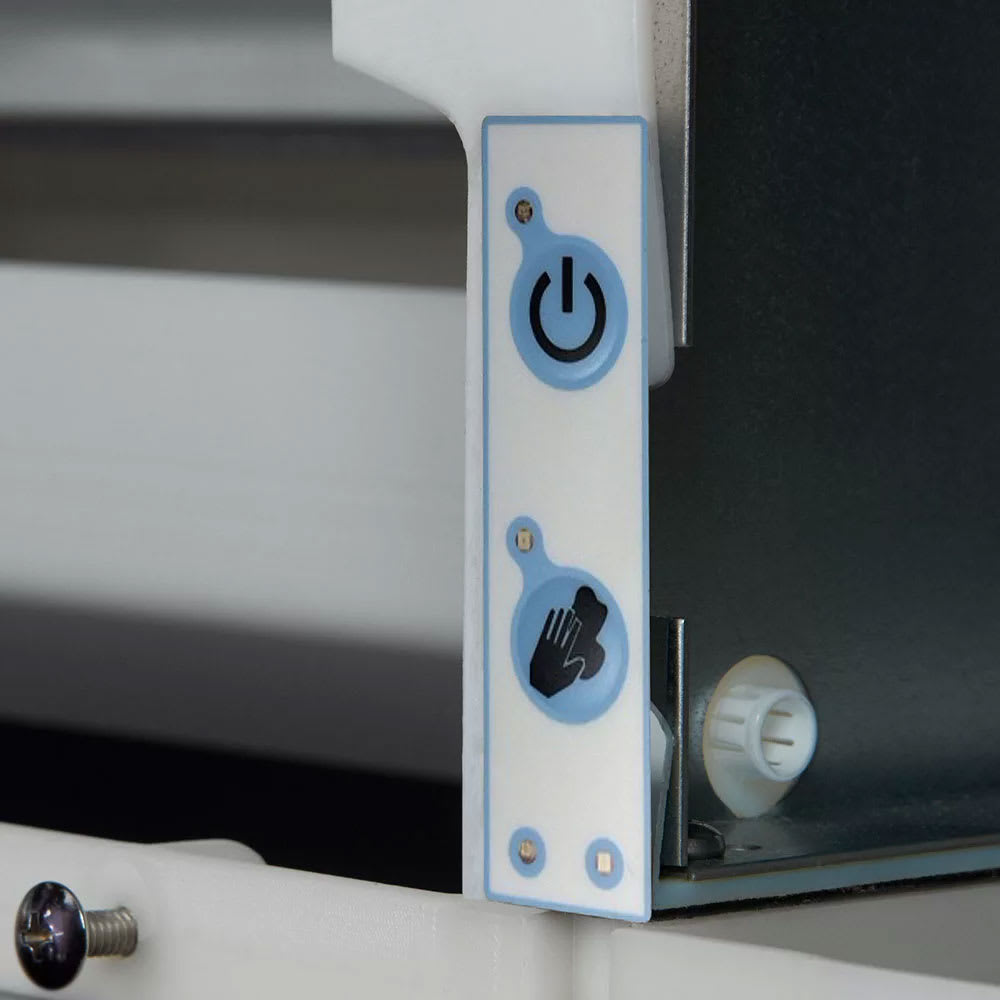

- 1-touch controls for sanitizing and descaling
- LED display alerts users of status updates

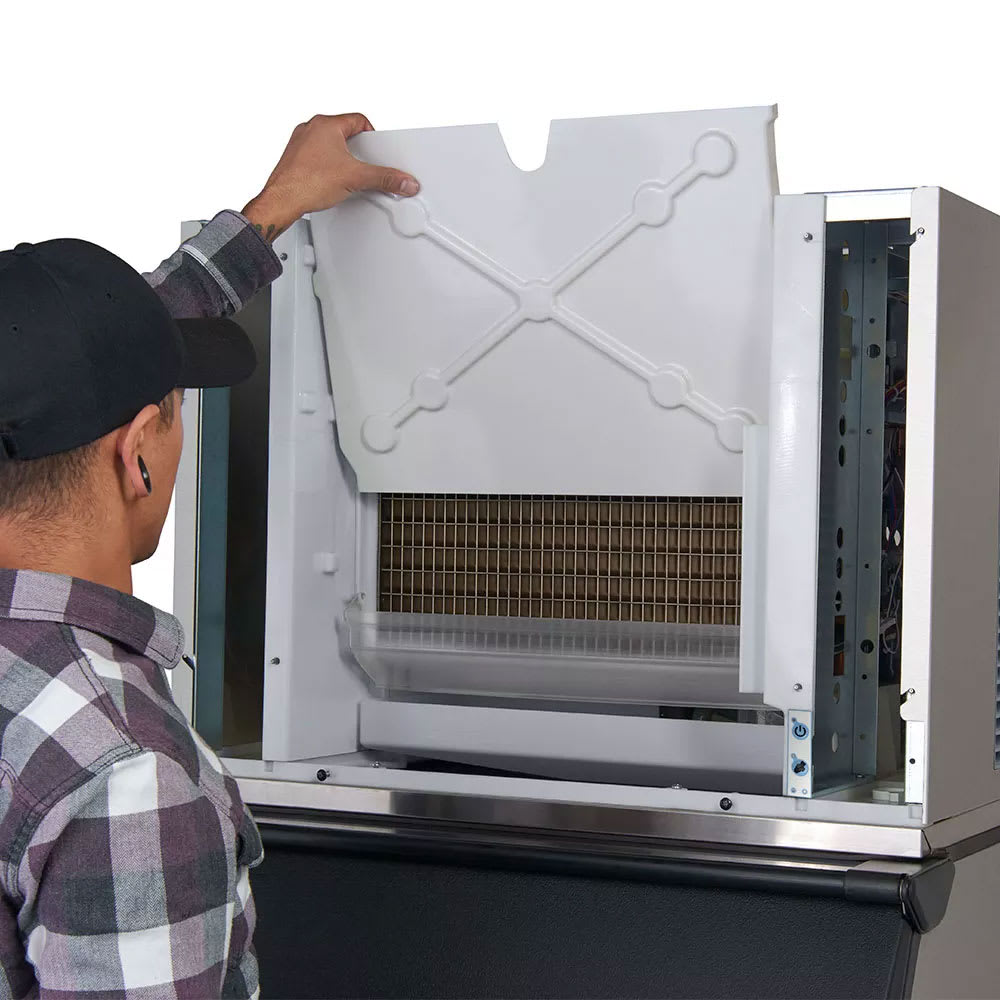

- Plastic food zone with dishmachine-safe components
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 18,200-BTU heat transfer capacity
Dimensions & Utilities
- 30.25 in. W x 24.25 in. D x 26.90 in. H
- 12.8 A, 5 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker, air-cooled, remote condenser, 30″ W, approximately 968 lb production/24 hours at 70°/50° (855 lb at 90°/70°), half-size cubes, Agion built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.8 amps, cULus, NSF, CE
