Description

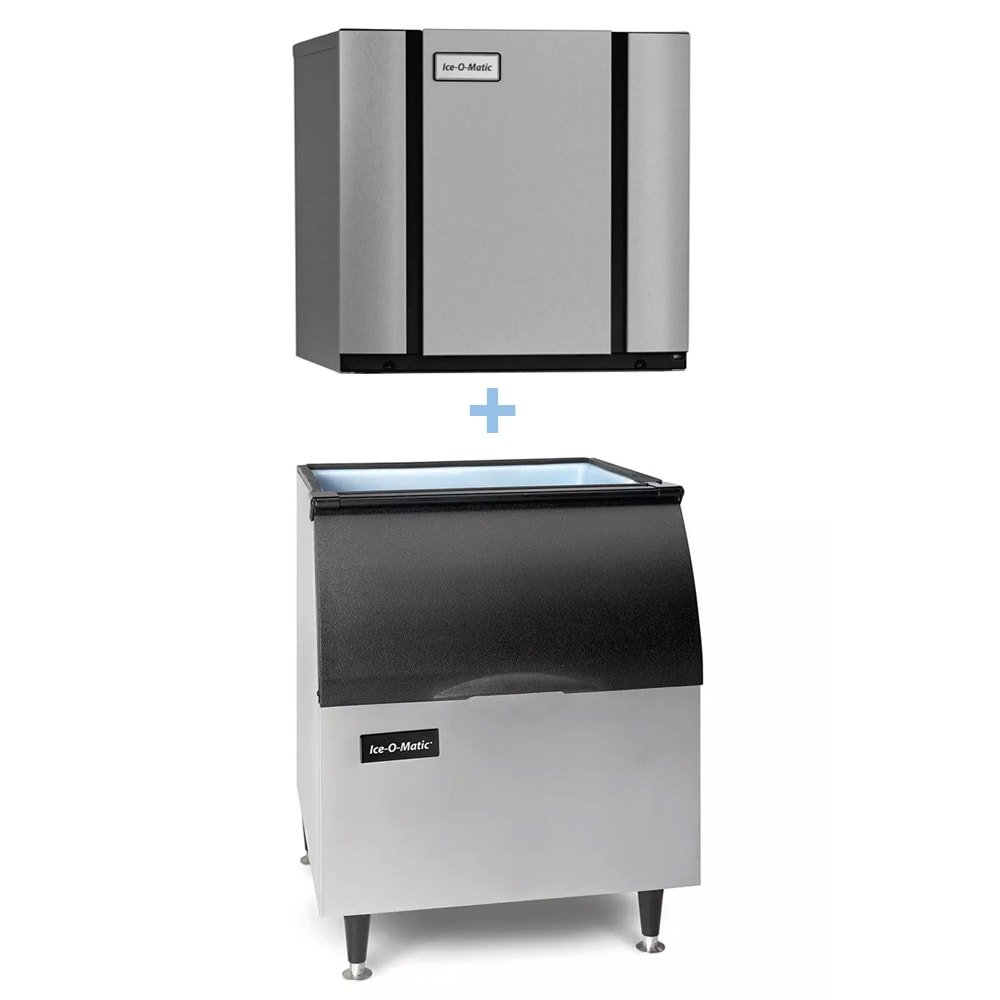

Ice-O-Matic CIM1136HA/B40PS
Depending on various environmental conditions, the Ice-O-Matic CIM1136HA/B40PS ice maker/bin combo can produce a maximum of 932 pounds of half-size cubed ice per day. It descales and sanitizes with the push of a button, and its plastic food zone is designed with dishwasher-safe components to further simplify cleaning. To inhibit the growth of harmful bacteria, mildew, and mold, it’s protected with a built-in antimicrobial agent.
Durable and corrosion resistant, the Ice-O-Matic CIM1136HA/B40PS ice machine’s bin features an aluminum exterior. Its interior is lined with polyethylene to optimize sanitation, and it’s insulated with foam to preserve ice for extended periods. This unit can accommodate as much as 344 pounds of ice, which users can access through a top-hinged, sloped front door.
Ice Maker Details
- Part of the Elevation Series
- 932-lb. maximum daily ice production
- 762-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Plastic food zone equipped with dishwasher-safe components
- LED display provides status updates
- 1-touch descaling and sanitizing streamlines cleanup
- Treated with antimicrobial PURE ICE
- Air cooled
- Dual-exhaust discharge releases air from top and side
- Self-contained condenser
- Uses R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 18,200-BTU heat transfer capacity
Product Features

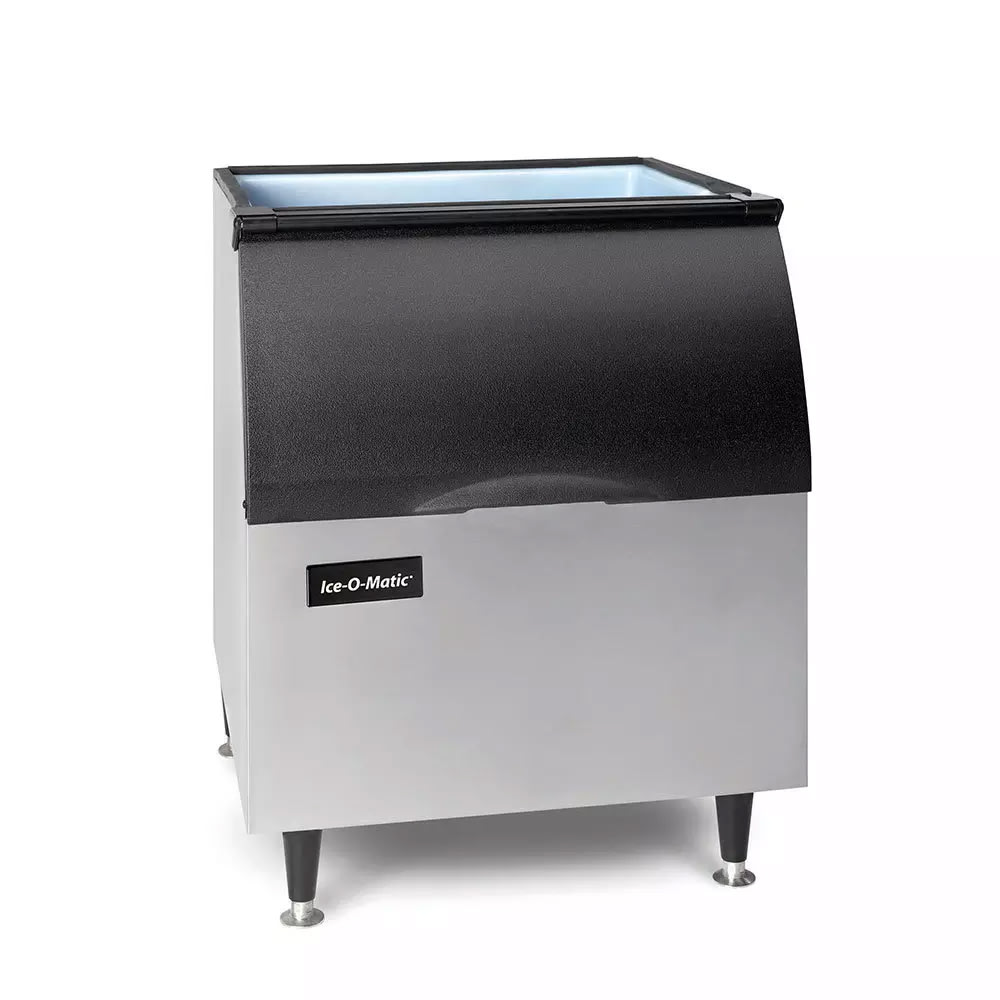

Ice Bin Details
- 344-lb. application capacity
- Corrosion-resistant aluminum exterior
- Polyethylene interior liner
- Insulated with foam to preserve ice
- Top-hinged, sloped front door
- Mounted on 6-in. legs
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 30 in. W x 31 in. D x 37.5 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE; Ice Bin: 344 lb storage capacity, 30″W x 31″D x 37-1/2″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
