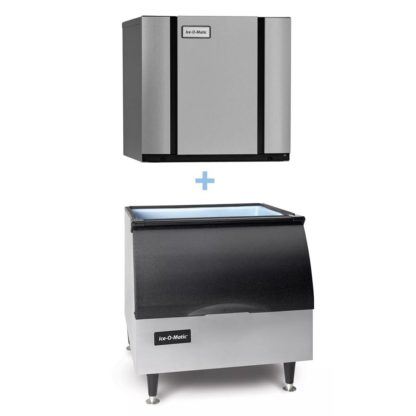

Ice-O-Matic CIM1136HA/B25PP
The Ice-O-Matic CIM1136HA/B25PP ice maker/bin combo is an air-cooled unit featuring a self-contained condenser to streamline installation. It produces half-size cubes at a maximum rate of 932 pounds per day in optimal conditions, and it uses an LED display to alert users of operational updates. To encourage routine, thorough cleaning, it features one-touch controls for descaling and sanitizing as well as dishwasher-safe components in the food zone.
To extend the life of stored ice, the Ice-O-Matic CIM1136HA/B25PP ice machine’s included bin is insulated with foam. Its polyethylene interior liner resists corrosion and can be wiped clean, while its rotocast exterior is durable and long lasting. This unit is supported by 6-inch legs and can accommodate as much as 242 pounds of ice.
Ice Maker Details
- Part of the Elevation Series
- 932-lb. maximum daily ice production
- 762-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Plastic food zone can be wiped clean
- Components in food zone are dishwasher safe
- LED display alerts users of operational status
- Descales and sanitizes with 1-touch controls
- PURE ICE antimicrobial agent is built in
- Air cooled
- Dual-exhaust system enables installation flexibility
- Self-contained condenser
- Cools with R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 18,200-BTU heat transfer capacity
Product Features

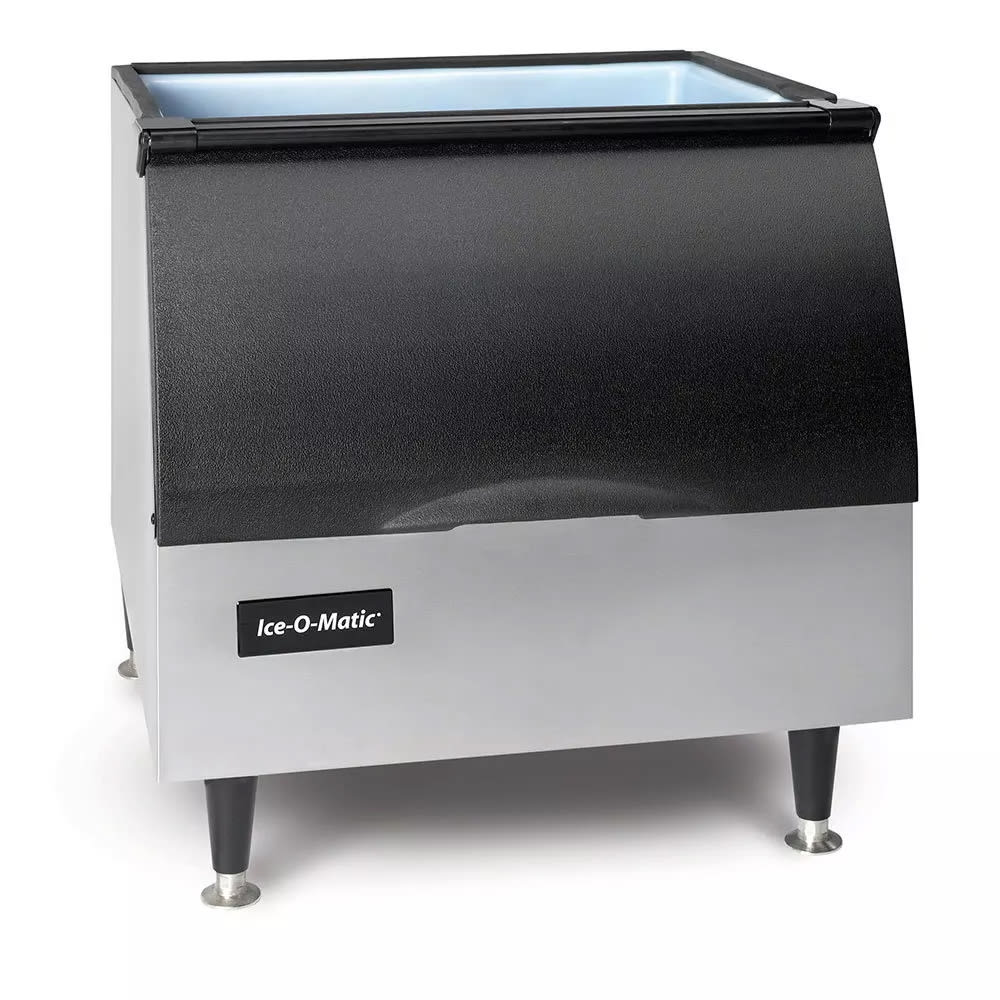

Ice Bin Details
- 242-lb. application capacity
- Sturdy rotocast exterior
- Foam insulation slows melting ice
- Top-hinged, sloped front door
- Supported with 6-in. legs
- Interior lined with sanitary polyethylene
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 30 in. W x 31 in. D x 28 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE; Ice Bin: 242 lb storage capacity, 30″W x 31″D x 28″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, rotocast exterior finish, 6″ legs, NSF
