Description
Ice-O-Matic CIM1136HA/B1600-60
To reduce the risk of obstructed exhaust, the Ice-O-Matic CIM1136HA/B1600-60 ice maker/bin combo utilizes a dual-exhaust system that discharges air from the top as well as the side. Its plastic food zone is free of crevices that could harbor dust and debris, and its PURE ICE protection inhibits the growth of microbes, such as mold and bacteria. An LED display keeps users aware of the unit’s status, and one-touch controls descale and sanitize the components. Its condenser is self-contained, making it fast and simple to install.
The Ice-O-Matic CIM1136HA/B1600-60 ice machine’s accompanying bin is constructed of stainless steel‚Äîa durable metal that can withstand rigorous use without rusting, denting, or scratching. Suitable for high-volume applications, it can hold as much as 1,660 pounds and employs a first-in, first-out management system to ensure ice remains fresh. Its polyethylene interior liner streamlines cleaning and resists corrosion, and its ice shield controls flow to reduce the risk of spills.
Ice Maker Details
- Part of the Elevation Series
- 932-lb. maximum daily ice production
- 762-lb. AHRI daily ice production
- Makes half-size cubes
- Cube size: 3/8 in. x 7/8 in. x 7/8 in.
- Plastic food zone won’t harbor debris
- Components in food zone are dishwasher safe
- LED status display
- 1-touch controls for sanitizing and descaling
- PURE ICE antimicrobial inhibits growth of bacteria and mold
- Air cooled
- Dual-exhaust system enables installation flexibility
- Self-contained condenser
- Cools with R404A refrigerant
- Ideal incoming water pressure: 20-80 PSIG
- Ideal incoming water temperature: 40-100 degrees F
- Ideal ambient temperature range: 50-100 degrees F
- 18,200-BTU heat transfer capacity
Product Features

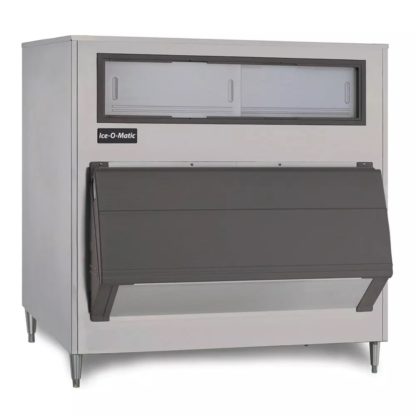

Ice Bin Details
- 1,660-lb. application capacity
- Stay-open door facilitates 1-handed operation
- Ice shield controls flow to reduce spills
- Made of rust- and scratch-resistant stainless steel
- First-in, first-out management system optimizes ice freshness
- Corrosion-resistant polyethylene interior liner
Dimensions & Utilities
- Ice maker: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 60 in. W x 31 in. D x 65 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE; Ice Bin: 1660 lb storage capacity, 60″W x 31″D x 65″H, stainless steel construction, first in first out ice management, corrosion resistant Poly Liner, heavy duty “stay open” door for easy one hand access, ice shield controls flow & reduces spills, NSF
