Description

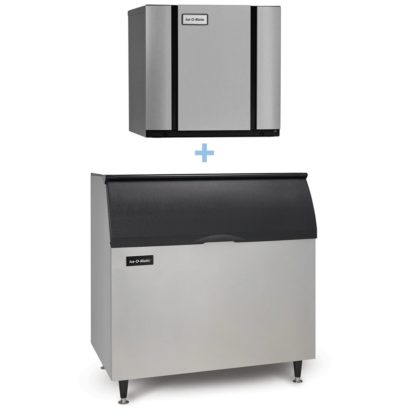

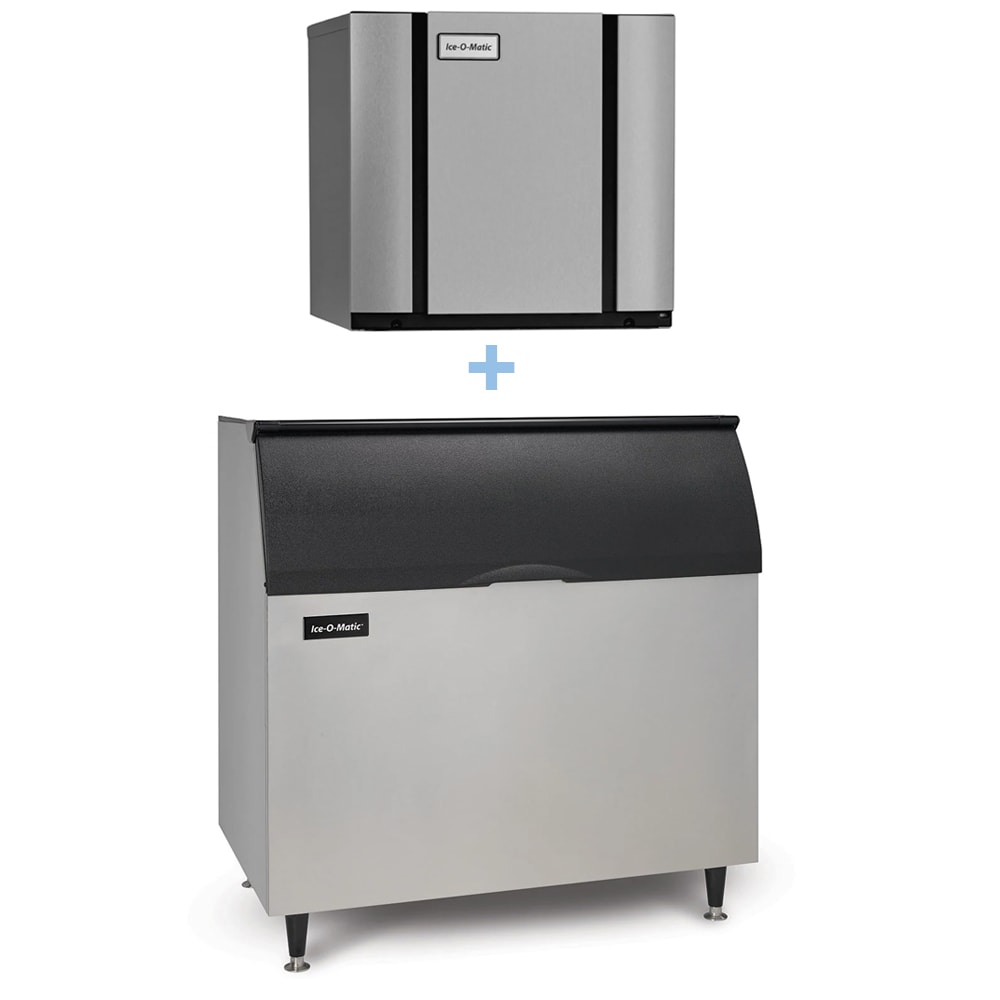

Ice-O-Matic CIM1136HA/B110PS
Designed with a durable, stay-open door, the Ice-O-Matic CIM1136HA/B110PS ice maker’s bin enables one-handed use for quick access during peak periods. For enhanced strength and resistance to damage from scuffs, scratches, and dents, the bin’s exterior is constructed of stainless steel; inside, it has a poly liner to resist corrosion and contain ice. The ice shield controls the flow of ice, reducing the risk of spills and subsequent slipping hazards .
The Ice-O-Matic CIM1136HA/B110PS modular cube ice maker with bin is constructed with a dual-exhaust system that disperses heat from the top and side of the unit, providing various installation opportunities with a low risk of overheating. To facilitate cleanup, the internal food zone components can be removed and washed in a dishmachine. Some components are also recyclable.
Ice Machine Details
- Part of the Elevation Series
- 932-lb. maximum daily ice production
- 762-lb. AHRI-certified daily ice production
- Full-size ice cubes
- Cube dimensions: 7/8 in. x 7/8 in. x 7/8 in.
- Air cooled
- Self-contained condenser doesn’t require external modifications
- Heat dispersed through dual exhaust
- Recyclable components reduce environmental impact
- Plastic food zone is smooth to resist harboring bacteria
- Protected by PURE ICE antimicrobial
- Smart LED light alerts operators when cleaning is required
- 1-touch activation for descaling and sanitizing
- Removable parts are BPA-free and warewasher safe
- Dual-exhaust system
- Universal Smart Harness streamlines setup and configuration
- LED display optimizes visibility
- Ideal ambient temperature: 50-70 degrees F
- Ideal water pressure: 20-80 PSIG
- 18,200-BTU heat transfer capacity
Product Features
Ice Bin Details
- 854-lb. storage capacity
- Poly bin liner is foam insulated for ice preservation
- Sturdy, 6-in. legs can be adjusted
- Strong aluminum finish
- Sloped front
Dimensions & Utilities
- Ice machine head: 30.25 in. W x 24.25 in. D x 26.90 in. H
- Ice bin: 48 in. W x 31 in. D x 50 in. H
- 12.2 A, 5.1 kW
- 208-230 V/60 Hz/1 ph
Elevation Series Modular Cube Ice Maker w/ Bin, air-cooled, self-contained condenser, dual exhaust top/side air discharge, 30″ W, approximately 932 lb production/24 hours at 70°/50° (762 lb at 90°/70°), half-size cubes, PURE ICE built-in antimicrobial protection, LED status display, one touch sanitize/descaling controls, dishwasher safe food zone components, 208-230v/60/1-ph, 12.2 amps, cULus, NSF, CE; Ice Bin w/ Filler Panels: 854 lb storage capacity, 48″W x 31″D x 50″H, top-hinged, slope front door, for top-mounted ice maker, polyethylene interior, durable stainless finish exterior, 6″ legs, NSF
